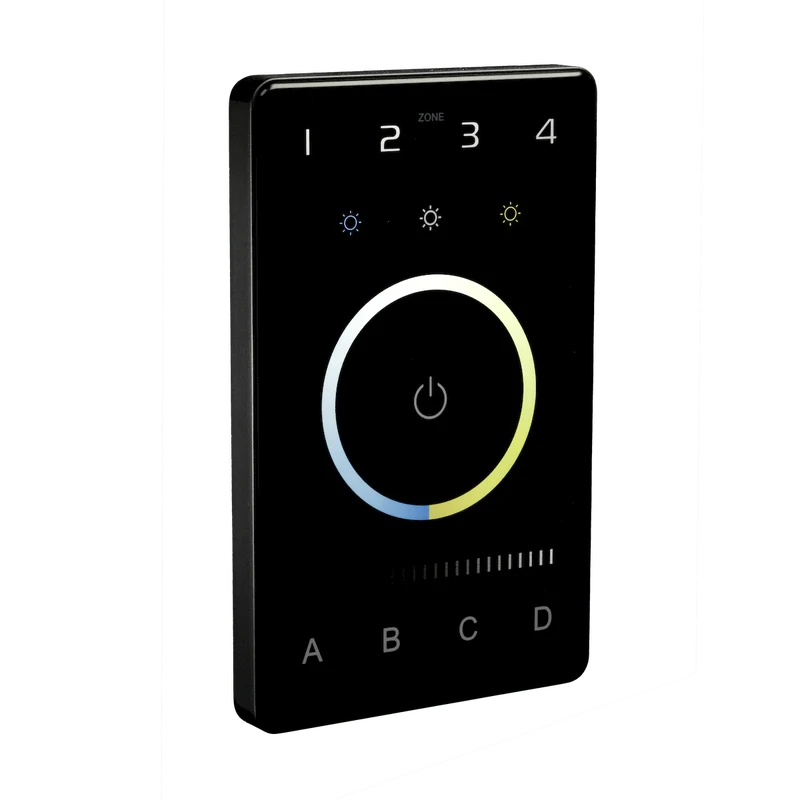

DMX Tunable White Wall Control
SKU
PLX-WALL-DMXB-TW-4Z
Finely control your tunable CCT lights with the sleek, easy to use in-wall DMX Wall Control, and create white lighting schemes to match your style or circadian rhythm. Programmable shortcuts with four zone control coupled with DMX decoders and transceivers compatablilty makes this controller versatile and ideal for many applications. Readily installable and designed to complement any interior design, the Tunable White DMX Wall Controller allows for ultimate lighting system control capability in superior style.
CCT shortcuts: cool white, neutral white, warm white
4 zone and 4 scene keys for easy control
CCT tough circle and dimming slider bar
Fits single gang junction box
Works with DMX decoders and wireless DMX
transceiver
Performance
Input Voltage
12-24V DC
Output Frequency
DMX
Temperature Range
-20C (-4F) to 55C (131F) degrees
Dimming
DMX 1 -100%
Finish
Black
Control
DMX
Physical
Weight
0.75 lbs
Width
1.15 Inch
Length
2.96 Inch
Height
4.75 Inch
Certification
Safety Rating
UL Listed
Location Rating
Dry
Indoor
Y
ROHS
Y
FCC
Y
Item Number | Length | Input Voltage | UOM |
---|---|---|---|
PLX-WALL-DMXB-TW-4Z | 2.96 Inch | 12-24V DC | Each |
Specification Sheets
DMX Tunable White Wall ControlInstruction Manuals
