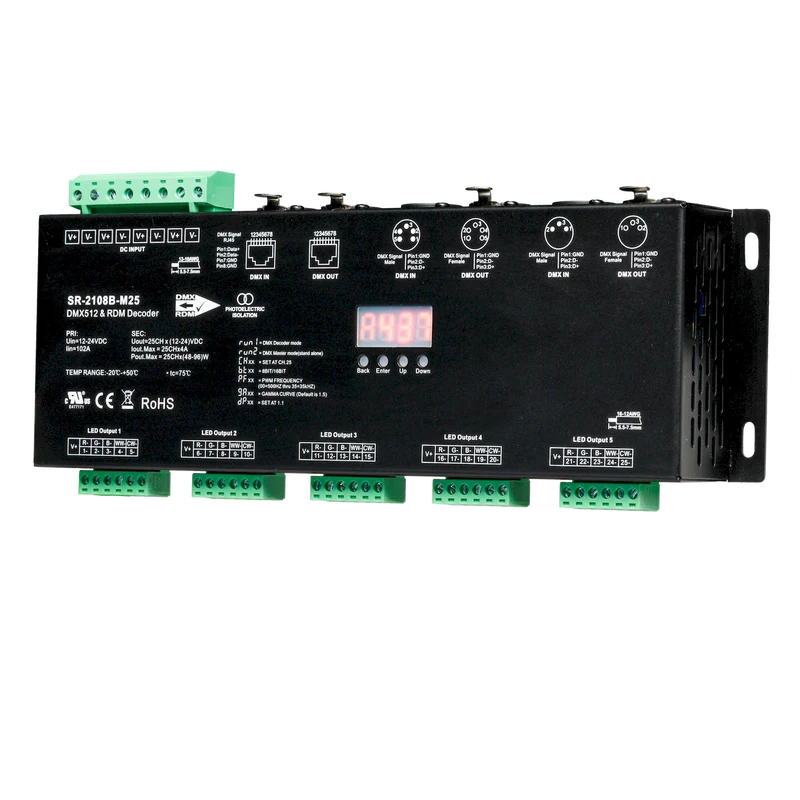

DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections

SERIES
PLX-DEC-DMX-RJ45-5X5CH
5X5 Channel DMX signal receiver/decoder for use with DMX controllers and low-voltage lighting. • RJ45, XLR3, or XLR5 • 8 Bit or 16 bit PWM output resolution ratio • 25 total PWM output channels (5 ports x 5 channels) • Multi-Group DMX RGBW channel control • Up to 25 channel max *See drawings on next page* • 0.1 - 9.9 Gamma value output dimming curve range • Metal housing with digital display • Requires master DMX controller and 12-24V DC input for operation (Sold separately)
DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections
DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections

Performance

Input Voltage
12-24V DC
Output Voltage
12-24V DC
Temperature Range
-20C (-4F) to 50C (122F) degrees
Dimming
DALI
Control
DMX

Physical

Weight
2.53 lbs

Certification

Safety Rating
cURus Recognized
ROHS
Y
Item Number Input Voltage UOM
PLX-DEC-DMX-RJ45-5X5CH 12-24V DC Each
