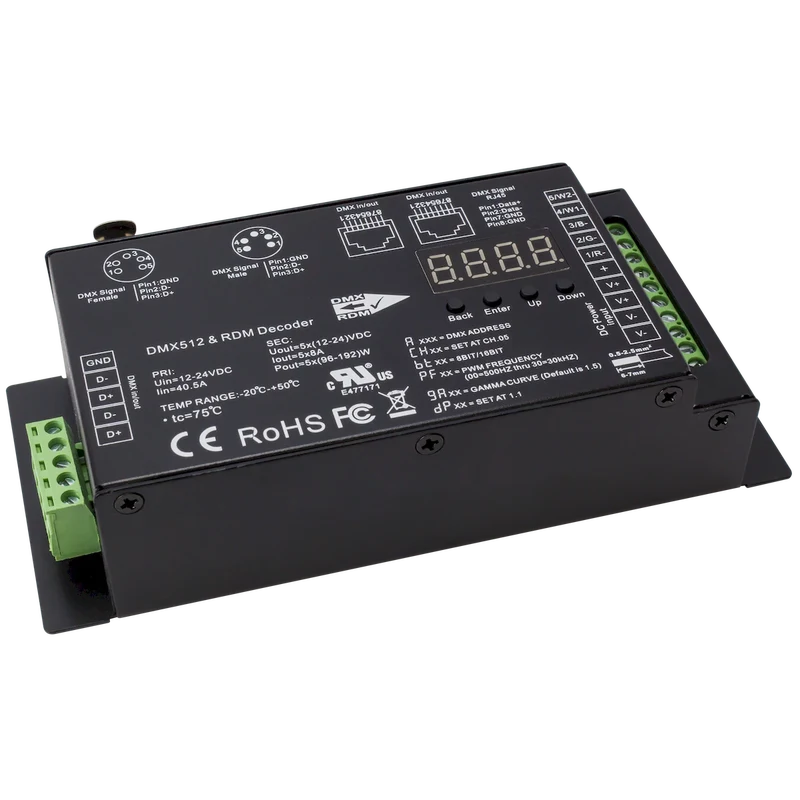

5-Channel DMX Decoder w/RJ45

SERIES
PLX-DECRJ45-DMX-5CH
The DMX 5-Channel Decoder translates DMX signals into the PWM control signal used by RGB LED lights, and allows for flawless integration into new and existing DMX installations. Using the 5-channel DMX receiver, you are no longer limited to just DMX fixtures, seamlessly integrate color changing neon or tape light with ease for temporary or permanent applications. 5-channel capable output (8A per channel max) Compatible with single color, tunable, and RGB based neon or tape light Features easy to use RJ45, XLR5, or direct wire DMX inputs and outputs Link multiple receivers for larger installs required separate addresses 8 bit or 16 bit PWM output resolution ratio Requires 12-24V DC input and DMX controller for operation
5-Channel DMX Decoder w/RJ45
5-Channel DMX Decoder w/RJ45

Performance

Input Voltage
12-24V DC
Output Voltage
12-24V DC
Input Frequency
DMX
Output Frequency
RGBCW
Wattage
192 W
Temperature Range
-20C to 50C degrees
Dimming
DMX
Finish
Black

Physical

Weight
0.90 lbs
Width
2.9 Inch
Length
6.5 Inch
Height
1.468 Inch

Certification

Safety Rating
cURus Recognized
Location Rating
Dry
Indoor
Y
ROHS
Y
FCC
Y
Item Number Length Input Voltage Wattage UOM
PLX-DECRJ45-DMX-5CH 6.5 Inch 12-24V DC 192 W Each
