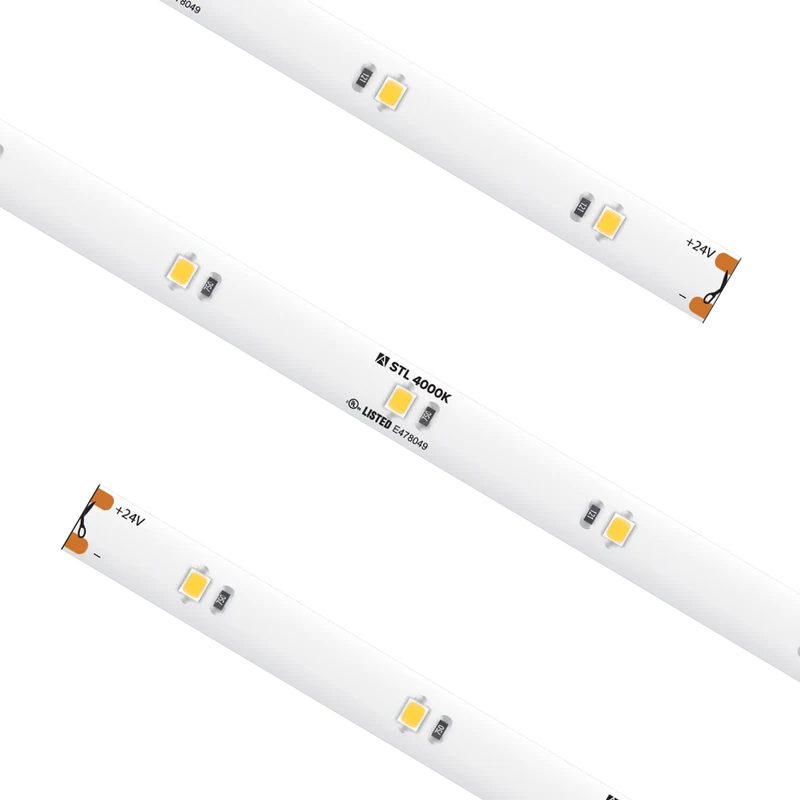

Standard Grade Tape Light Static White
SERIES
C-PLX-STL
Build an economical and versatile layered lighting system with Standard Grade tape light. Light output ranging from 105-155 lumens per foot, with easy to work with run lengths up to 32.8 feet, Standard Grade is perfect for accent lighting applications when soft and subtle lighting is desired.
- Excellent color rendering (96+ CRI)
- 105-155 lumens per foot performance
- Consuming only 2.19 watts per foot
- Dimmable with most electronic low voltage (ELV) dimmers
- Run lengths up to 32.8 feet (24V DC)
- Available in (IP54) unjacketed and (IP65) jacketed versions
- Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
- Indoor dry/damp, and wet locations
- JA8 Compliant
- 50,000 hours rated life
Performance
Input Voltage
24V DC
CCT
2700K / 3000K / 4000K
Wattage
2.19W/ft
Optics (Degree)
120 degrees
CRI
90+
Cut Increment
6.94 Inch
Max Run
32.8ft
Rated Life (Hr)
50,000 Hours
Temperature Range
5°C (41°F) to 70°C (158°F)
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers
Lumens
155Lm/ft
Certification
Safety Rating
cULus Listed
Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
---|---|---|---|---|---|---|---|---|---|
PLX-STL54-27K-24V-16 | 16.4 Foot | 24V DC | 2700K | 96+ | 2.19 W/ft | 146 | 32.8 ft | IP54 | Each |
PLX-STL65-27K-24V-16 | 16.4 Foot | 24V DC | 2700K | 94+ | 2.19 W/ft | 105 | 32.8 ft | IP65 | Each |
PLX-STL54-30K-24V-16 | 16.4 Foot | 24V DC | 3000K | 96+ | 2.19 W/ft | 150 | 32.8 ft | IP54 | Each |
PLX-STL65-30K-24V-16 | 16.4 Foot | 24V DC | 4000K | 94+ | 2.19 W/ft | 125 | 32.8 ft | IP65 | Each |
PLX-STL54-40K-24V-16 | 16.4 Foot | 24V DC | 4000K | 96+ | 2.19 W/ft | 155 | 32.8 ft | IP54 | Each |
PLX-STL65-40K-24V-16 | 16.4 Foot | 24V DC | 4000K | 94+ | 2.19 W/ft | 115 | 32.8 ft | IP65 | Each |
PLX-STL54-27K-24V-33 | 32.8 Foot | 24V DC | 2700K | 96+ | 2.19 W/ft | 146 | 32.8 ft | IP54 | Each |
PLX-STL54-30K-24V-33 | 32.8 Foot | 24V DC | 3000K | 96+ | 2.19 W/ft | 150 | 32.8 ft | IP54 | Each |
PLX-STL54-40K-24V-33 | 32.8 Foot | 24V DC | 4000K | 96+ | 2.19 W/ft | 155 | 32.8 ft | IP54 | Each |
PLX-STL54-27K-24V-100 | 100 Foot | 24V DC | 2700K | 96+ | 2.19 W/ft | 146 | 32.8 ft | IP54 | Each |
PLX-STL54-30K-24V-100 | 100 Foot | 24V DC | 3000K | 96+ | 2.19 W/ft | 150 | 32.8 ft | IP54 | Each |
