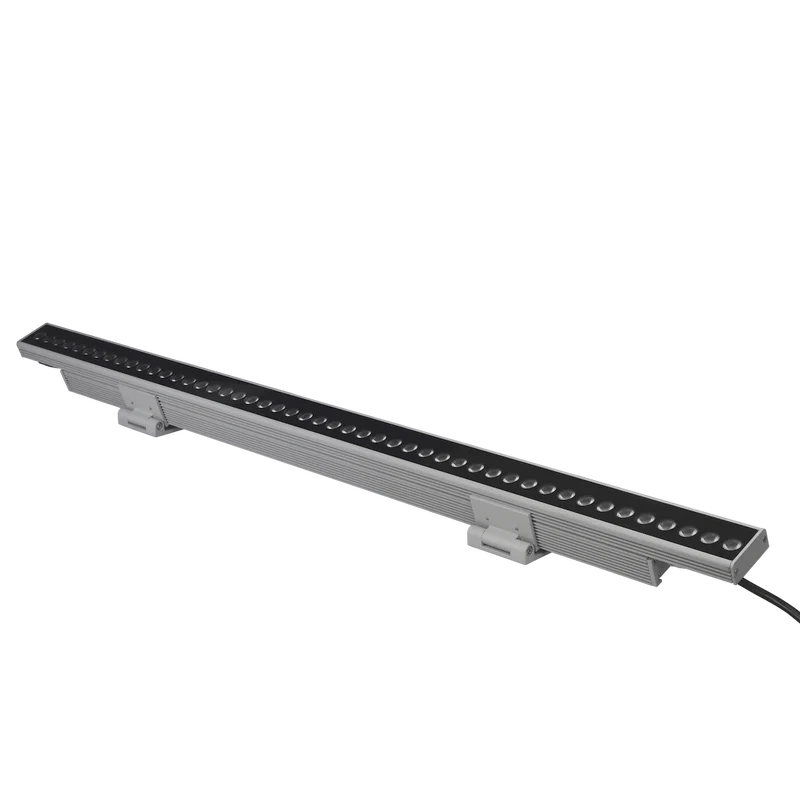

Senik Graze Lit 3000K 1Ft 35 Optic

SERIES
PLX-WGL-30K-1-35-SA
S?nik Graze L?t Static White 3000K, 12", 35D optic, 100-277V, proprietary mounting bracket (SA finish). Lead wire 12� to end of connector, tail wire 4� to end of connector. Satin Aluminum (RAL9006) housing finish. 0-10V
Senik Graze Lit 3000K 1Ft 35 Optic
Senik Graze Lit 3000K 1Ft 35 Optic

Performance

Input Voltage
100-277V AC
Wattage
12 W
CCT
3000K
CRI
80+
Lumens
1065
Max Run
70/196 units
Optics (Degree)
35 degrees
Rated Life (Hr)
70,000 Hours
Temperature Range
-40C (-40F) to 50C (122F) degrees
Dimming
0-10V 5-100%
Finish
Satin Aluminum
Quantity
12

Physical

Weight
3.33 lbs
Length
1 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP66
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-WGL-30K-1-35-SA 1 Foot 100-277V AC 3000K 80+ 12 W 1065 70/196 units IP66 Each
