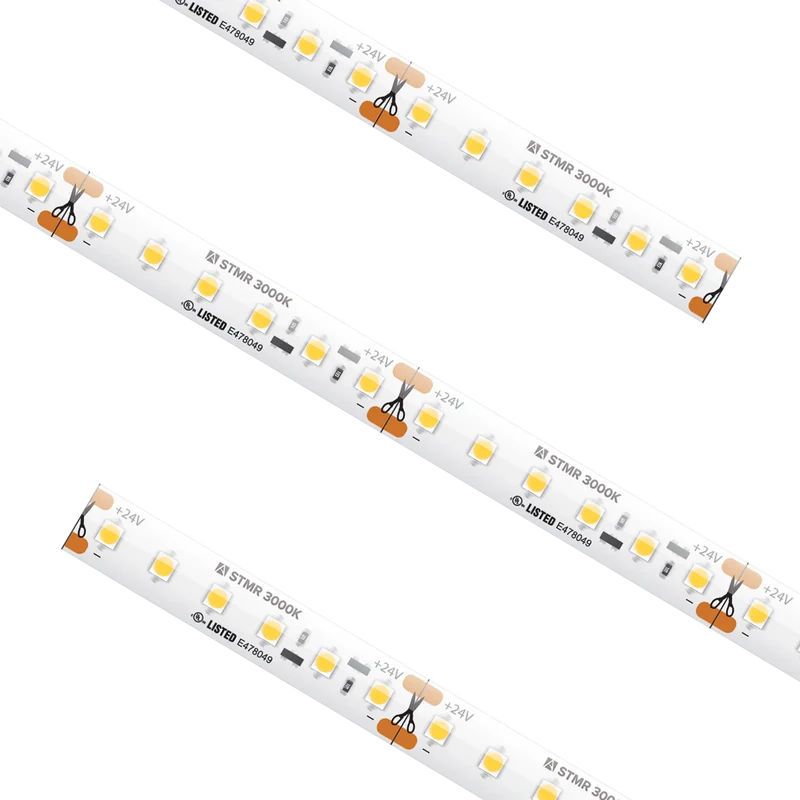

Standard Tape Light IP54 3000K Max Run 65.6Ft

SKU
PLX-STM54-30K-24V-65
20M Reel LED Tape Light, 20M max run, 3000K, 24V DC, 1.47w/ft, 110lm/ft, W/3 TL-CONKIT: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE
Add to Compare
Standard Tape Light IP54 3000K Max Run 65.6Ft
Standard Tape Light IP54 3000K Max Run 65.6Ft

Performance

Input Voltage
24V DC
Wattage
1.47 W/ft
CCT
3000K
CRI
90+
Lumens
110
Cut Increment
1.97 in
Max Run
65.6 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.33 Inch

Physical

Weight
2.00 lbs
Length
65.6 Foot
Ordering Information
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run UOM
PLX-STM54-30K-24V-65 65.6 Foot 24V DC 3000K 90+ 1.47 W/ft 110 65.6 ft Each
