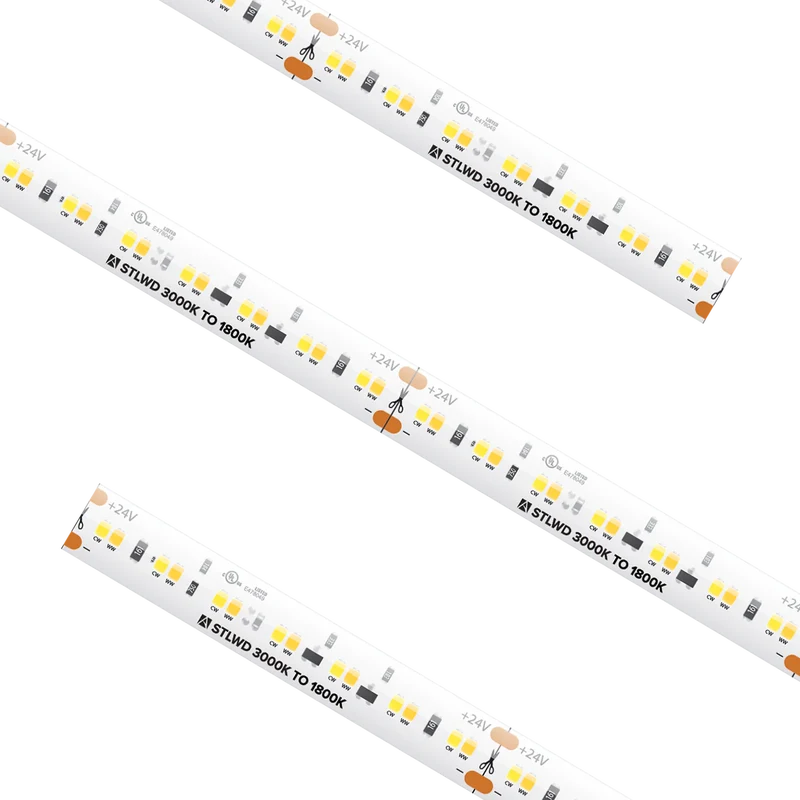

Standard Tape Light IP54 Warm Dim Custom Cut

SERIES
PLX-STLWD54-3018-24V-CC
Custom Cut Standard Grade High Density Warm to Dim Tape Light via TRIAC/ELV/CL 1800K (5%)-3000K (100%) Range, 2.93w/ft, 262lm/ft
Standard Tape Light IP54 Warm Dim Custom Cut
Standard Tape Light IP54 Warm Dim Custom Cut

Performance

Input Voltage
24V DC
Wattage
3 W/ft
CCT
1800K-3000K
CRI
90+
Lumens
262
Cut Increment
3.94 in
Max Run
20 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.35 Inch

Physical

Weight
0.06 lbs
Length
Custom Cut

Certification

Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-STLWD54-3018-24V-CC Custom Cut 24V DC 1800K-3000K 90+ 3 W/ft 262 20 ft IP54 Foot
