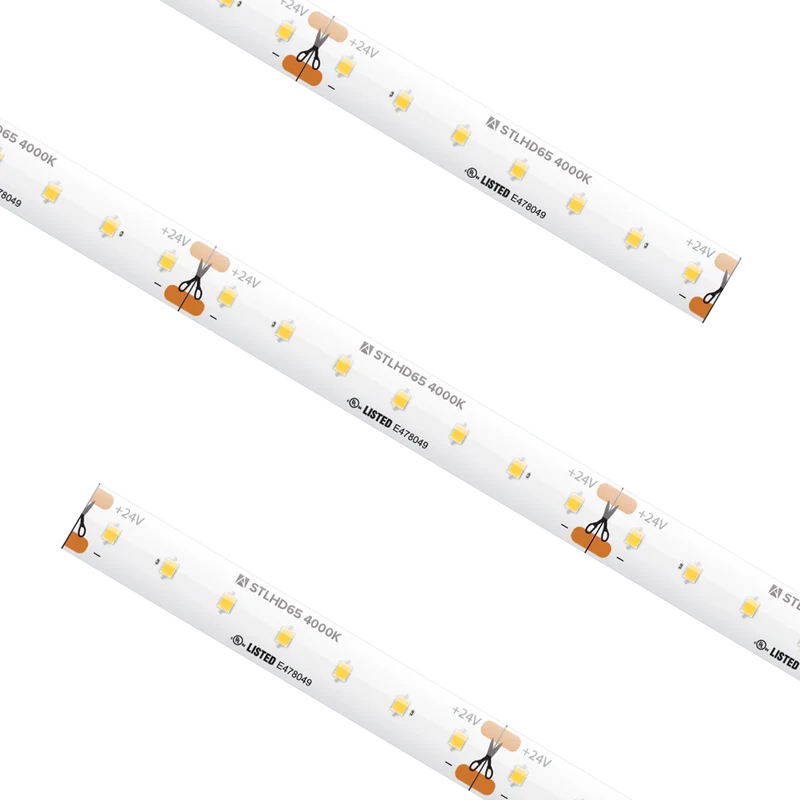

Standard High Density Tape Light IP65 4000K Custom Cut
SKU
PLX-STLHD65-40K-24V-CC
Custom Cut STLHD Tape Light, IP65, 2.46" cut increment, 4000K, 2.19W/ft
Performance
Input Voltage
24V DC
Input Frequency
60Hz
Wattage
2.19 W/ft
CCT
4000K
CRI
90+
Lumens
225
Cut Increment
2.46 in
Max Run
32.8 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.35 Inch
Physical
Weight
0.03 lbs
Certification
Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PLX-STLHD65-40K-24V-CC | 24V DC | 4000K | 90+ | 2.19 W/ft | 225 | 32.8 ft | IP65 | Foot |
