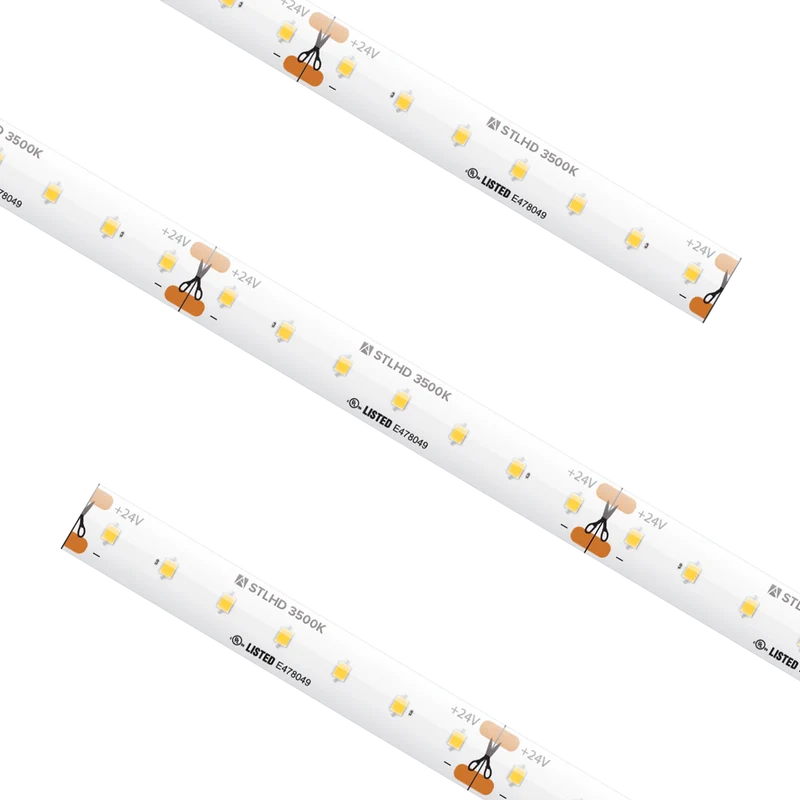

Standard High Density Tape Light IP54 3500K 16.4Ft

SKU
PLX-STLHD54-35K-24V-16
STL HD GRD TRULUX, 24V, 3500K, 16.4FT RL W/3 TL-CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE, 2.19W/FT.IP54, 94+CRI, 2.46" CUT, 16.4' MAX
Standard High Density Tape Light IP54 3500K 16.4Ft
Standard High Density Tape Light IP54 3500K 16.4Ft

Performance

Input Voltage
24V DC
Wattage
2.19 W/ft
CCT
3500K
CRI
90+
Lumens
220
Cut Increment
2.46 in
Max Run
32.8 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.35 Inch

Physical

Weight
0.50 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-STLHD54-35K-24V-16 16.4 Foot 24V DC 3500K 90+ 2.19 W/ft 220 32.8 ft IP54 Each
