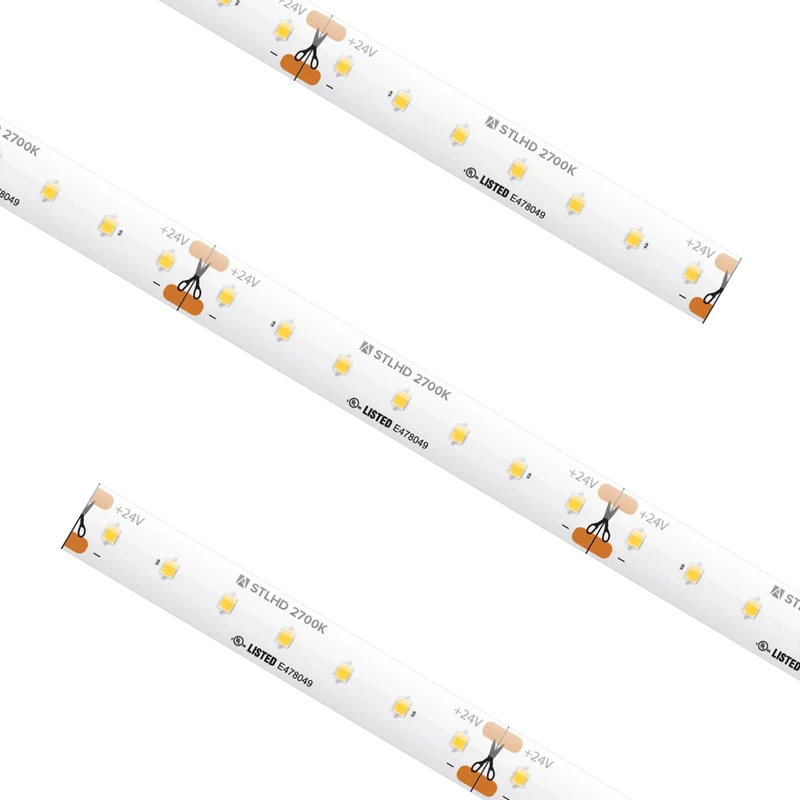

Standard High Density Tape Light IP54 2700K Custom Cut
SKU
PLX-STLHD54-27K-24V-CC
STL HD GRD TRULUX,24V,2700K, CUSTOM CUT, 2.19W/FT.IP54, 94+CRI, 2.46"CUT, 16.4' MAX
Performance
Input Voltage
24V DC
Wattage
2.19 W/ft
CCT
2700K
CRI
90+
Lumens
200
Cut Increment
2.46 in
Max Run
32.8 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.35 Inch
Physical
Weight
0.06 lbs
Length
Custom Cut
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-STLHD54-27K-24V-CC | Custom Cut | 24V DC | 2700K | 90+ | 2.19 W/ft | 200 | 32.8 ft | IP54 | Foot |
