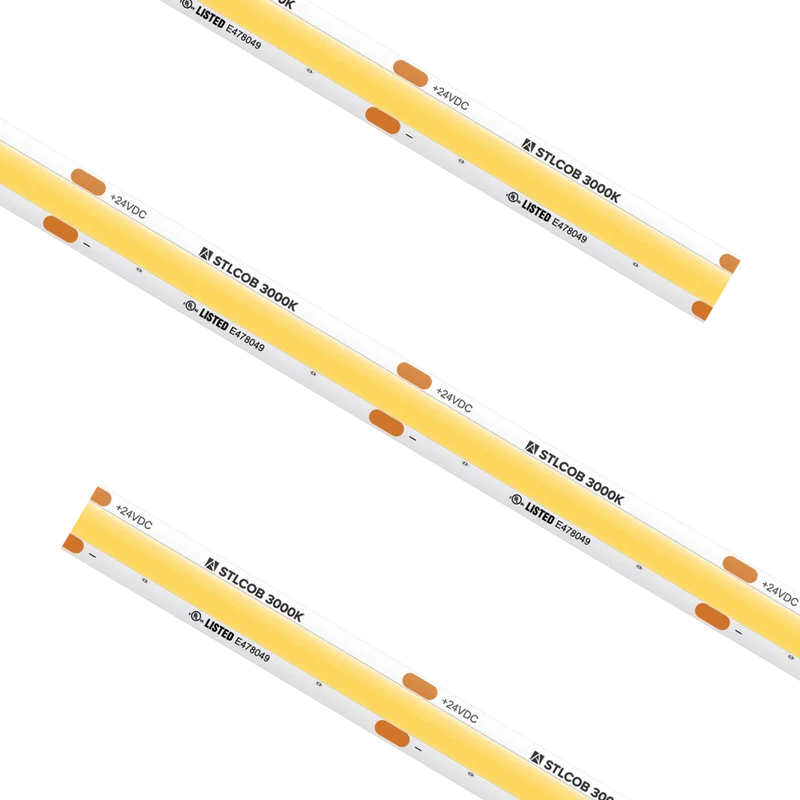

Standard COB Tape Light IP54 3000K Custom Cut
SKU
PLX-STL54-COB-30K-24V-CC
Custom Cut STL COB Tape Light, IP54, 1.96" cut increment, 3000K, 2.19W/ft
Performance
Input Voltage
24V DC
Input Frequency
60Hz
Wattage
2.19 W/ft
CCT
3000K
CRI
90+
Lumens
200
Cut Increment
1.97 in
Max Run
23 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Physical
Weight
0.02 lbs
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PLX-STL54-COB-30K-24V-CC | 24V DC | 3000K | 90+ | 2.19 W/ft | 200 | 23 ft | IP54 | Foot |
