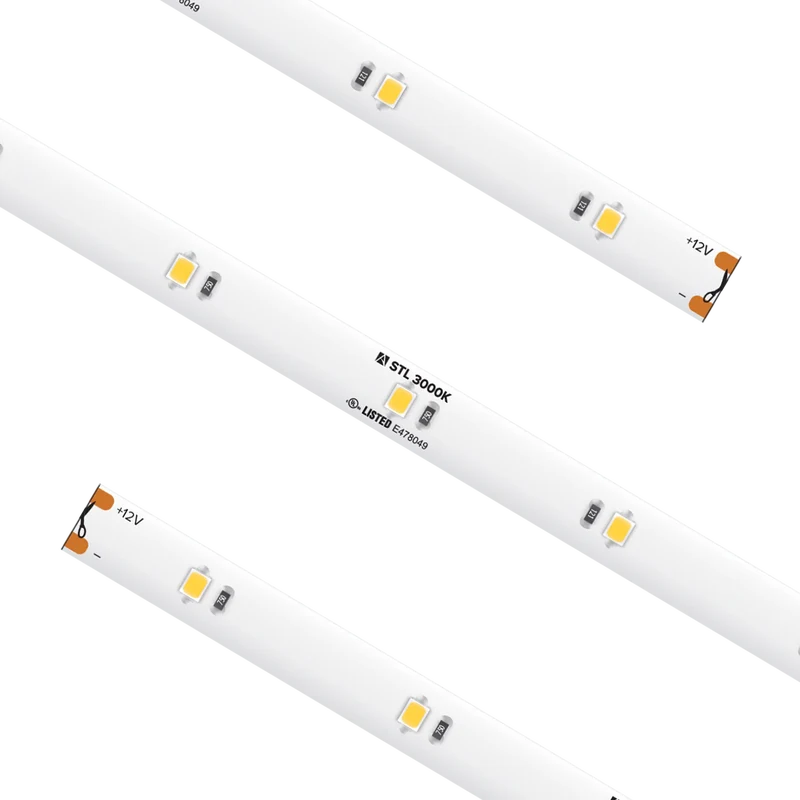

Standard Tape Light IP54 3000K 12V 100Ft
SKU
PLX-STL54-30K-12V-100
Build an economical and versatile layered lighting system with Standard Grade tape light. Light output of 150 lumens per foot, with easy to work with run lengths up to27 feet, Standard Grade is perfect for accent lighting applications when soft and subtle lighting is desired.
Performance
Input Voltage
12V DC
Wattage
2.19 W/ft
CCT
3000K
CRI
96+
Lumens
150
Cut Increment
3.94 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
1.30 Inch
Physical
Weight
1.80 lbs
Width
0.03 Foot
Length
100 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-STL54-30K-12V-100 | 100 Foot | 12V DC | 3000K | 96+ | 2.19 W/ft | 150 | 27 ft | IP54 | Each |
