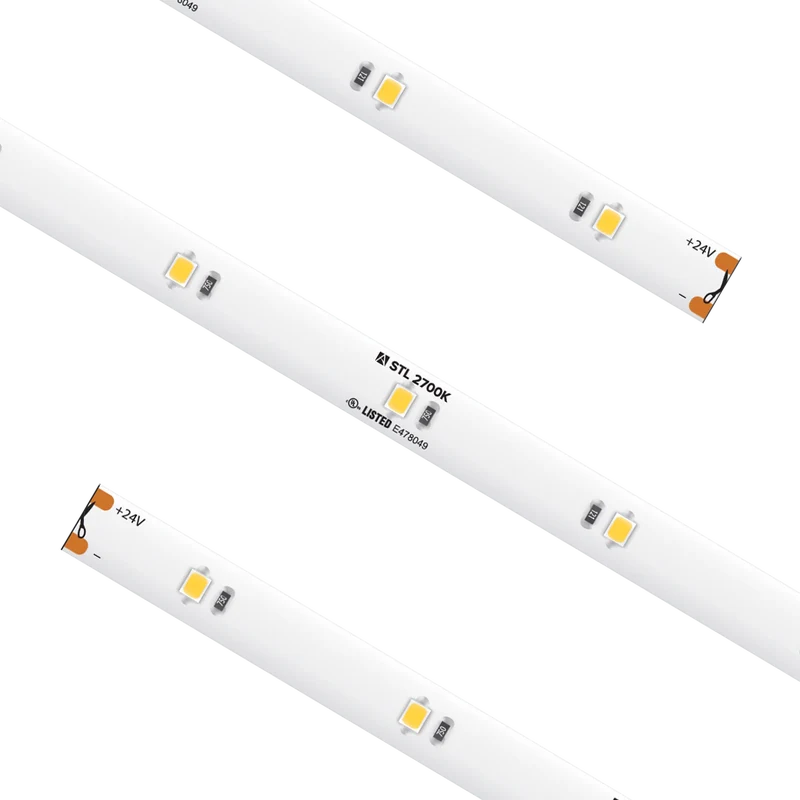

Standard Tape Light IP54 2700K 16.4Ft
SKU
PLX-STL54-27K-24V-16
STD GRADE TRULUX,24V,2700K, 16.4FT RL W/3 TL-CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/ 6' CABLE, 2.19W/FT, 94+CRI, IP54, 6.56"CUT
Performance
Input Voltage
24V DC
Wattage
2.19 W/ft
CCT
2700K
CRI
96+
Lumens
146
Cut Increment
6.56 in
Max Run
32.8 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
1.30 Inch
Physical
Weight
0.80 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-STL54-27K-24V-16 | 16.4 Foot | 24V DC | 2700K | 96+ | 2.19 W/ft | 146 | 32.8 ft | IP54 | Each |
Specification Sheets
Instruction Manuals
A STEP-BY-STEP GUIDE FOR YOUR NEXT TAPE LIGHT PROJECT IS HERE.
ACE, American Lighting’s product configurator offers a simple step-by-step guide to walk you through your tape light project. Made to be used by beginners and lighting professionals alke ACE assures that you have a complete list of materials for a beautiful linear lighting installation.
LEARN MORE
