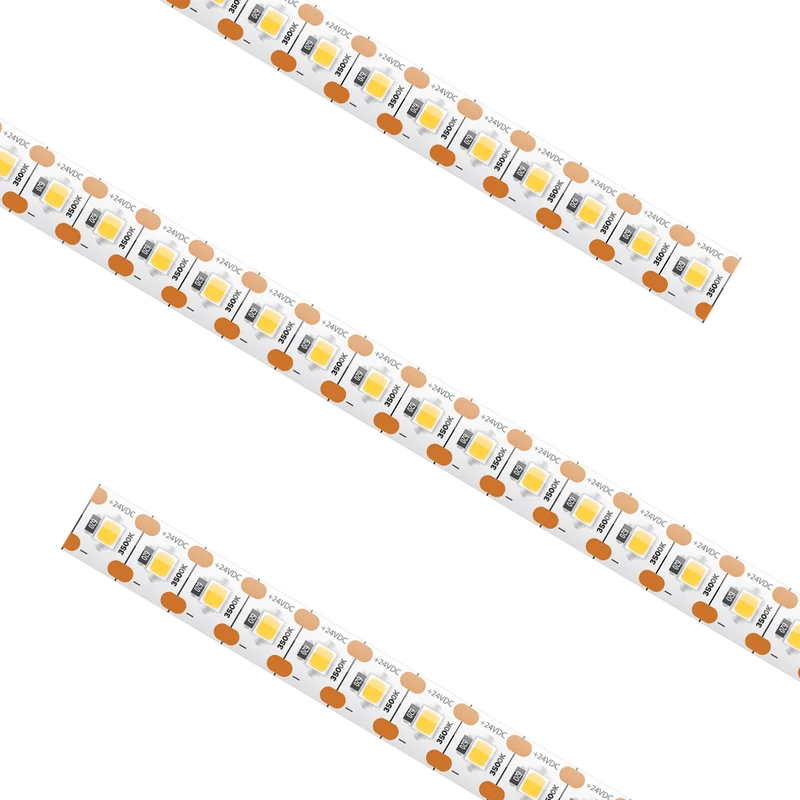

Specification Grade Ultra Tape Light IP54 3500K 13.1Ft

SERIES
PLX-SPTLX54-35K-24V-13
1 LED/1 CUT Tape, 13.1' Reels, 3500K, IP54
Specification Grade Ultra Tape Light IP54 3500K 13.1Ft
Specification Grade Ultra Tape Light IP54 3500K 13.1Ft

Performance

Input Voltage
24V DC
Wattage
7 W/ft
CCT
3500K
CRI
90+
Lumens
620
Cut Increment
0.32 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Quantity
1
Spacing
0.32 Inch

Physical

Weight
0.50 lbs
Width
0.03 Foot
Length
13.1 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-SPTLX54-35K-24V-13 13.1 Foot 24V DC 3500K 90+ 7 W/ft 620 13.1 ft IP54 Each
