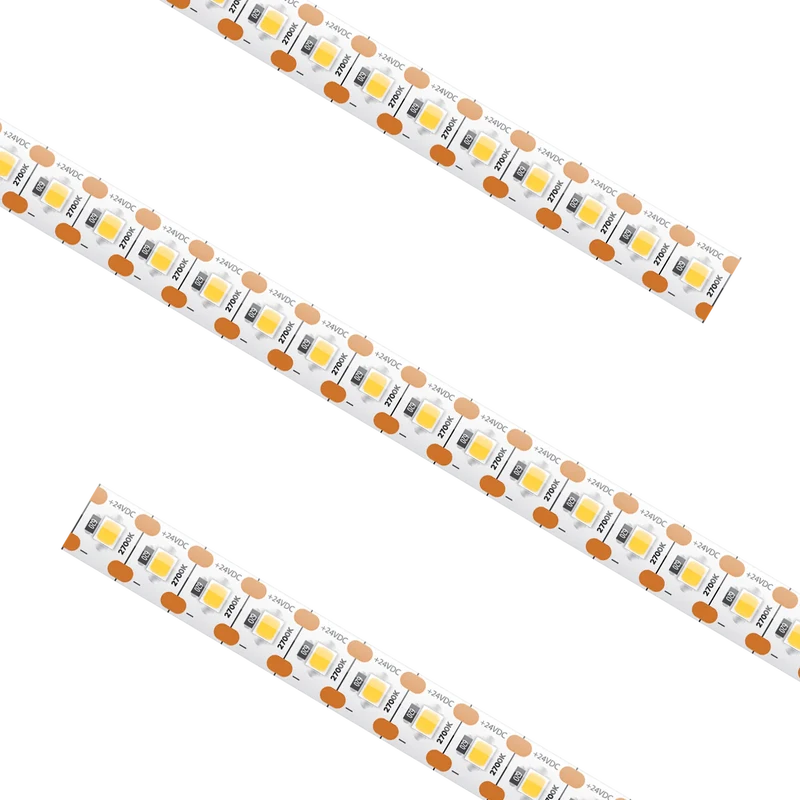

Specification Grade Ultra Tape Light IP54 2700K 13.1Ft
SKU
PLX-SPTLX54-27K-24V-13
1 LED/1 CUT Tape, 13.1' Reels, 2700K, IP54
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
2700K
CRI
90+
Lumens
550
Cut Increment
0.32 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Quantity
1
Spacing
0.32 Inch
Physical
Weight
0.50 lbs
Width
0.03 Foot
Length
13.1 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-SPTLX54-27K-24V-13 | 13.1 Foot | 24V DC | 2700K | 90+ | 7 W/ft | 550 | 13.1 ft | IP54 | Each |
