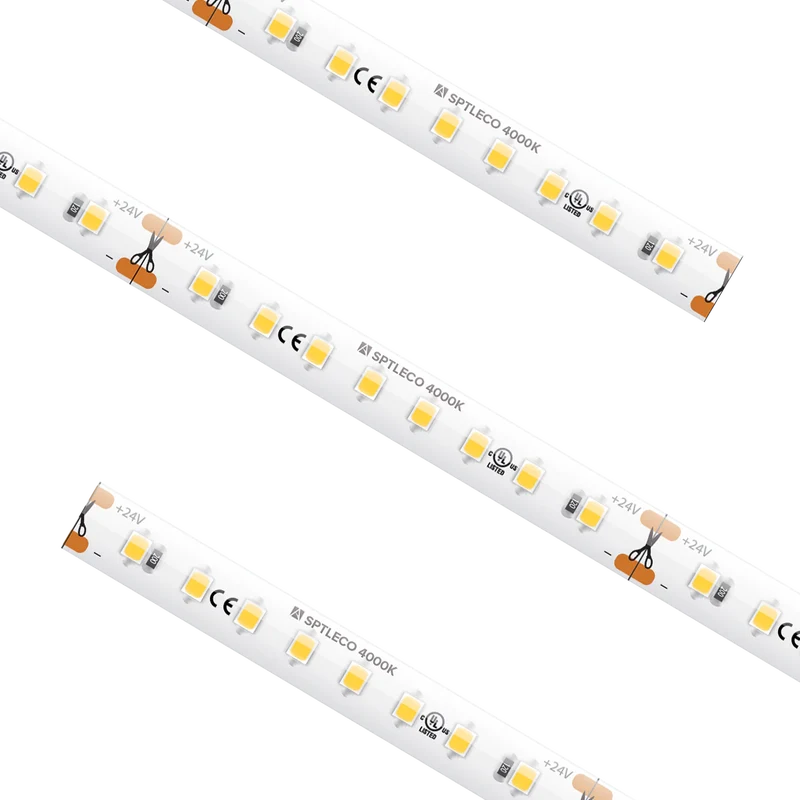

Specification Eco Tape Light IP54 4000K 16.4Ft
SKU
PLX-SPTLECO54-40K-24V-16
16.4ft Reel Spec Eco Tape Light, 4000K, IP54, Attached 3ft lead wires, (3) TL-CONKIT, (3) TL-BLKS, (3) TL-2PWR-HD
Performance
Input Voltage
24V DC
Wattage
5.8 W/ft
CCT
4000K
CRI
96+
Lumens
640
Cut Increment
2.8 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.35 ft
Physical
Weight
0.80 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-SPTLECO54-40K-24V-16 | 16.4 Foot | 24V DC | 4000K | 96+ | 5.8 W/ft | 640 | 16.4 ft | IP54 | Each |
