Specification Eco Tape Light IP54 3500K 16.4Ft

SKU
PLX-SPTLECO54-35K-24V-16

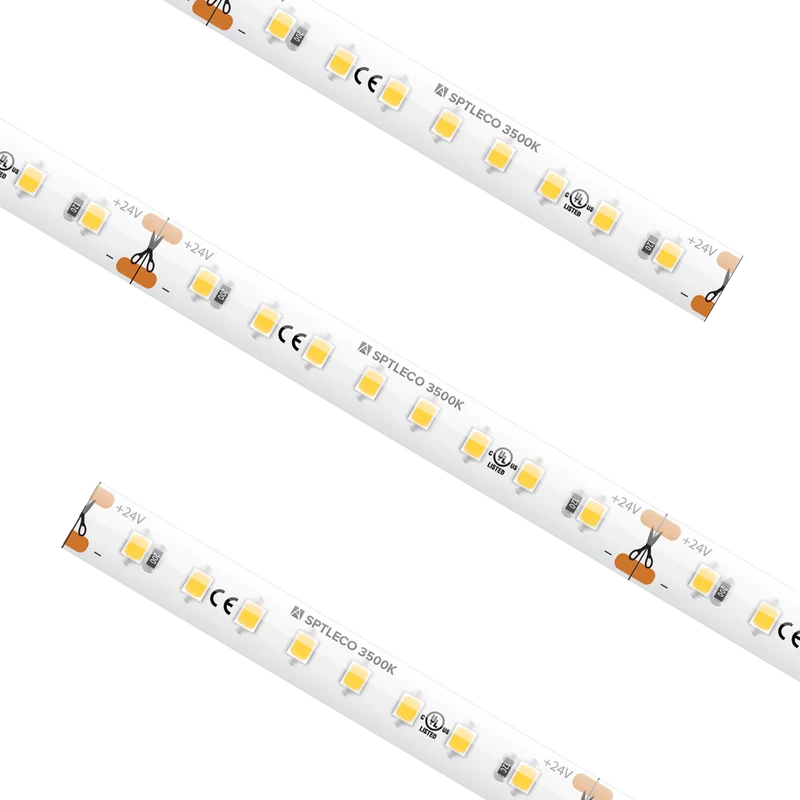

16.4ft Reel Spec Eco Tape Light, 3500K, IP54, Attached 3ft lead wires, (3) TL-CONKIT, (3) TL-BLKS, (3) TL-2PWR-HD
Specification Eco Tape Light IP54 3500K 16.4Ft
Specification Eco Tape Light IP54 3500K 16.4Ft

Performance

Input Voltage
24V DC
Wattage
5.8 W/ft
CCT
3500K
CRI
96+
Lumens
615
Cut Increment
2.8 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.35 ft

Physical

Weight
0.90 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-SPTLECO54-35K-24V-16 16.4 Foot 24V DC 3500K 96+ 5.8 W/ft 615 16.4 ft IP54 Each
