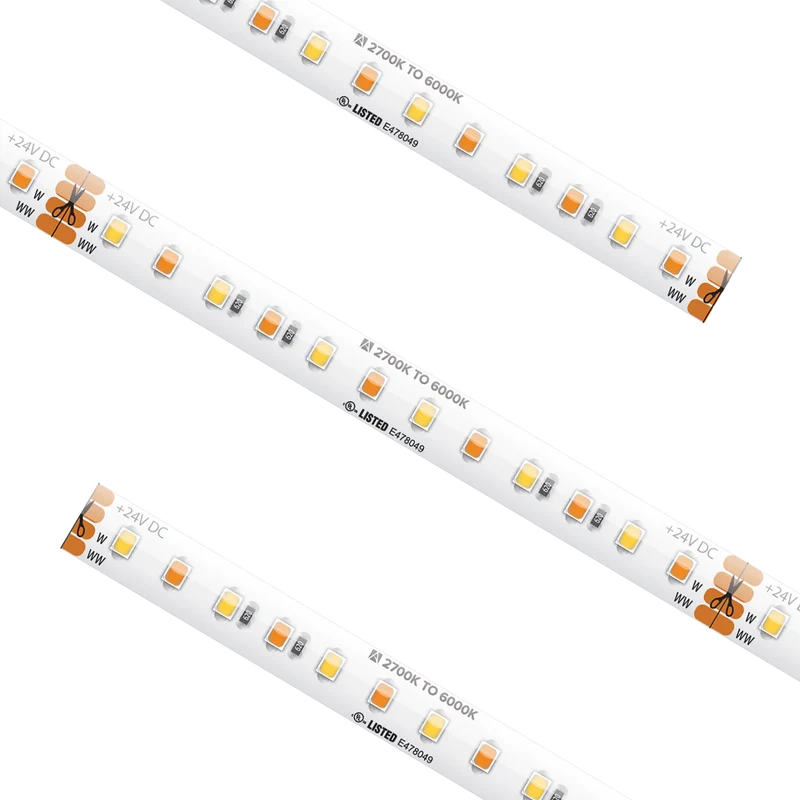

Specification Grade Tape Light IP54 TW 13.1Ft
SKU
PLX-SPTL54-TW-24V-13
SPEC TUN WH TAPE IP54,24V,7.0W/FT,2700-6000K, 13.1' REEL,94+CRI, 366LM/FT, 4 CONDUCTOR, W/ 3 Y0409680/TL-4PWR-HD 10MM 4PIN RGB CONNECTORS W/6' CABLE
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
2700K-6000K
CRI
90+
Lumens
510
Cut Increment
3.94 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.33 Inch
Physical
Weight
0.60 lbs
Width
0.03 Foot
Length
13.1 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-SPTL54-TW-24V-13 | 13.1 Foot | 24V DC | 2700K-6000K | 90+ | 7 W/ft | 510 | 13.1 ft | IP54 | Each |
Specification Sheets
Instruction Manuals
