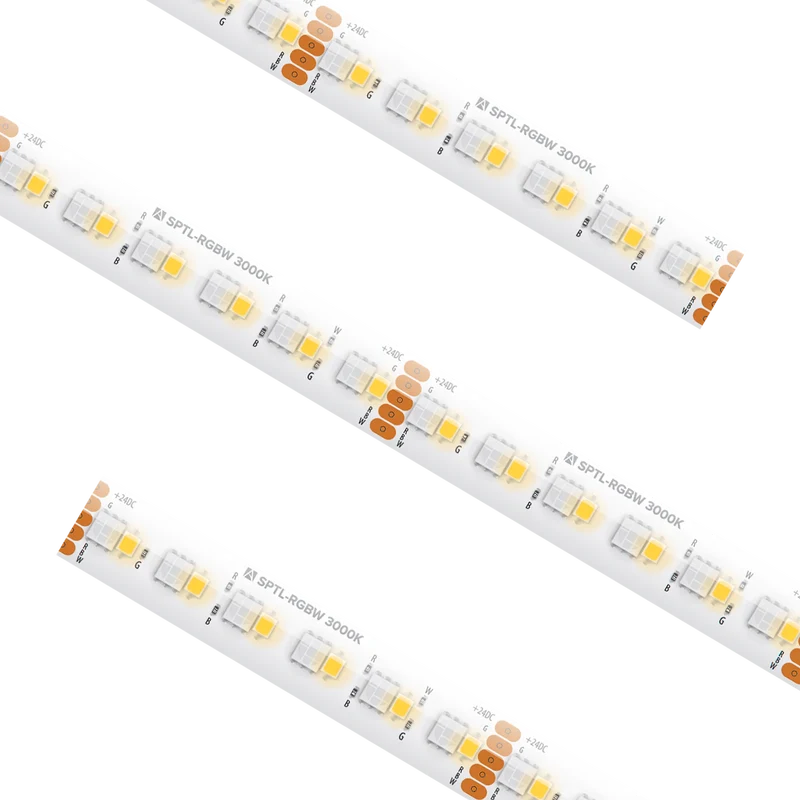

Specification Grade Tape Light IP54 RGBW 16.4Ft
SKU
PLX-SPTL54-RGBW-24V-16
16.4ft Reel Spec RGBW Tape; 24V DC, IP54, 7W/ft, Attached 3ft lead wires, (3) TL-5PWR-HD 12mm 5PIN connector (RGB+W) with 6' cable, (3) TL-5SPL-HD
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
RGBW
CRI
90+
Lumens
350
Cut Increment
1.97 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
PWM 5 - 100%
Spacing
0.21 Inch
Physical
Weight
0.90 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-SPTL54-RGBW-24V-16 | 16.4 Foot | 24V DC | RGBW | 90+ | 7 W/ft | 350 | 16.4 ft | IP54 | Each |
