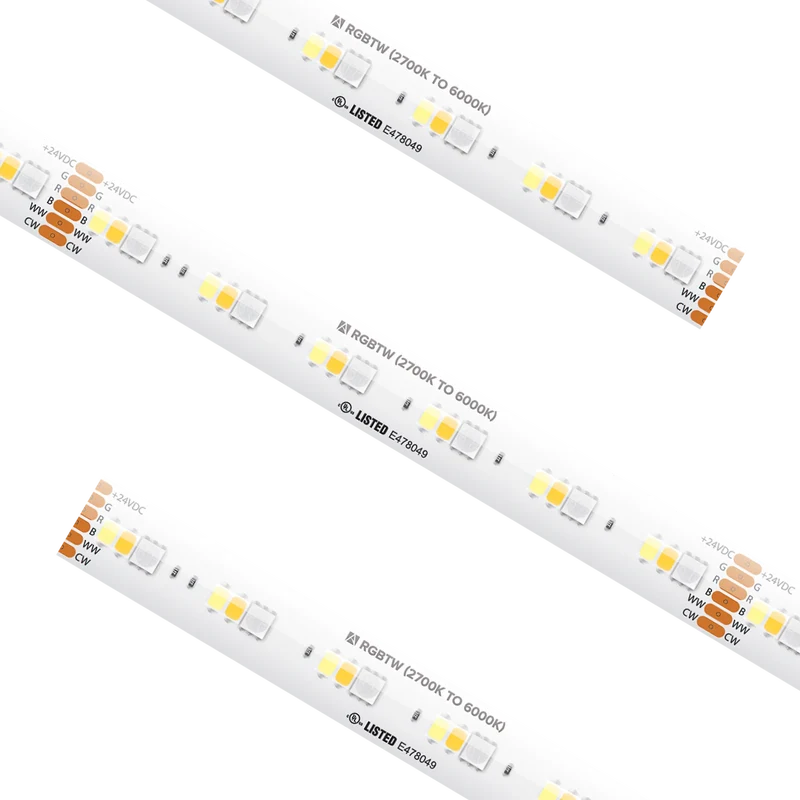

Specification Grade Tape Light IP54 RGBTW 13.1Ft
SKU
PLX-SPTL54-RGBTW-24V-13
13.1FT REEL RGBTW TAPE IP54,24V,7W/FT,368LM/FT, INCLUDES 3 FT LEAD WIRES W/3 TL-6PWR
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
RGBTW
CRI
90+
Lumens
410
Cut Increment
3.94 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.66 Inch
Physical
Weight
0.90 lbs
Width
0.03 Foot
Length
13.1 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
ROHS
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-SPTL54-RGBTW-24V-13 | 13.1 Foot | 24V DC | RGBTW | 90+ | 7 W/ft | 410 | 13.1 ft | IP54 | Each |
