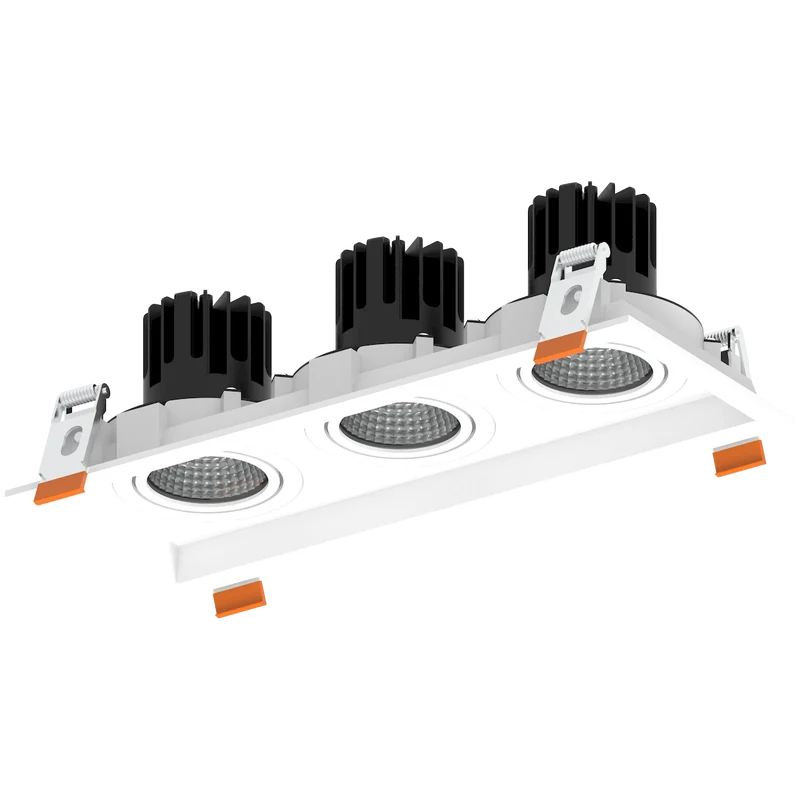

Recessed Multiple 3-Head

SERIES
PLX-RM3-5CCT-WH
The Recessed Multiple downlight features convenience, quality and performance. With 5-CCT selection provides versatility to any lighting design layout. The spring clips make installation simple for remodel or new construction. Five selectable CCT options (2700K / 3000K / 3500K / 4000K / 5000K) with excellent color rendering (90+) Up to 2300 lumen output 330° gimbal rotation and 30° lens tilt Dimmable on most TRIAC/ELV dimmers Type IC and cETLus Listed for damp locations Aluminum housing with glass lens FCC Compliant Energy Star certified JA8 Compliant 50,000 hours rated life
Recessed Multiple 3-Head
Recessed Multiple 3-Head

Performance

Input Voltage
120V AC
Wattage
22 W
CCT
5CCT
CRI
90+
Lumens
1800
Optics (Degree)
30 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
TRIAC / ELV 10 - 100%
Finish
White/White/White

Physical

Weight
4.75 lbs
Width
5.33 Inch
Length
14.25 Inch

Certification

Safety Rating
cETLus Listed
Energy Star
Y
Title 24
Y
Type IC
Y
Location Rating
Damp
Indoor
Y
FCC
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
PLX-RM3-5CCT-WH 14.25 Inch 120V AC 5CCT 90+ 22 W 1800 Each
