Omni Slim 30K Single Puck Light w/ Black and White Trims

SERIES
PLX-OMNSLI-30K-WHBK

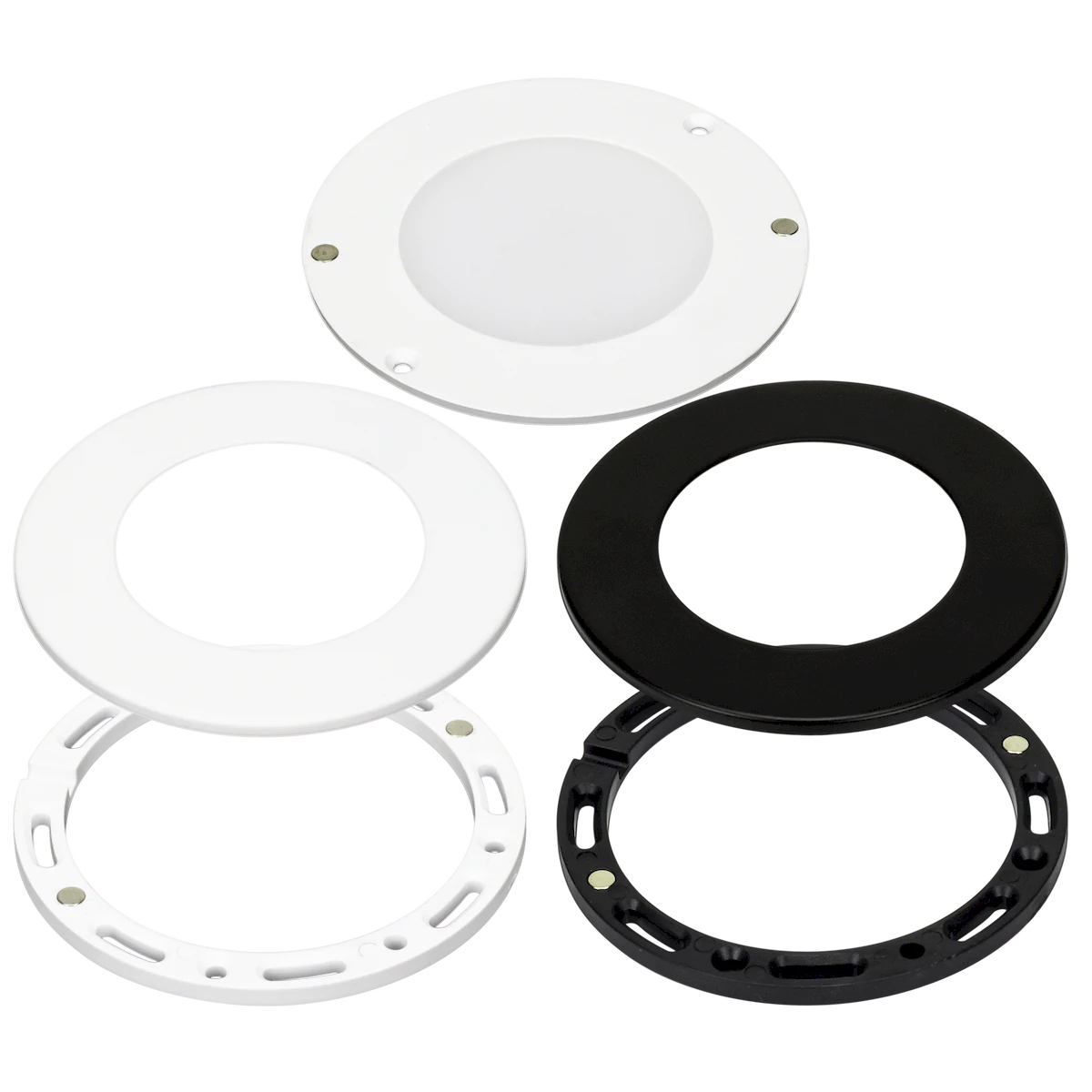

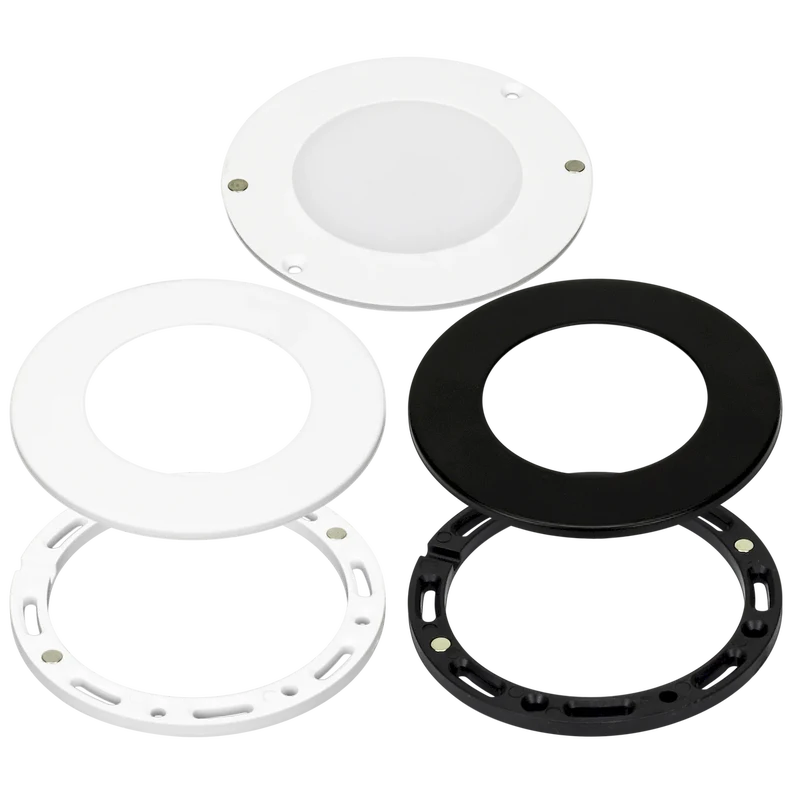

OMNI SLIM Puck light DC24V; 2W; 3000K; 140Lm/pc CRI>90; dry Location, 1/16" height; 72" Leads; 2x trim & mtg brckt in BK & WH
Omni Slim 30K Single Puck Light w/ Black and White Trims
Omni Slim 30K Single Puck Light w/ Black and White Trims Omni Slim 30K Single Puck Light w/ Black and White Trims

Performance

Input Voltage
24V DC
Wattage
2.5 W
CCT
3000K
CRI
90+
Optics (Degree)
148 degrees
Rated Life (Hr)
35,000 Hours
Temperature Range
-10C (14F) to 45C (113F) degrees
Dimming
CL / ELV / TRIAC 5 - 100%
Finish
White / Black

Physical

Weight
0.20 lbs
Width
0.25 Foot
Length
0.25 Foot
Height
0.02 Foot

Certification

Safety Rating
cETLus Listed
IP Rating
IP20
Location Rating
Dry
Indoor
Y
ROHS
Y
Item Number Length Input Voltage CCT CRI Wattage IP Rating UOM
PLX-OMNSLI-30K-WHBK 0.25 Foot 24V DC 3000K 90+ 2.5 W IP20 Each
