Nieve 5 (0-10v)

SERIES
PLX-NV-0/10V-30K-5-WH

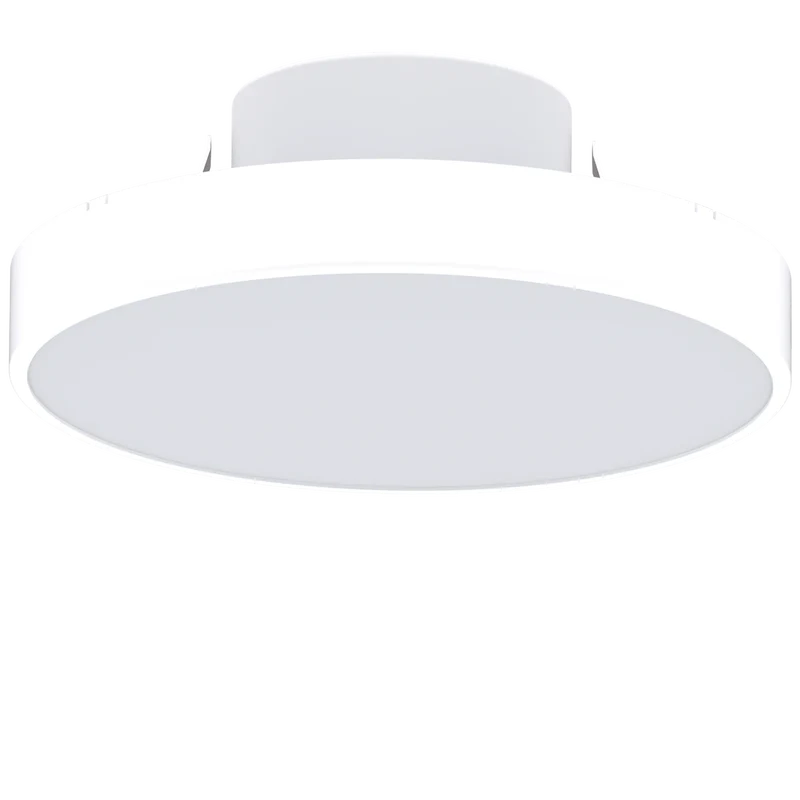

5" Nieve Ceiling light, 120V-277V with 0-10V Dimming, 5" Trim, 3000K
Nieve 5 (0-10v)
Nieve 5 (0-10v)

Performance

Input Voltage
120-277V AC
Input Frequency
60Hz
Wattage
10 W
CCT
3000K
CRI
90+
Lumens
750
Optics (Degree)
150 degrees
Rated Life (Hr)
35,000 Hours
Temperature Range
-10C (14F) to 50C (122F) degrees
Dimming
0-10V 10 - 100%
Finish
White
Control
0-10V

Physical

Weight
0.80 lbs
Length
5 Inch

Certification

Safety Rating
cETLus Listed
Title 24
Y
Location Rating
Wet
Indoor
Y
FCC
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
PLX-NV-0/10V-30K-5-WH 5 Inch 120-277V AC 3000K 90+ 10 W 750 Each
