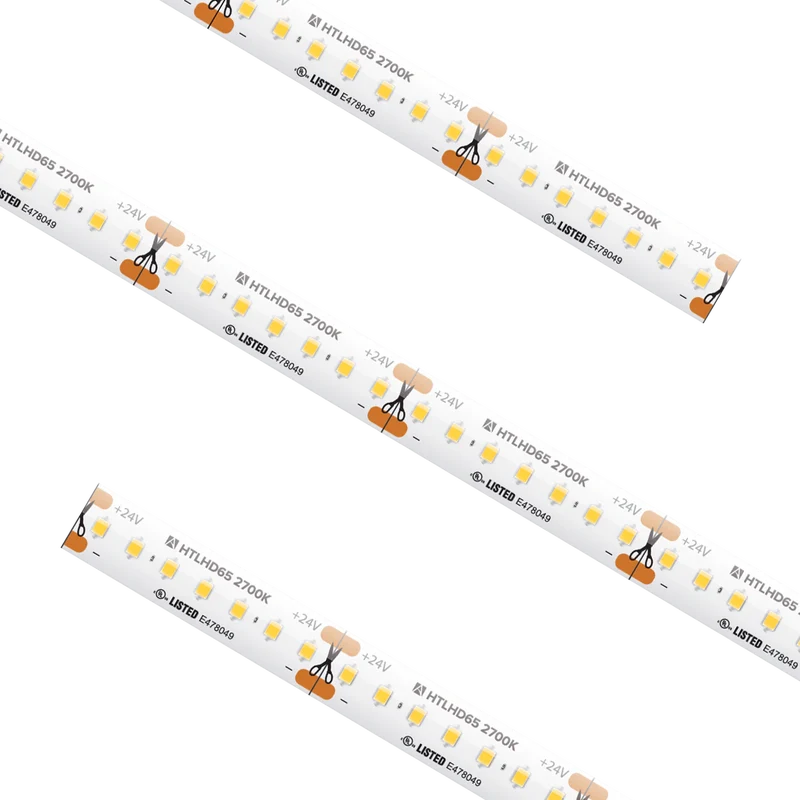

High Output High Density Tape Light IP65 2700K 16.4Ft
SKU
PLX-HTLHD65-27K-24V-16
16.4ft Reel HTLHD Tape Light, IP65, 1.51" cut increment, 2700K, 3.65W/ft
Performance
Input Voltage
24V DC
Wattage
3.65 W/ft
CCT
2700K
CRI
90+
Lumens
295
Cut Increment
1.51 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.21 Inch
Physical
Weight
0.65 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTLHD65-27K-24V-16 | 16.4 Foot | 24V DC | 2700K | 90+ | 3.65 W/ft | 295 | 27 ft | IP65 | Each |
