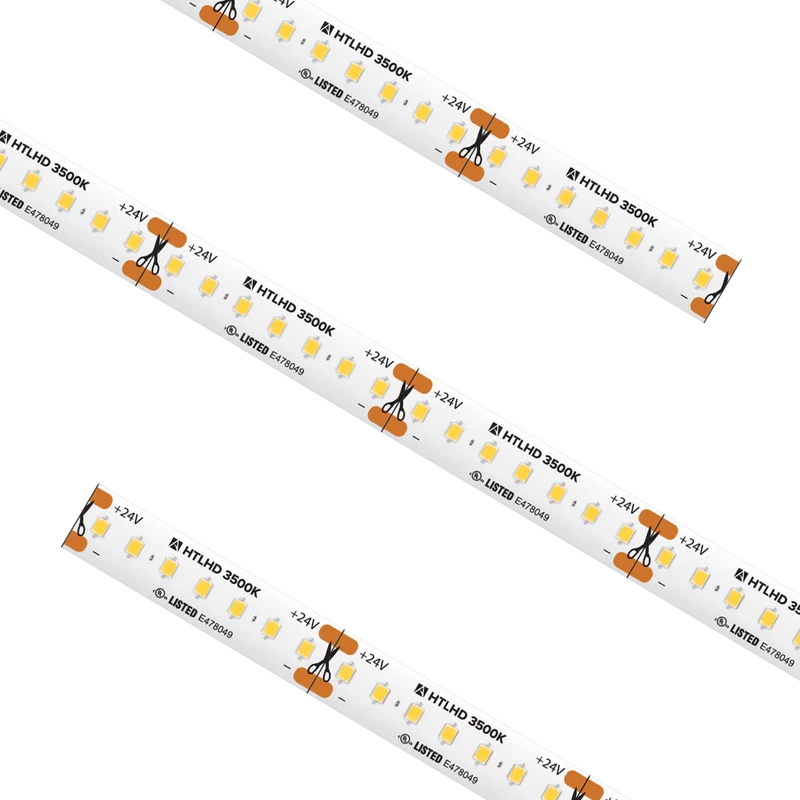

High Output High Density Tape Light IP54 3500K Custom Cut

SKU
PLX-HTLHD54-35K-24V-CC
HTL HD HIGH OUTPUT TRULUX,24V,3500K, CUSTOM CUT, 3.65W/FT.IP54, 94+CRI, 1.51"CUT, 16.4' MAX
High Output High Density Tape Light IP54 3500K Custom Cut
High Output High Density Tape Light IP54 3500K Custom Cut

Performance

Input Voltage
24V DC
Wattage
3.65 W/ft
CCT
3500K
CRI
90+
Lumens
355
Cut Increment
1.51 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.21 Inch

Physical

Weight
0.05 lbs
Length
Custom Cut

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-HTLHD54-35K-24V-CC Custom Cut 24V DC 3500K 90+ 3.65 W/ft 355 27 ft IP54 Foot
