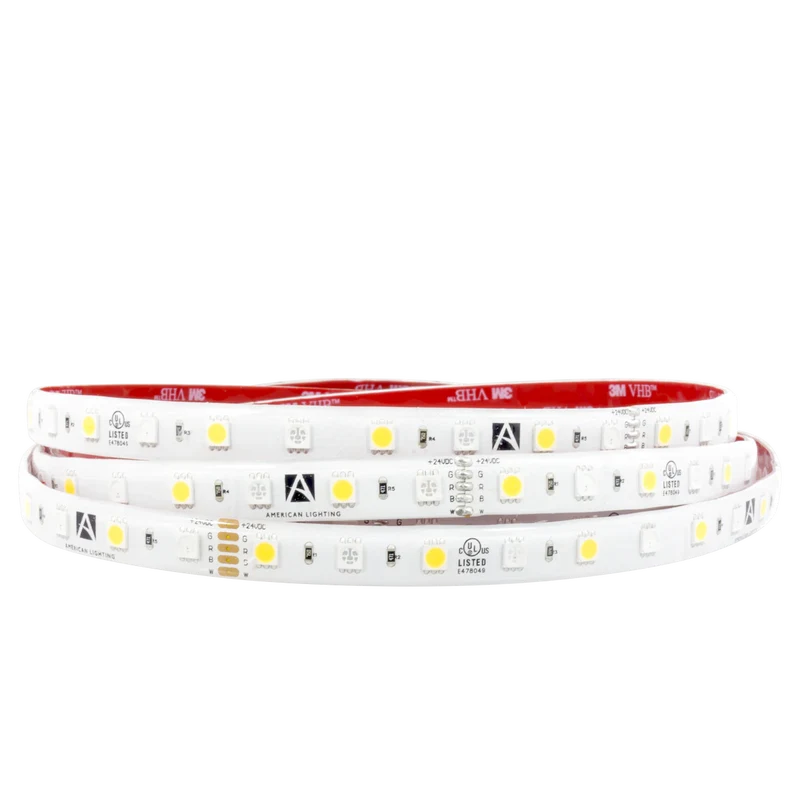

High Output Tape Light IP65 RGBW 16.4Ft
SKU
PLX-HTL65-RGBW-24V-16
HI RGBW,IP65,24V,16.4FT RL,4.6W/FT,5050 3-IN-1 &WH ALT. LEDS,80+CRI, 6.56" CUT,16.4FT MAX
Performance
Input Voltage
24V DC
Wattage
4.4 W/ft
CCT
RGBW
CRI
90+
Lumens
240
Cut Increment
6.56 in
Max Run
22 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.64 Inch
Physical
Weight
0.80 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL65-RGBW-24V-16 | 16.4 Foot | 24V DC | RGBW | 90+ | 4.4 W/ft | 240 | 22 ft | IP65 | Each |
