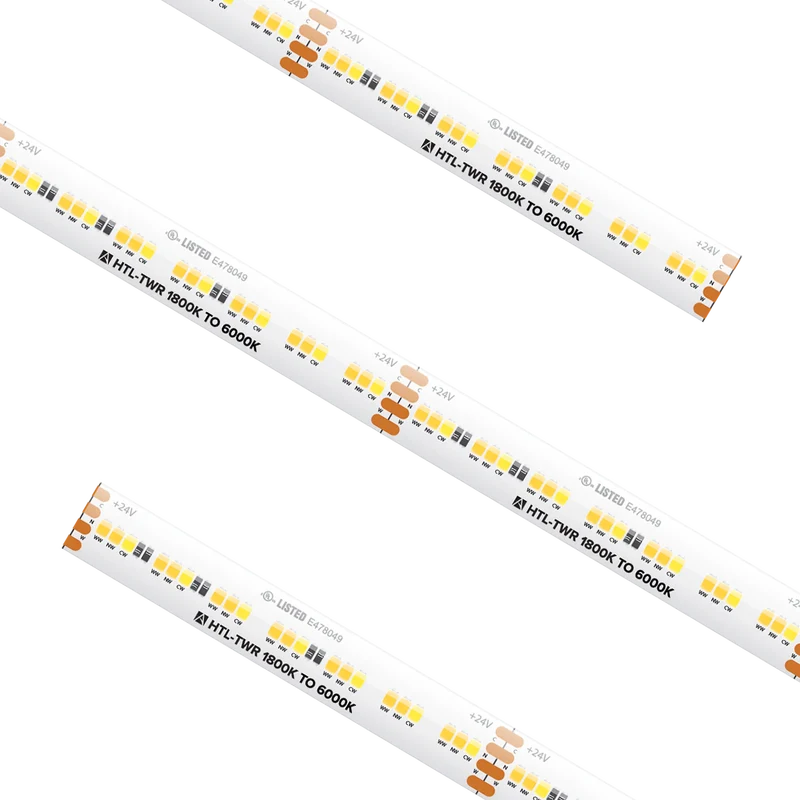

High Output Tape Light IP54 TWR 16.4Ft
SKU
PLX-HTL54-TWR-24V-16
16.4ft High Output High Density, Wide Range Tunable Tape Light
Performance
Input Voltage
24V DC
Wattage
5.9 W/ft
CCT
1800K-6000K
CRI
90+
Lumens
411
Cut Increment
1.97 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 45C (113F) degrees
Dimming
PWM 5 - 100%
Spacing
0.41 Inch
Physical
Weight
0.60 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL54-TWR-24V-16 | 16.4 Foot | 24V DC | 1800K-6000K | 90+ | 5.9 W/ft | 411 | 16.4 ft | IP54 | Each |
Specification Sheets
Instruction Manuals
