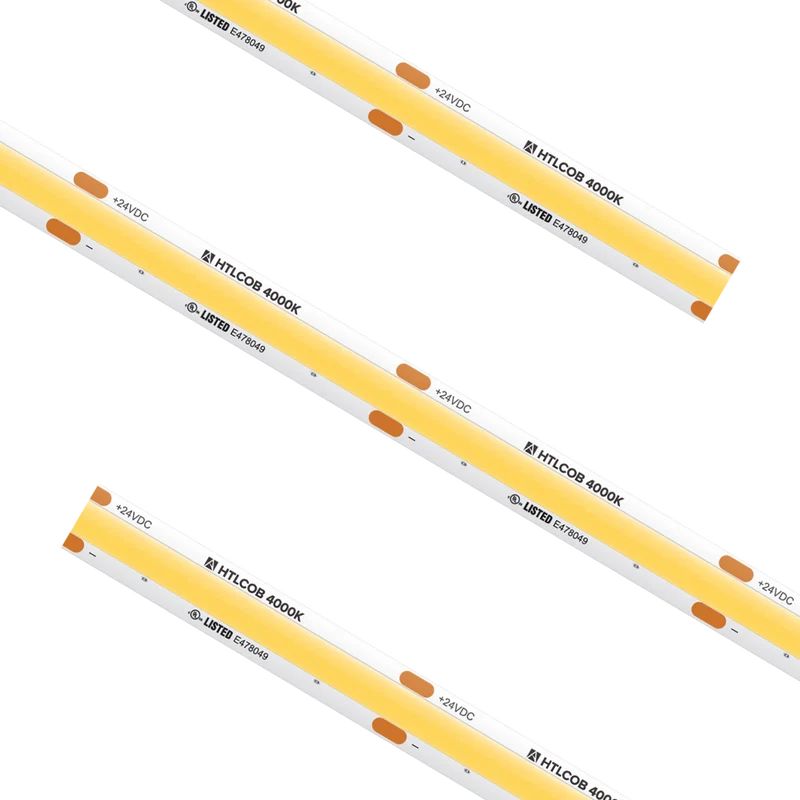

High Output COB Tape Light IP54 4000K Custom Cut
SKU
PLX-HTL54-COB-40K-24V-CC
Custom Cut HTL COB Tape Light, IP54, 1.96" cut increment, 4000K, 4.5W/ft
Performance
Input Voltage
24V DC
Wattage
4.5 W/ft
CCT
4000K
CRI
90+
Lumens
460
Cut Increment
1.97 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Physical
Weight
0.02 lbs
Length
Custom Cut
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL54-COB-40K-24V-CC | Custom Cut | 24V DC | 4000K | 90+ | 4.5 W/ft | 460 | 16.4 ft | IP54 | Foot |
