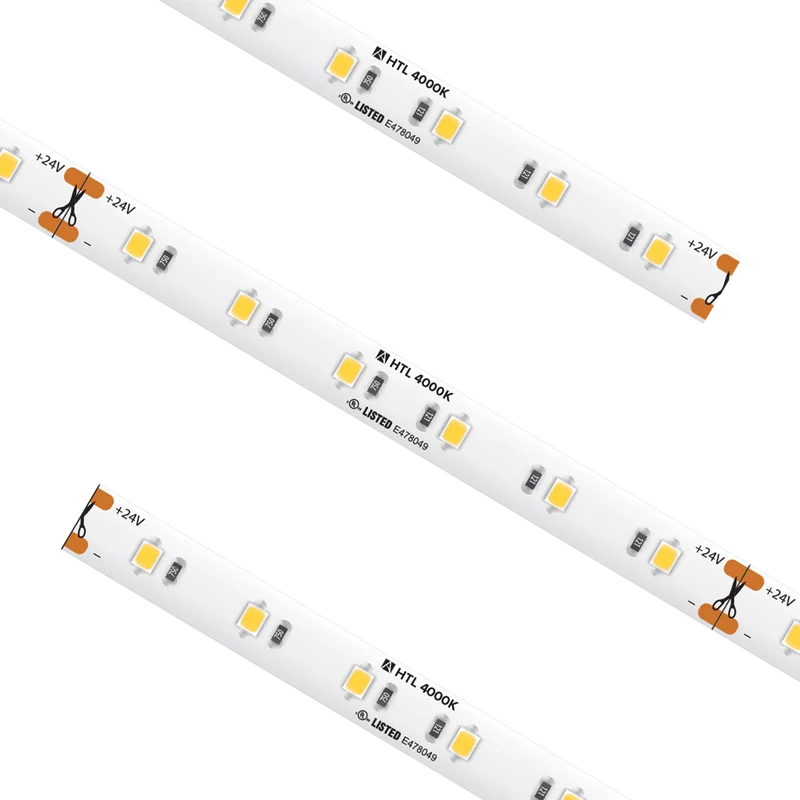

High Output Tape Light IP54 4000K 16.4Ft

SKU
PLX-HTL54-40K-24V-16
HIGH GRD TRULUX IP65,24V,4000K,16.4FT RL W/3 TL-CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE,4.6W/FT,94+CRI, IP54, 3.94" CUT
High Output Tape Light IP54 4000K 16.4Ft
High Output Tape Light IP54 4000K 16.4Ft

Performance

Input Voltage
24V DC
Wattage
4.6 W/ft
CCT
4000K
CRI
96+
Lumens
310
Cut Increment
3.94 in
Max Run
22 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.63 Inch

Physical

Weight
0.80 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-HTL54-40K-24V-16 16.4 Foot 24V DC 4000K 96+ 4.6 W/ft 310 22 ft IP54 Each
