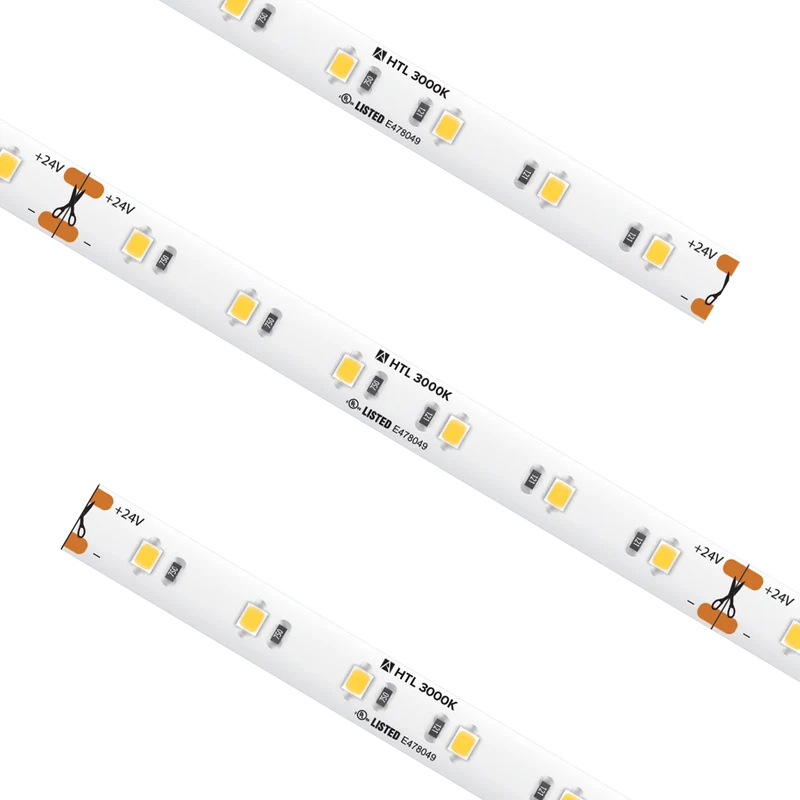

High Output Tape Light IP54 3000K 16.4Ft
SKU
PLX-HTL54-30K-24V-16
HIGH GRADE TRULUX , 24V, 3000K,16.4FT RL W/3 TL CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE, 4.6W/FT, 94+CRI, IP54, 3.94" CUT
Performance
Input Voltage
24V DC
Wattage
4.6 W/ft
CCT
3000K
CRI
96+
Lumens
300
Cut Increment
3.94 in
Max Run
22 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.63 Inch
Physical
Weight
0.80 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL54-30K-24V-16 | 16.4 Foot | 24V DC | 3000K | 96+ | 4.6 W/ft | 300 | 22 ft | IP54 | Each |
Specification Sheets
Instruction Manuals
IES Files
