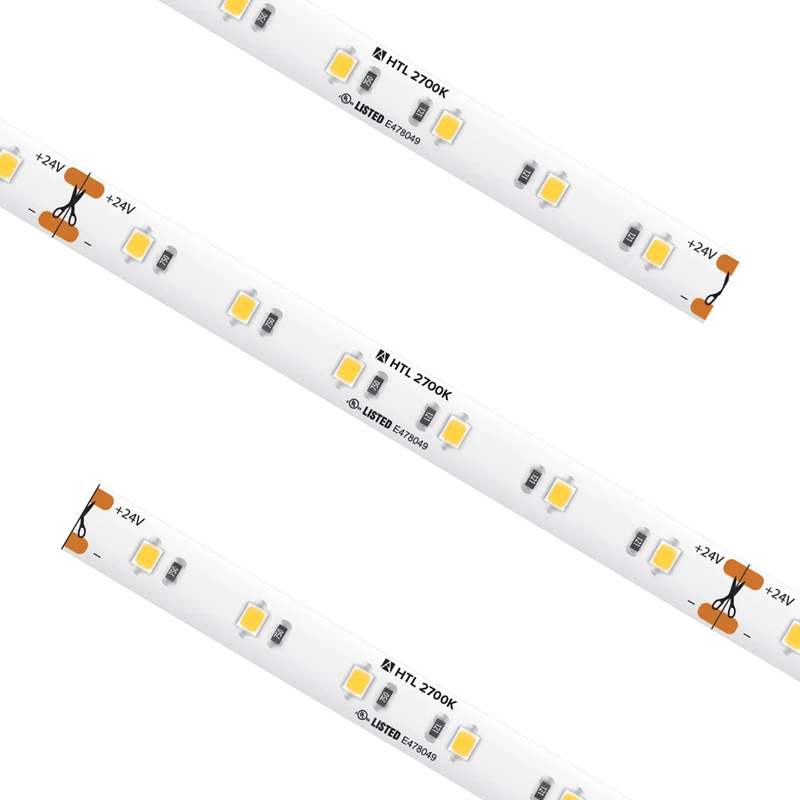

High Output Tape Light IP54 2700K 100Ft
SKU
PLX-HTL54-27K-24V-100
HIGH GRADE TAPE IP54,24V,2700K,100FT RL 4.6W/FT, W/5 TL-CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE
Performance
Input Voltage
24V DC
Wattage
4.6 W/ft
CCT
2700K
CRI
96+
Lumens
285
Cut Increment
3.94 in
Max Run
22 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.63 Inch
Physical
Weight
2.10 lbs
Width
0.03 Foot
Length
100 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL54-27K-24V-100 | 100 Foot | 24V DC | 2700K | 96+ | 4.6 W/ft | 285 | 22 ft | IP54 | Each |
