HP 2

SERIES
PLX-HP-5CCT-2-WH

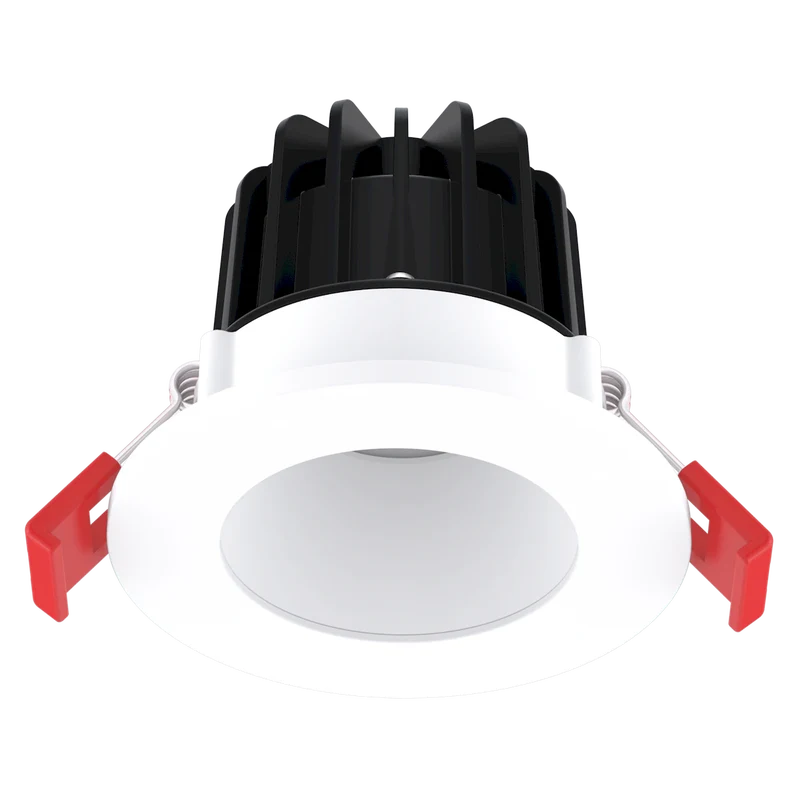

HP Series 2" 8W Round IC rated regress downlight. 27K/30K/35K/40K/50K, 550lm, PF: >0.9, LED Source:COB, Includes smooth white and smooth alzak reflector plus white trim
HP 2
HP 2

Performance

Input Voltage
120V AC
Wattage
8 W
CCT
5CCT
CRI
90+
Lumens
550
Optics (Degree)
38 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-25C (-13F) to 40C (104F) degrees
Dimming
TRIAC / ELV 10 - 100%
Finish
White
Style
Round

Physical

Weight
1.10 lbs

Certification

Safety Rating
cETLus Listed
Energy Star
Y
Title 24
Y
Type IC
Y
Location Rating
Wet
Indoor
Y
FCC
Y
Item Number Input Voltage CCT CRI Wattage Lumens UOM
PLX-HP-5CCT-2-WH 120V AC 5CCT 90+ 8 W 550 Each
