Hybrid 3 Warm Dim 3000K-1800K 150ft Reel

SERIES
PLX-H365-120VAC-WD-150

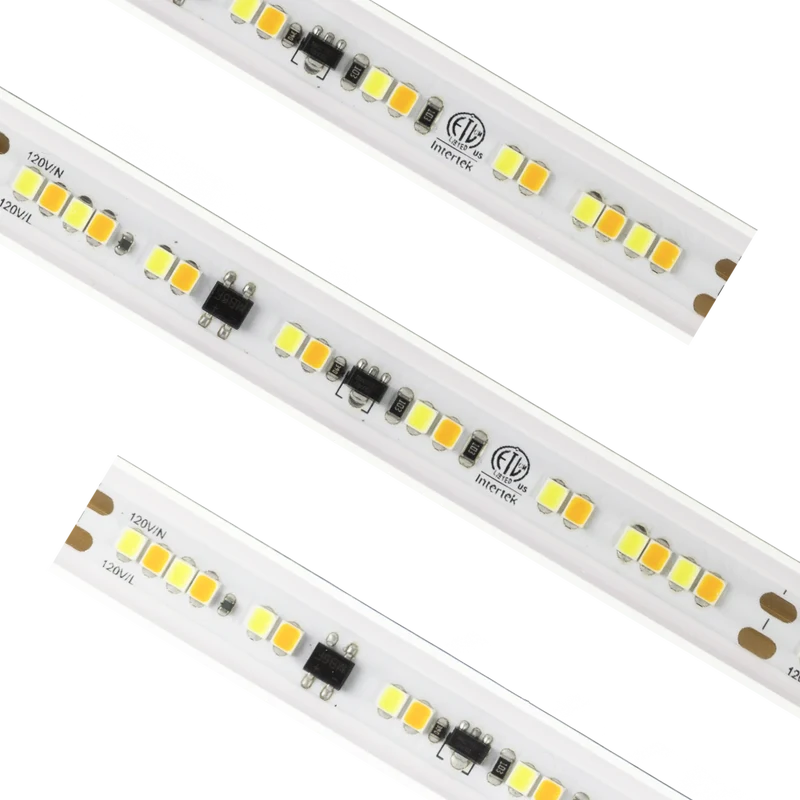

Warm Dim Hybrid 3 combines the smooth transition of warm dim technology, high light output, and outdoor use into one unique and robust linear lighting solution. At full brightness Warm Dim Hybrid 3 has a CCT of 3000K. As it is dimmed the CCT smoothly transitions down to 1800K. Up to 200 lumens per foot and 90+ CRI 120V AC reels consume only 4 watts per foot Dimmable with most TRIAC dimmers Cuttable† every 4" Economical for larger installations - no need for a driver (75ft max run) cETLus Listed† Suitable for indoor and outdoor use 30,000 hours rated life
Hybrid 3 Warm Dim 3000K-1800K 150ft Reel
Hybrid 3 Warm Dim 3000K-1800K 150ft Reel Hybrid 3 Warm Dim 3000K-1800K 150ft Reel Hybrid 3 Warm Dim 3000K-1800K 150ft Reel Hybrid 3 Warm Dim 3000K-1800K 150ft Reel

Performance

Input Voltage
120V AC
Input Frequency
60Hz
UV Inhibitor
N
Wattage
4 W/ft
CCT
1800K-3000K
CRI
90
Lumens
200
Cut Increment
4 in
Max Run
164 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
-30C (-22F) to 45C (113F) degrees
Dimming
ELV / CL 10 - 100%
Finish
White
Spacing
0.66 Inch

Physical

Weight
14.85 lbs
Width
0.049 Foot
Length
150 Foot
Height
0.02 Foot

Certification

Safety Rating
cETLus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-H365-120VAC-WD-150 150 Foot 120V AC 1800K-3000K 90 4 W/ft 200 164 ft IP65 Each
