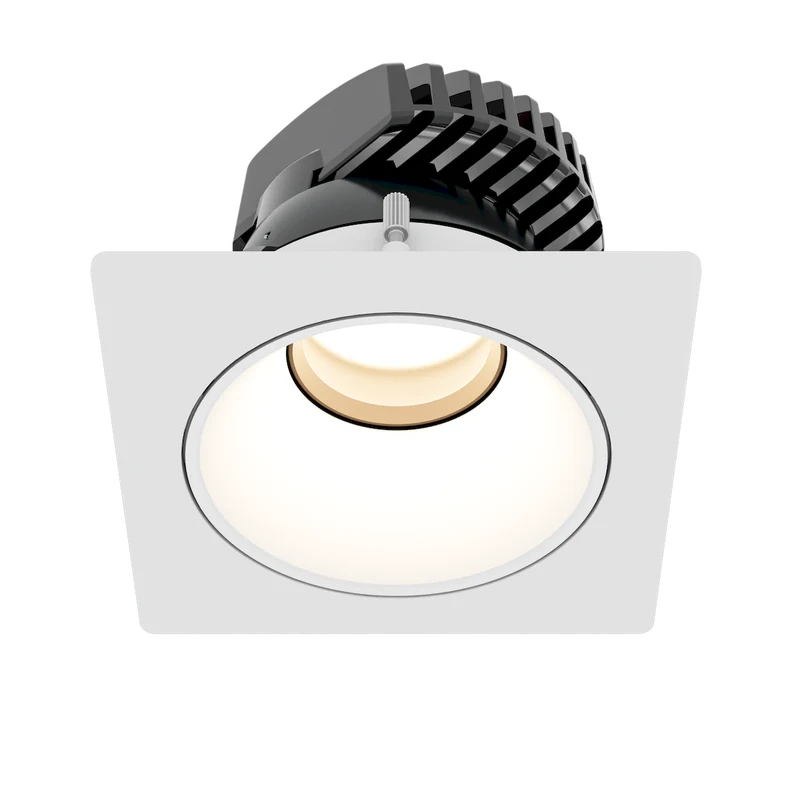

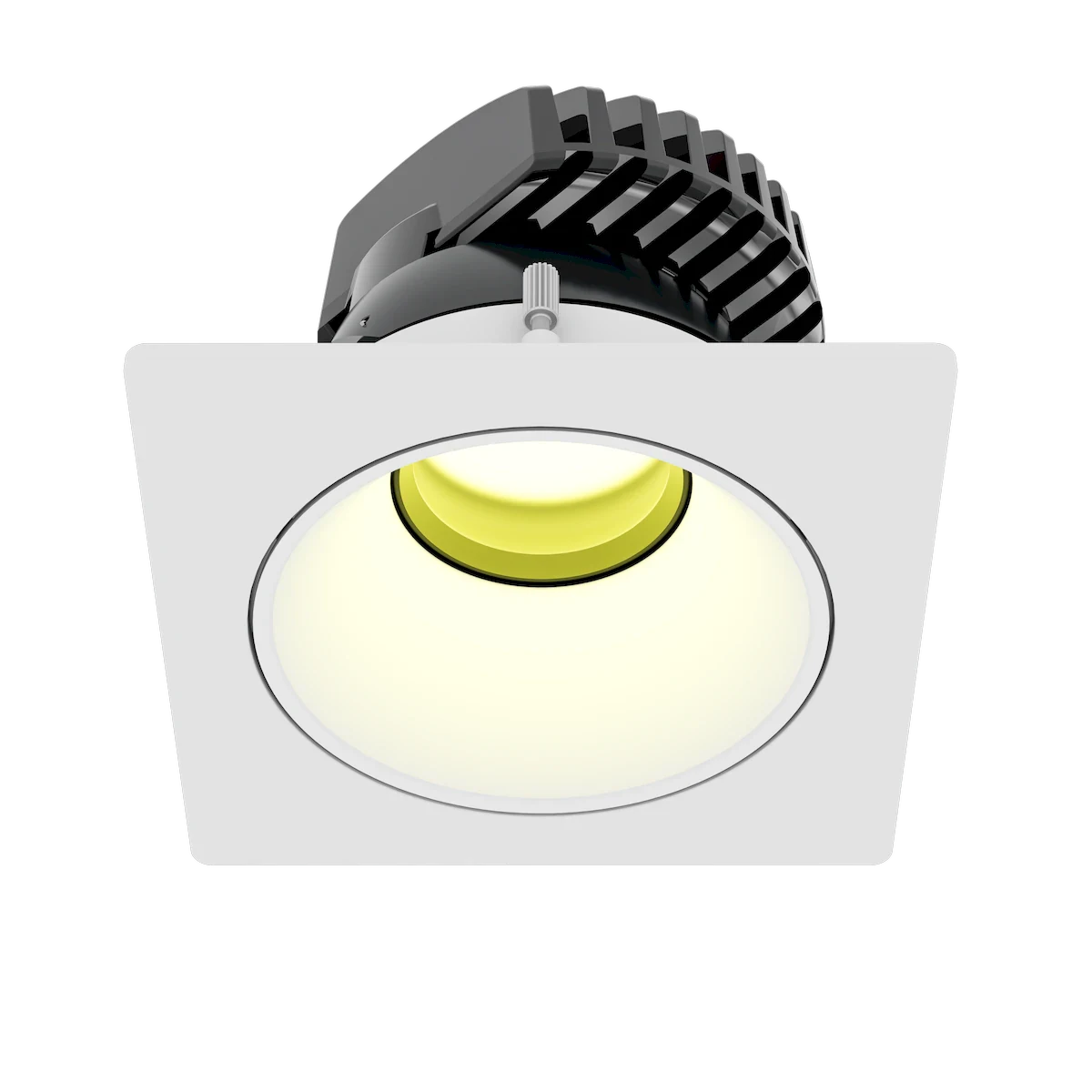

ChromaDMX 4in DMX RGB+TW Downlight, Square Trim, White Finish
SKU
PLX-DL4S-DMX-RGBTW-LED-WH

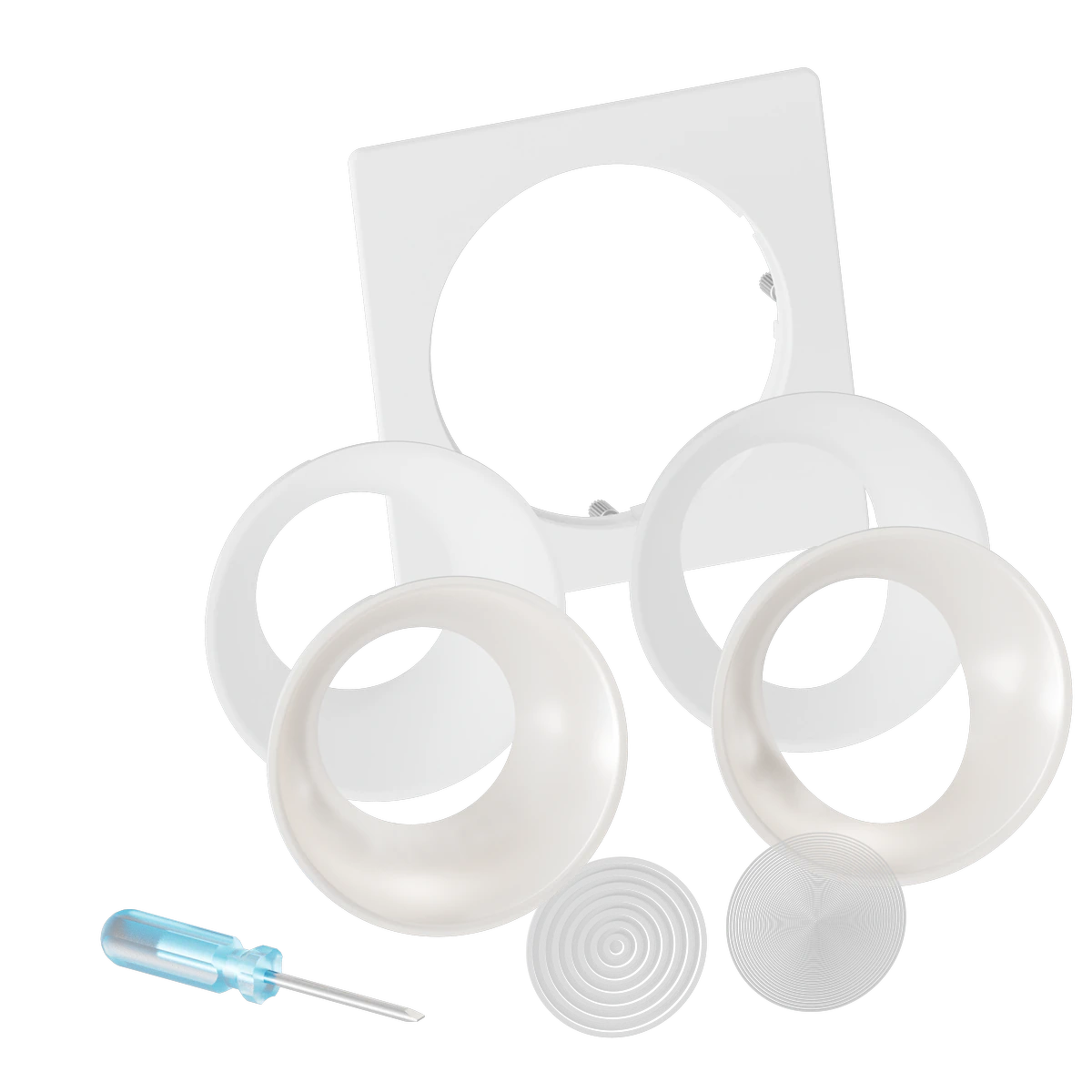

SQUARE TRIM LED KIT - INCLUDES: ADJUSTABLE COB LED MODULE FOR DMX/RDM RGBTW 4" DOWNLIGHT, 15W, 1000+ LUMEN (25D), RGB + 2700K - 6000K
Performance
Input Voltage
120-277V AC
Wattage
15 W
CCT
RGBTW
Lumens
1000
Optics (Degree)
25 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20°C (-4°F) to 40°C (104°F) degrees
Finish
White and Warm Haze
Control
DMX
Style
Square
Physical
Weight
2.81 lbs
Certification
Title 24
Y
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
| Item Number | Finish | Input Voltage | CCT | Wattage | Lumens | UOM |
|---|---|---|---|---|---|---|
| PLX-DL4S-DMX-RGBTW-LED-WH | White and Warm Haze | 120-277V AC | RGBTW | 15 W | 1000 | Each |
