Channel Ray 6000K 3LED 24v DC
SKU
PLX-CR365-60K-24V

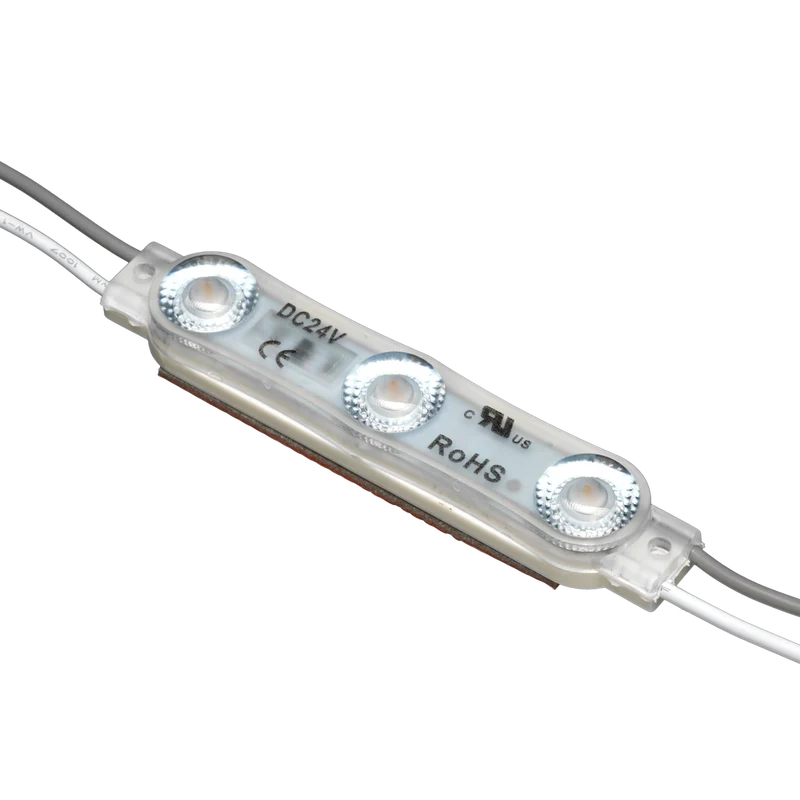

LED Channel Ray, SMD 2835 6000K LED x3, 20pcs per string, 24VDC
Performance
Input Voltage
24V DC
UV Inhibitor
N
Wattage
1.08 W/module
CCT
6000K
CRI
≥70
Lumens
68
Cut Increment
5 in
Max Run
20 units
Optics (Degree)
170 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-25C (-13F) to 60C (140F) degrees
Finish
White
Style
3LED
Quantity
20
Spacing
6in
Physical
Weight
0.50 lbs
Width
0.57 Inch
Length
170 Inch
Height
0.32 Inch
Certification
Safety Rating
cURus Recognized
IP Rating
IP66
Location Rating
Damp
Indoor
Y
Outdoor
Y
ROHS
Y
| Item Number | Length | Finish | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
| PLX-CR365-60K-24V | 170 Inch | White | 24V DC | 6000K | ≥70 | 1.08 W/module | 68 | 20 units | IP66 | Each |
