Channel Ray 3000K 3LED 24v DC

SERIES
PLX-CR365-30K-24V

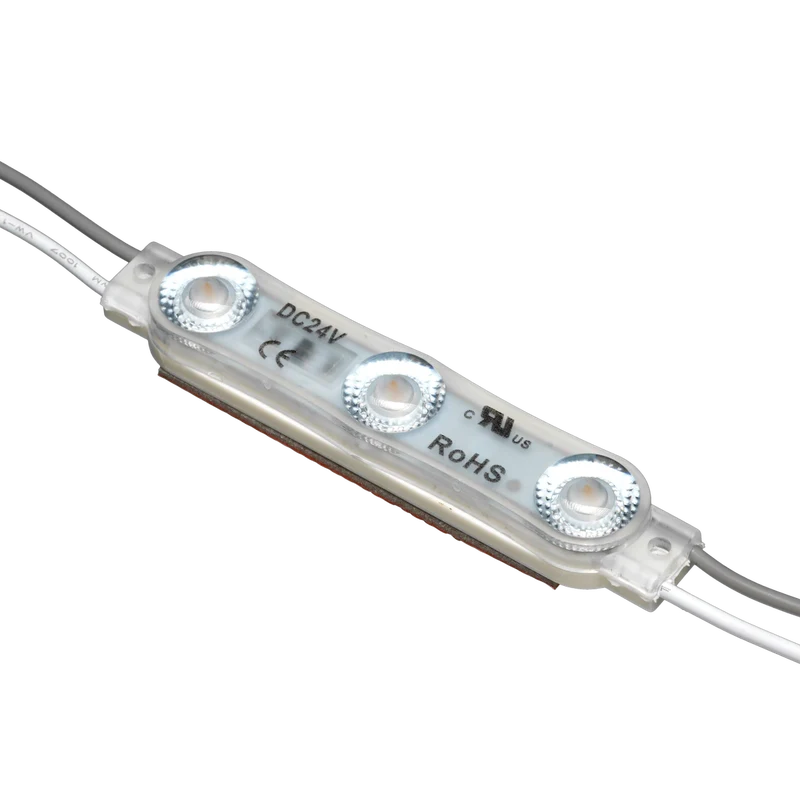

LED Channel Ray, SMD 2835 3000K LED x3, 20pcs per string, 24VDC
Channel Ray 3000K 3LED 24v DC
Channel Ray 3000K 3LED 24v DC Channel Ray 3000K 3LED 24v DC Channel Ray 3000K 3LED 24v DC Channel Ray 3000K 3LED 24v DC

Performance

Input Voltage
24V DC
UV Inhibitor
N
Wattage
1.08 W/module
CCT
3000K
CRI
≥70
Lumens
68
Cut Increment
5 in
Max Run
20 units
Optics (Degree)
170 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-25C (-13F) to 60C (140F) degrees
Finish
White
Style
3LED
Spacing
5 Inch

Physical

Weight
0.50 lbs
Width
0.57 Inch
Length
170 Inch
Height
0.32 Inch

Certification

Safety Rating
cURus Recognized
IP Rating
IP66
Location Rating
Damp
Indoor
Y
Outdoor
Y
ROHS
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-CR365-30K-24V 170 Inch 24V DC 3000K ≥70 1.08 W/module 68 20 units IP66 Each
