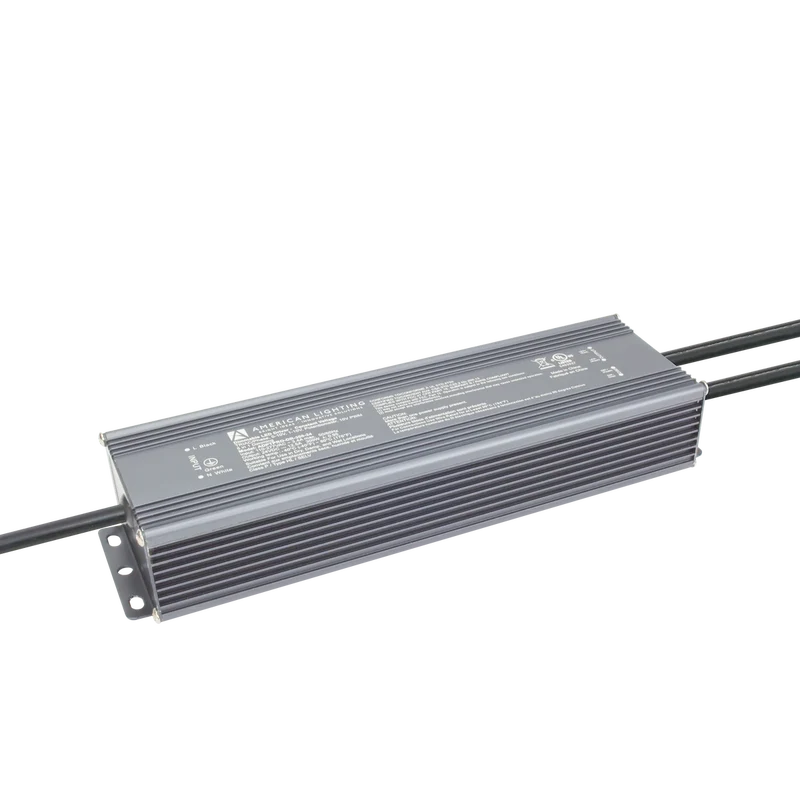

Adaptive PRO Driver 300 Watts 24V DC

SERIES
PLX-ADPTPRODR24V-300
The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure Suitable for outdoor locations. 300W 24V DC constant voltage hardwire driver Class I metal housing (Type HL) 5-in-1 Forward and Reverse Phase Dimming: ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer Short circuit, over-voltage, over-temperature, overload protections 8” (SJTW) Lead & Tail Wire Class P / Type HL / FCC Compliant cULus Listed - Wet location rated
Adaptive PRO Driver 300 Watts 24V DC
Adaptive PRO Driver 300 Watts 24V DC

Performance

Input Voltage
100-277V AC
Output Voltage
24V DC
Input Frequency
47-63 Hz
Output Frequency
2.5A
Wattage
300 W
Power Factor
0.99@120VAC 0.95@277VAC
Minimum Load
30 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black

Physical

Weight
3.90 lbs
Width
3.07 Inch
Length
10.8 Inch
Height
1.85 Inch

Certification

Safety Rating
cULus Listed
Type IC
Y
Airtight
Y
Location Rating
Wet
Indoor
Y
Outdoor
Y
ROHS
Y
FCC
Y
Item Number Length Input Voltage Wattage UOM
PLX-ADPTPRODR24V-300 10.8 Inch 100-277V AC 300 W Each

Specification Sheets

Video

Adaptive Pro 5-IN-1 Dimmable Drivers Product Tour
