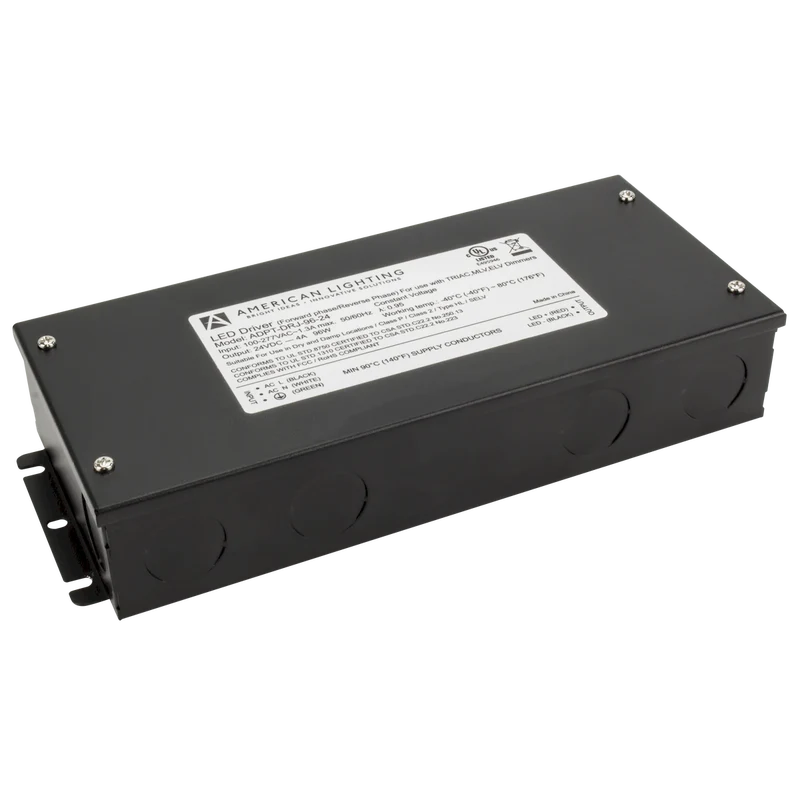

Adaptive Driver with Enclosed Leads and KNckouts 96 Watts 24V DC

SERIES
PLX-ADPTDRJ24V-96
The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations. 24V DC Constant voltage 96W hardwire LED drivers Dimmable with ELV, MLV, & Incandescent TRIAC dimmers (9.6W min. load) Forward phase & reverse phase compatible Short circuit, over-load, and over temperature protections Slim compact housing design - Less than 1-5/8" in height Class II / cULus Listed - Wet location rated
Adaptive Driver with Enclosed Leads and KNckouts 96 Watts 24V DC
Adaptive Driver with Enclosed Leads and KNckouts 96 Watts 24V DC Adaptive Driver with Enclosed Leads and KNckouts 96 Watts 24V DC Adaptive Driver with Enclosed Leads and KNckouts 96 Watts 24V DC

Performance

Input Voltage
100-277V AC
Output Voltage
24V DC
Output Frequency
4A
Wattage
96 W
Power Factor
0.98@120V 0.96@277V
Minimum Load
9.6 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black

Physical

Weight
3 lbs
Width
3.54 Inch
Length
8.66 Inch
Height
1.61 Inch

Certification

Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
Item Number Length Input Voltage Wattage UOM
PLX-ADPTDRJ24V-96 8.66 Inch 100-277V AC 96 W Each

Specification Sheets

Adaptive Driver 96W
Video

ADPT Adaptive Drivers Product Tour
