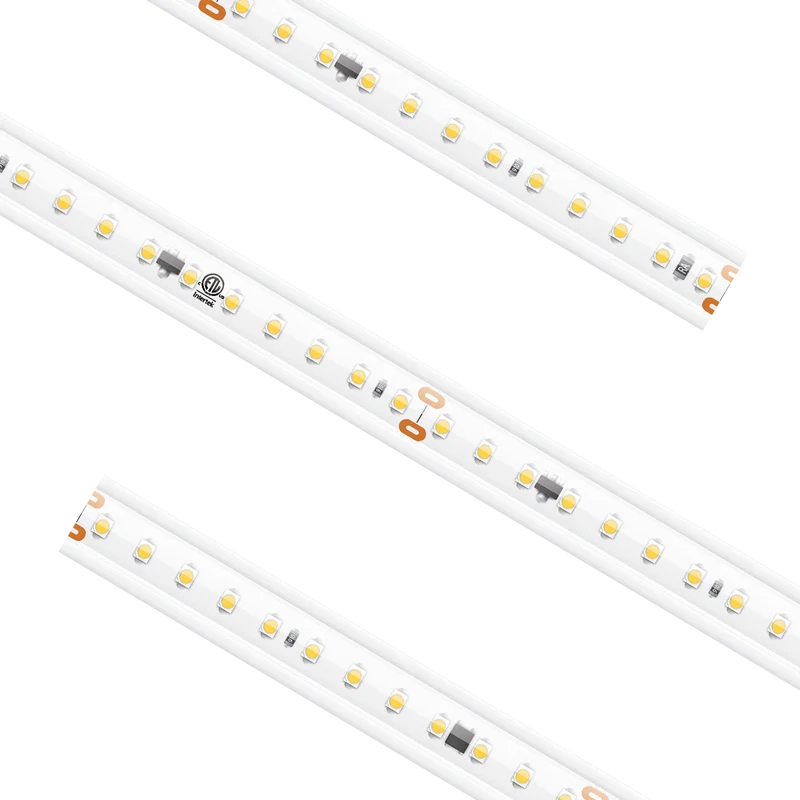

Hybrid 3 150ft Reels Static White
SERIES
C-PLX-H3
Superb light output for indoor and outdoor use. Parallel wiring in 4” cutting increments ensures that if one LED goes out, the rest of the LEDs continue to operate. Offering up to 330 lumens per foot, Hybrid 3 takes a noticeable jump in brightness over the previous version, making it an effective and energy efficient option for hospitality, home theater, and other various entertainment applications.
Performance
Input Voltage
120V AC
CCT
3000K / 5000K
Finish
White
Wattage
4W/ft
Optics (Degree)
120 Degrees
CRI
90+
Cut Increment
4 Inch (cETLus List Inchg void when cut Inch field)
Max Run
164ft
Rated Life (Hr)
30,000 Hours
Temperature Range
-30°C (-22°F) to 45°C (113°F)**
Dimming
Dimmable (10-100%) with most CL, ELV dimmers
Lumens
330Lm/ft
Certification
Safety Rating
cETLus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-H365-120VAC-30K-150 | 150 Foot | 120V AC | 3000K | 90+ | 4 W/ft | 315 | 164 ft | IP65 | Each |
| PLX-H365-120VAC-40K-150 | 150 Foot | 120V AC | 4000K | 90+ | 4 W/ft | 320 | 164 ft | IP65 | Each |
