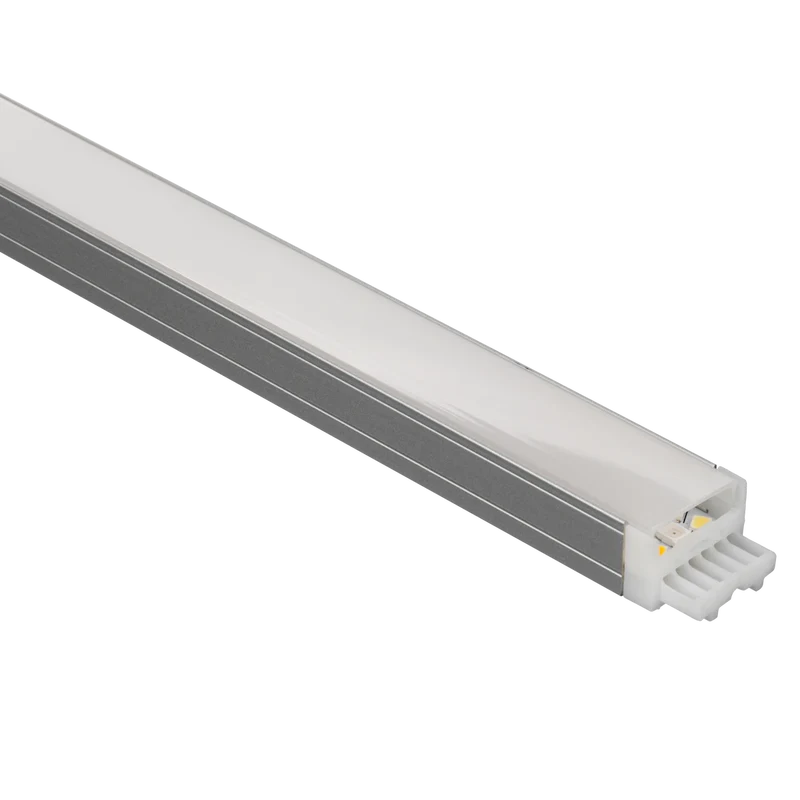

Microlink RGB+TW Seamless Bar Light
SERIES
C-PLX-MLINK-RGBTW
The MicroLink RGB+TW is a quick and easy solution for undercabinet and task lighting. Modular and easy to connect, the MicroLink RGB+TW allows for customizable layout configuration as well as full-sectrum color choice. Elevate task lighting and bring vibes to any room by adding a pop of color to the environment or adjusting the white light CCT to match the occasion.
Performance
Input Voltage
24V DC
CCT
RGBTW (2700K-6000K)
Finish
Satin Aluminum
Wattage
2.4W per 6in segment
Optics (Degree)
120 Degrees
Max Run
16.4ft
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (5-100%) via DMX or Smart controls (RGB+TW)
Lumens
Up to 765Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Dry
Indoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | UOM |
|---|---|---|---|---|---|---|---|---|
| PLX-MLINK-RGBTW-6 | 6 Inch | 24V DC | RGBTW | 90 | 3.5 W | 228 | 16.4 ft | Each |
| PLX-MLINK-RGBTW-12 | 12 Inch | 24V DC | RGBTW | 90 | 7 W | 455 | 16.4 ft | Each |
| PLX-MLINK-RGBTW-24 | 24 Inch | 24V DC | RGBTW | 90 | 14 W | 910 | 16.4 ft | Each |
