Minuet 6X6 Static White

SERIES

C-PLX-MIN6X6

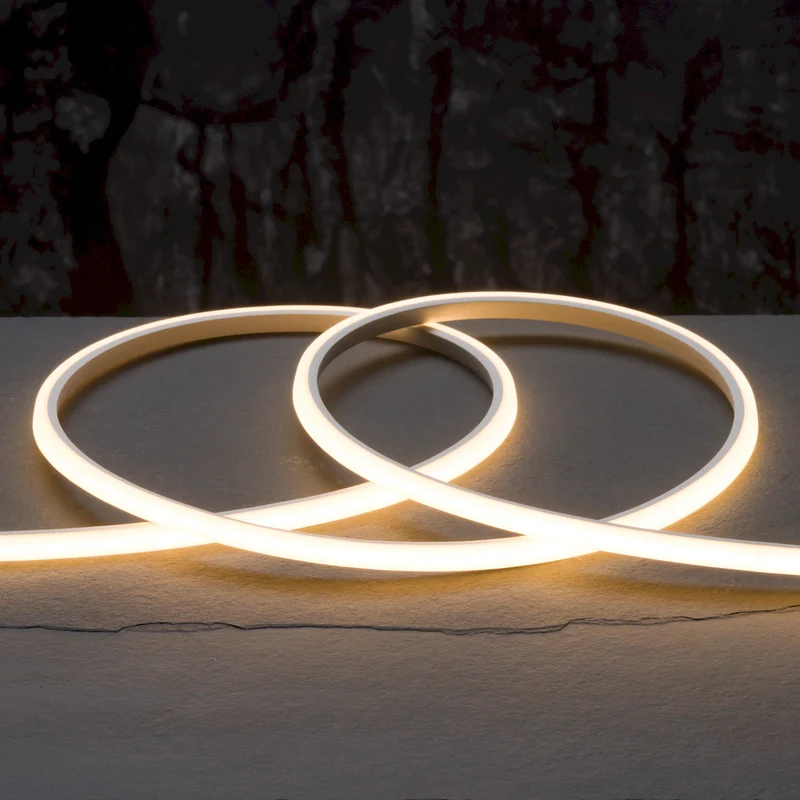

Featuring fully encased tape light, Minuet provides smooth evenly diffused light that eliminates the needs for additional extrusion housings and lenses. With light emitting from three sides, Minuet is a unique product that can be used in small spaces, or be placed on in direct view to meet the needs of dynamic lighting installations.

Low-profile, flexible light strip in 6x6 top bend
UV, flame, and saltwater resistant (IP65) silicone coating
Long life LEDs produce high lumen output
Durable housing with 2.36” bending radius
Cuttable anywhere with a maximum run of 16.4 feet
Dimmable with most TRIAC, ELV, or CL dimmers
Suitable for woodwork & cabinetry, coves, frame, bars, rails, and other areas where a small profile or outline of light is needed
cULus Listed for wet locations

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 4000K

Finish

White

Wattage

2.43W/ft

Optics (Degree)

120 Degrees

Cut Increment

Cut Anywhere

Max Run

16.4ft

Rated Life (Hr)

50,000 Hours

Temperature Range

-40°C (-40°F) to 55°C (131°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

158-182Lm/ft

Certification

Safety Rating

cULus Listed

IP Rating

IP65

Location Rating

Wet

Indoor

Outdoor

Item Number	Length	Finish	Input Voltage	CCT	Max Run	UOM
PLX-MIN6X6-67-24V-27-16	16.4 Foot	White	24V DC	2700K	16.4 ft	Each
PLX-MIN6X6-67-24V-30-16	16.4 Foot	White	24V DC	3000K	16.4 ft	Each
PLX-MIN6X6-67-24V-40-16	16.4 Foot	White	24V DC	4000K	16.4 ft	Each
