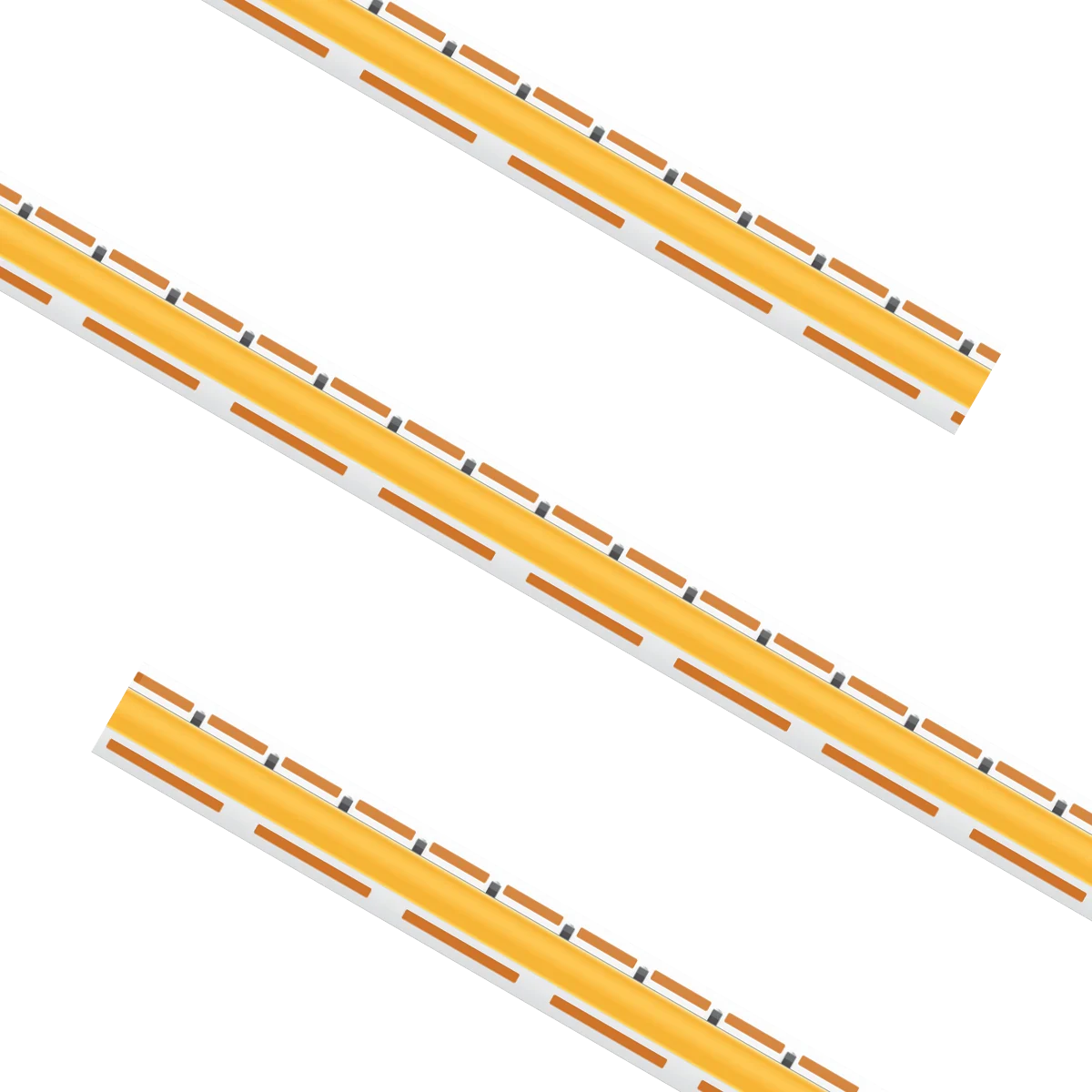

High Output COB Cut Anywhere Tape Light Static White

SERIES

C-PLX-HTL-COBFC

COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

Seamless COB design that eliminates virtually all LED dotting
Available in 2700K, 3000K, 3500K, 4000K, and 5000K
90+ color rendering index
Lumen output ranging from 240Lm to 260Lm per foot
Cuttable anywhere with 16.4ft max run
Easy installation featuring 3M VHB adhesive backing
Available in IP54 coated ratings
Dimmable (5-100%) with most ELV, TRIAC dimmers
Indoor dry/damp locations
JA8 Compliant
50,000 hours rated life

High Output COB Cut Anywhere Tape Light Static White

Specifications

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K / 5000K

Wattage

3W/ft

Optics (Degree)

120 degrees

CRI

90+

Cut Increment

Cut Anywhere

Max Run

16.4ft

Rated Life (Hr)

50,000 Hours

Temperature Range

5°C (41°F) to 70°C (158°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

260Lm/ft

Certification

Safety Rating

cULus Listed

Ordering Information

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
PLX-HTL54-COBFC-27K-24V-16	16.4 Foot	24V DC	2700K	90	3 W/ft	240	16.4 ft	IP54	Each
PLX-HTL54-COBFC-30K-24V-16	16.4 Foot	24V DC	3000K	90	3 W/ft	250	16.4 ft	IP54	Each
PLX-HTL54-COBFC-35K-24V-16	16.4 Foot	24V DC	3500K	90	3 W/ft	255	16.4 ft	IP54	Each
PLX-HTL54-COBFC-40K-24V-16	16.4 Foot	24V DC	4000K	90	3 W/ft	260	16.4 ft	IP54	Each
PLX-HTL54-COBFC-50K-24V-16	16.4 Foot	24V DC	5000K	90	3 W/ft	260	16.4 ft	IP54	Each
