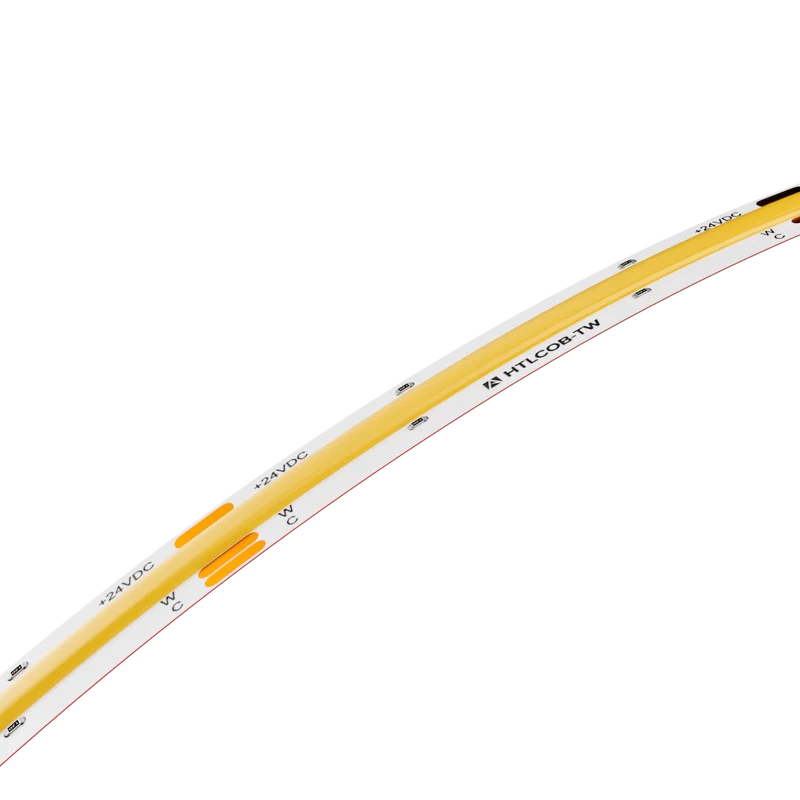

High Output COB Tape Light Tunable White
SERIES
C-PLX-HTL-COB-TW
Need custom color temperature lighting at the turn of a dial? Tunable CCT series is a great option when on the fly color adjustment is a must, or when single CCT options just wont cut it. Adjust color temps from 2700K to 6000K and everything in between to create elegant lighting catered to times of day or application setting.
Performance
Input Voltage
24V DC
CCT
2700K-6000K
Wattage
4.5W/ft
Optics (Degree)
120 degrees
CRI
90+
Cut Increment
2.46 Inch
Max Run
16.4ft
Rated Life (Hr)
50,000 Hours
Temperature Range
5°C (41°F) to 70°C (158°F)
Lumens
400Lm/ft
Certification
Safety Rating
cULus Listed
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL54-COB-TW-24V-16 | 16.4 Foot | 24V DC | 2700K-6000K | 90+ | 4.5 W/ft | 400 | 16.4 ft | IP54 | Each |
| PLX-HTL54-COB-TW-24V-CC | Custom Cut | 24V DC | 2700K-6000K | 90+ | 4.5 W/ft | 400 | 16.4 ft | IP54 | Foot |
Instruction Manuals
A STEP-BY-STEP GUIDE FOR YOUR NEXT TAPE LIGHT PROJECT IS HERE.
ACE, American Lighting’s product configurator offers a simple step-by-step guide to walk you through your tape light project. Made to be used by beginners and lighting professionals alke ACE assures that you have a complete list of materials for a beautiful linear lighting installation.
LEARN MORE
