Spec Grade COB Tape Light Static White

SERIES

C-PLX-SPTL-SCOB

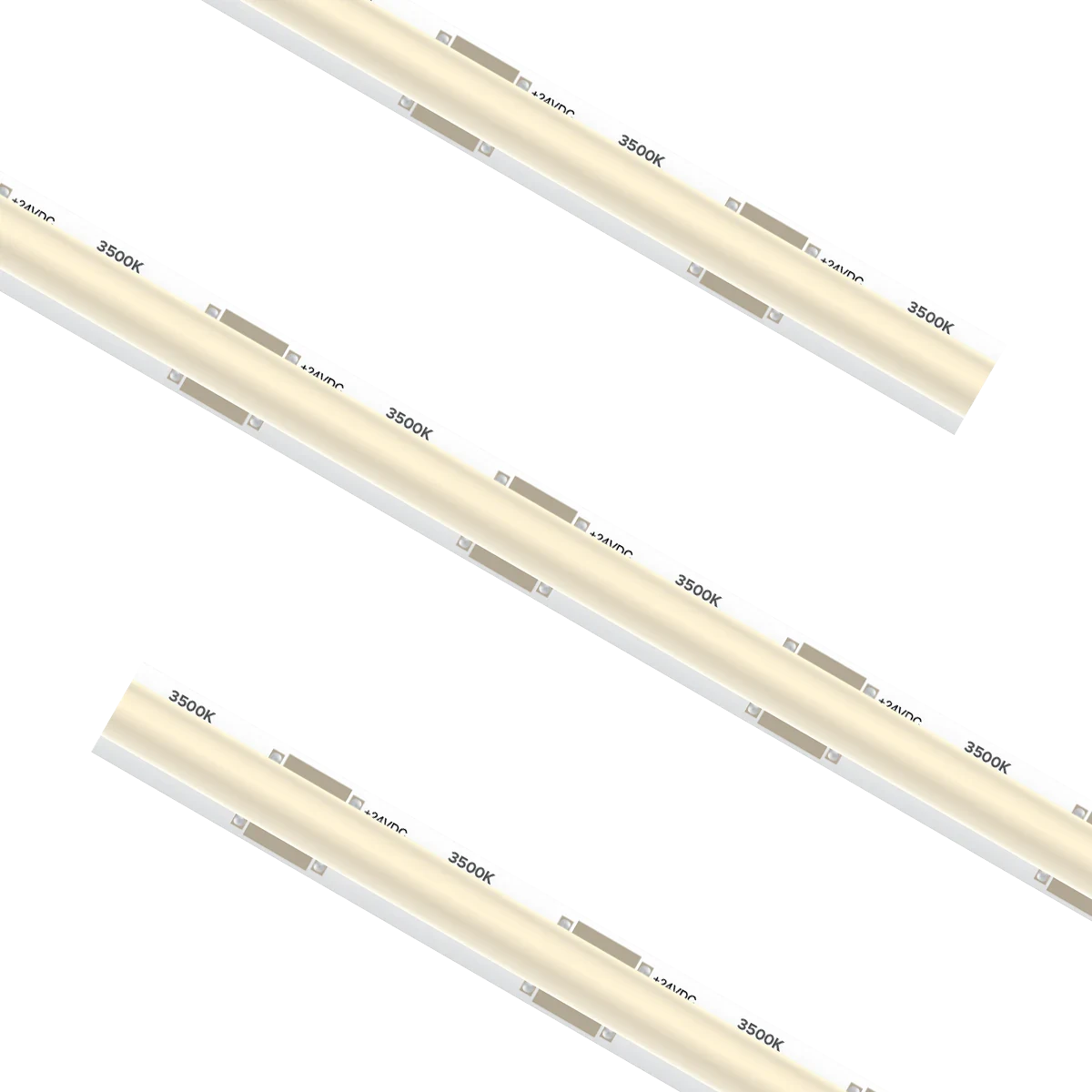

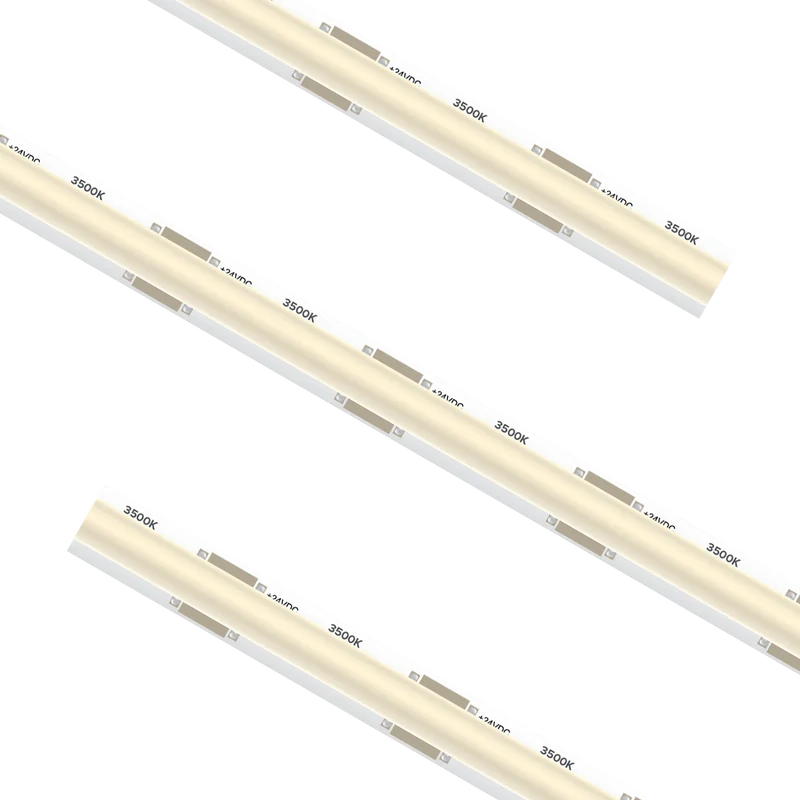

SMD COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

Seamless COB design that eliminates virtually all LED dotting
Available in 2700K, 3000K, 3500K, 4000K, and 5000K
90+ color rendering index
Lumen output ranging from 670Lm to 730Lm per foot
Cuttable every 1.31” (33mm) with 16.4ft max run
Easy installation featuring 3M VHB adhesive backing
Available in IP54 coated
Dimmable (5-100%) with most ELV, TRIAC dimmers
Indoor dry / damp (IP54) locations
35,000 hours rated life

Specifications

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K / 5000K

Wattage

5.85W/ft

Optics (Degree)

120 degrees

CRI

90+

Cut Increment

1.31 Inch

Max Run

16.4ft

Rated Life (Hr)

35,000 Hours

Temperature Range

5°C (41°F) to 70°C (158°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

730Lm/ft

Certification

Safety Rating

cULus Listed

Ordering Information

Item Number	Input Voltage	CCT	Wattage	Lumens	Max Run	IP Rating	UOM
PLX-SPTL54-SCOB-27K-24V-16	24V DC	5000K	3 W/ft	260	16.4 ft	IP54	Each
PLX-SPTL54-SCOB-30K-24V-16	24V DC	2700K	5.85 W/ft	670	16.4 ft	IP54	Each
PLX-SPTL54-SCOB-35K-24V-16	24V DC	3000K	5.85 W/ft	700	16.4 ft	IP54	Each
PLX-SPTL54-SCOB-40K-24V-16	24V DC	3500K	5.85 W/ft	720	16.4 ft	IP54	Each
PLX-SPTL54-SCOB-50K-24V-16	24V DC	4000K	5.85 W/ft	730	16.4 ft	IP54	Each
