High Density Canvas Sheet 12x24 Tunable White

SKU
PLX-CNVSHD54-TW-24V-12x24

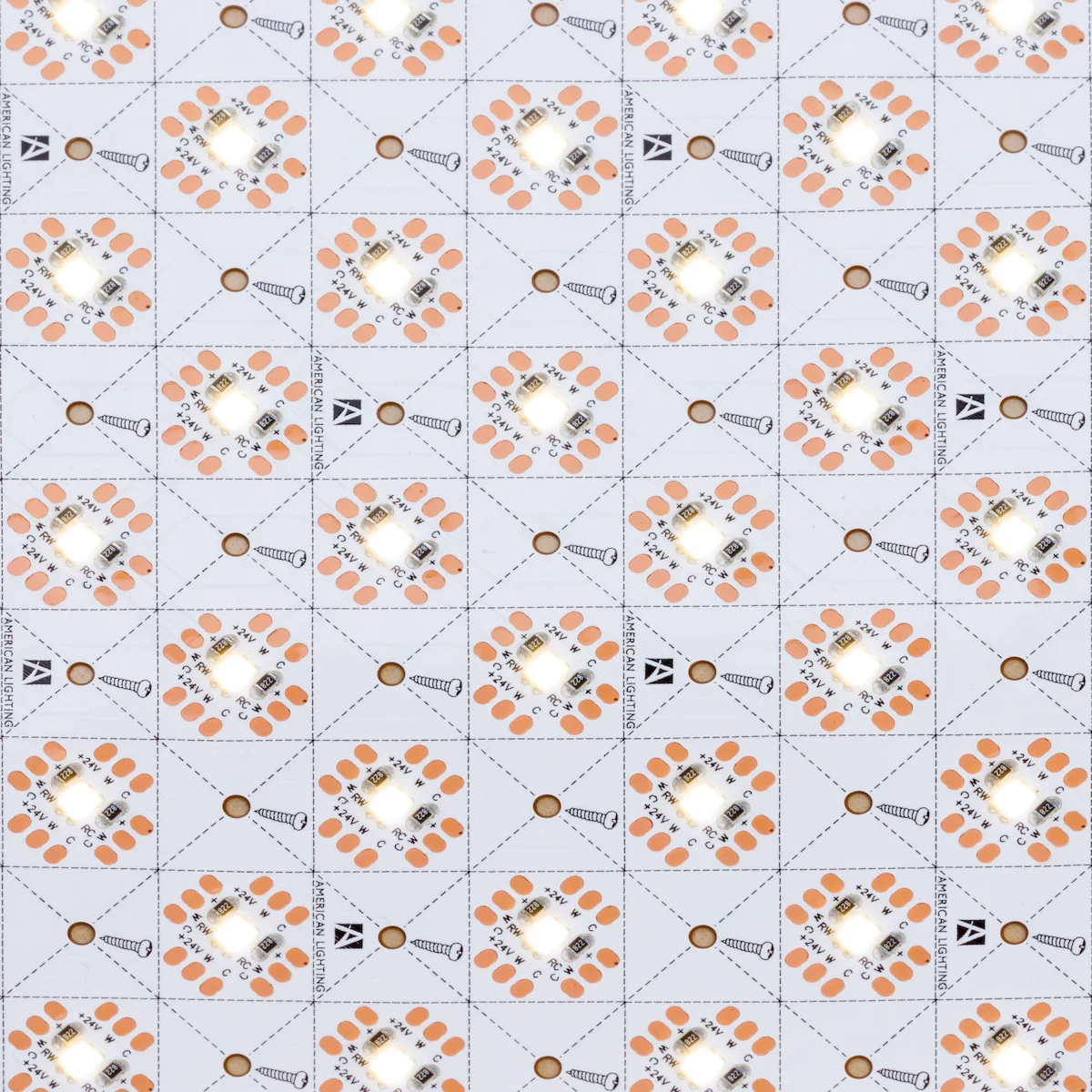

The Canvas High Density Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet along the marked sections at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.

  • Tunable CCT 2700K to 6000K Color Tuning
  • Ideal for backlighting semi-translucent materials
  • Up to 1850Lm output performance per sheet
  • Available in 12”H x 24”W sheet size
  • Field cuttable on-site for an accurate fit
  • 0.75” x 0.75” Cuttability and LED spacing
  • 3M peel and stick backing for quick installation
  • Built-in terminal ports make it easy to run power from any side
  • Each 1/2” stand-off is rated up to 35lb load (220lbs per sheet)
High Density Canvas Sheet 12x24 Tunable White
High Density Canvas Sheet 12x24 Tunable White High Density Canvas Sheet 12x24 Tunable White High Density Canvas Sheet 12x24 Tunable White High Density Canvas Sheet 12x24 Tunable White

Performance

Input Voltage
24V DC
CCT
TW
CRI
90
Lumens
1850
Cut Increment
0.75 in

Physical

Weight
3.33 lbs
Item Number Input Voltage CCT CRI Lumens UOM
PLX-CNVSHD54-TW-24V-12x24 24V DC TW 90 1850 CS2
