Hybrid 3 120VAC Kits
SERIES
C-PLX-H3-KIT

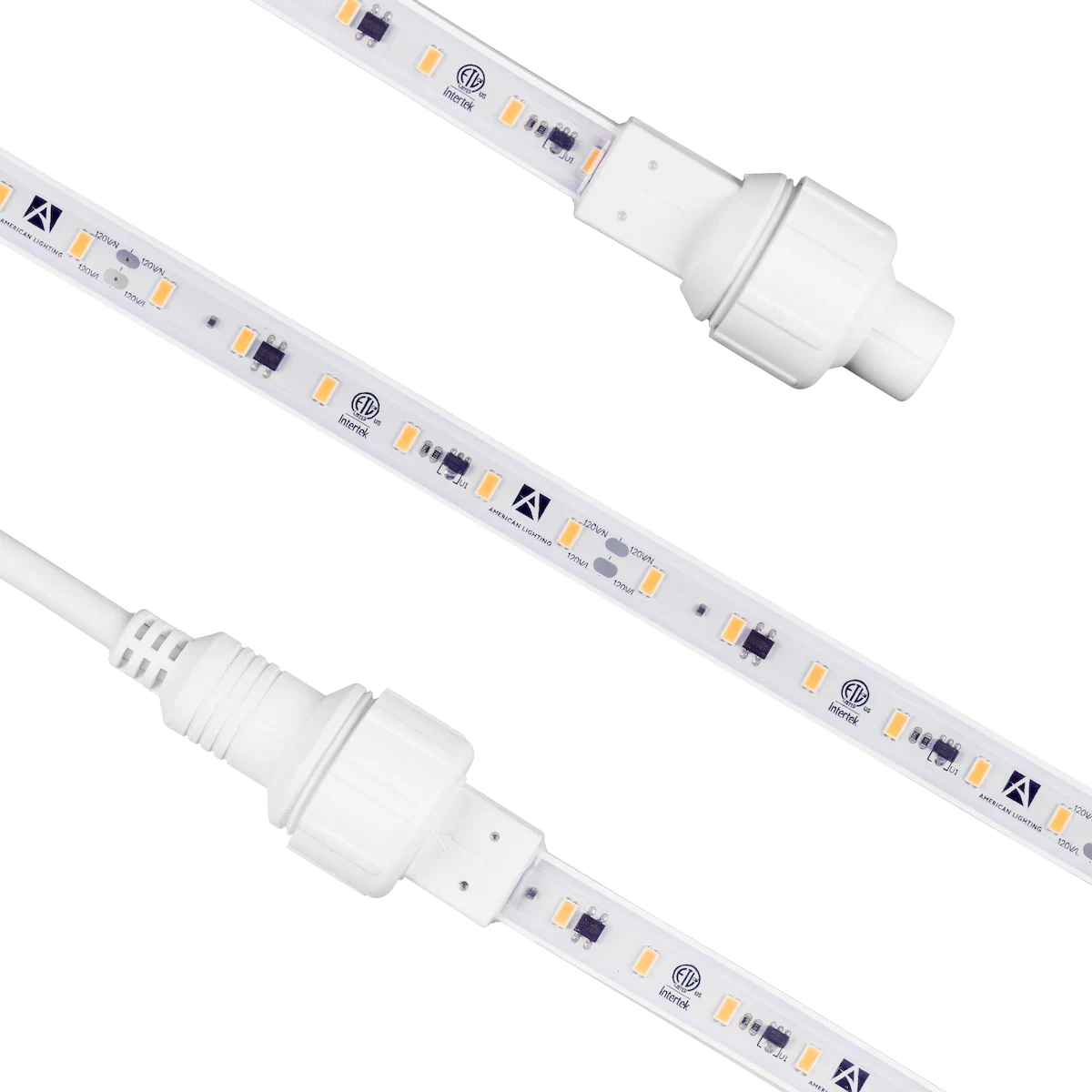

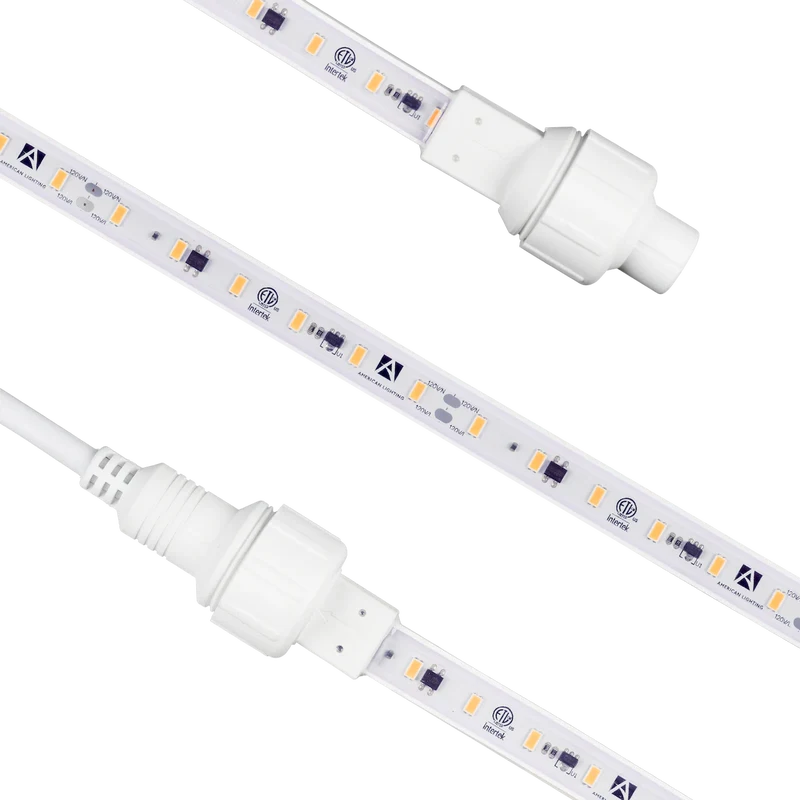

Superb light output for indoor and outdoor use. Parallel wiring in 4” cutting increments ensures that if one LED goes out, the rest of the LEDs continue to operate. Offering up to 330 lumens per foot, Hybrid 3 takes a noticeable jump in brightness over the previous version, making it an effective and energy efficient option for hospitality, home theater, and other various entertainment applications.
- Driver on-board technology (no rectifier on cord)
- Up to 320 lumens per foot and 90+ CRI for 3000K (WW) and 4000K (WH) reels
- Preset lengths consume only 4 watts per foot
- Dimmable with most CL and ELV dimmers
- Interconnectable lengths make installation fast and simple
- Economical for larger installations - no need for a driver (164ft max run)
- ETL Listed† (void if product is cut in field)
- Suitable for indoor and outdoor use
- Minimum bend radius of 3.9”
Performance
Input Voltage
120V AC
CCT
3000K / 4000K
Finish
White
Wattage
4W/ft
Optics (Degree)
120 Degrees
CRI
90+
Max Run
164ft
Rated Life (Hr)
30,000 Hours
Temperature Range
-30°C (-22°F) to 45°C (113°F)**
Dimming
Dimmable (10-100%) with most CL, ELV dimmers
Lumens
320Lm/ft
Certification
Safety Rating
cETLus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
