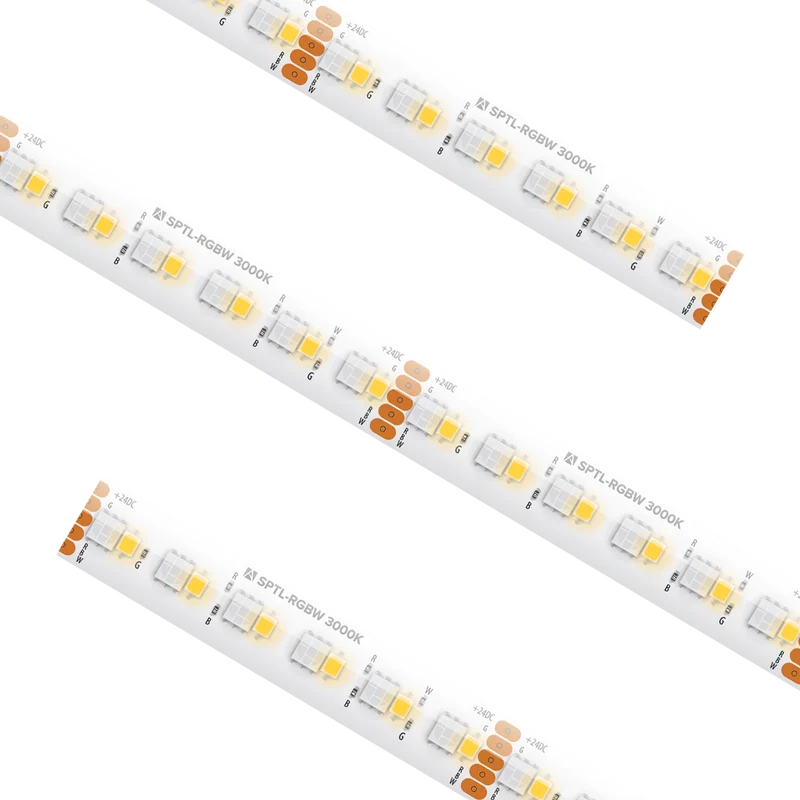

Spec Grade Tape Light RGBW
SERIES
C-PLX-SPTL-RGBW
lternating 3-in-1 LEDs with 3000K warm white LEDs provide a dynamic color range that extends passed traditional RGB. RGBW lighting combines RGB with white color mixing to create millions of color possibilities while maintaining even greater brightness and overall color saturation.
Performance
Input Voltage
24V DC
CCT
RGBW (3000K)
Wattage
7W/ft
Optics (Degree)
120 degrees
Cut Increment
2.46 Inch
Max Run
16.4ft
Rated Life (Hr)
50,000 Hours
Temperature Range
5°C (41°F) to 70°C (158°F)
Lumens
350Lm/ft
Certification
Safety Rating
cULus Listed
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-SPTL54-RGBW-24V-16 | 16.4 Foot | 24V DC | RGBW | 90+ | 7 W/ft | 350 | 16.4 ft | IP54 | Each |
Specification Sheets
Trulux Spec Grade RGBW Tape Light Custom CutInstruction Manuals
A STEP-BY-STEP GUIDE FOR YOUR NEXT TAPE LIGHT PROJECT IS HERE.
ACE, American Lighting’s product configurator offers a simple step-by-step guide to walk you through your tape light project. Made to be used by beginners and lighting professionals alke ACE assures that you have a complete list of materials for a beautiful linear lighting installation.
