Monarch
SERIES
C-PLX-MNRC

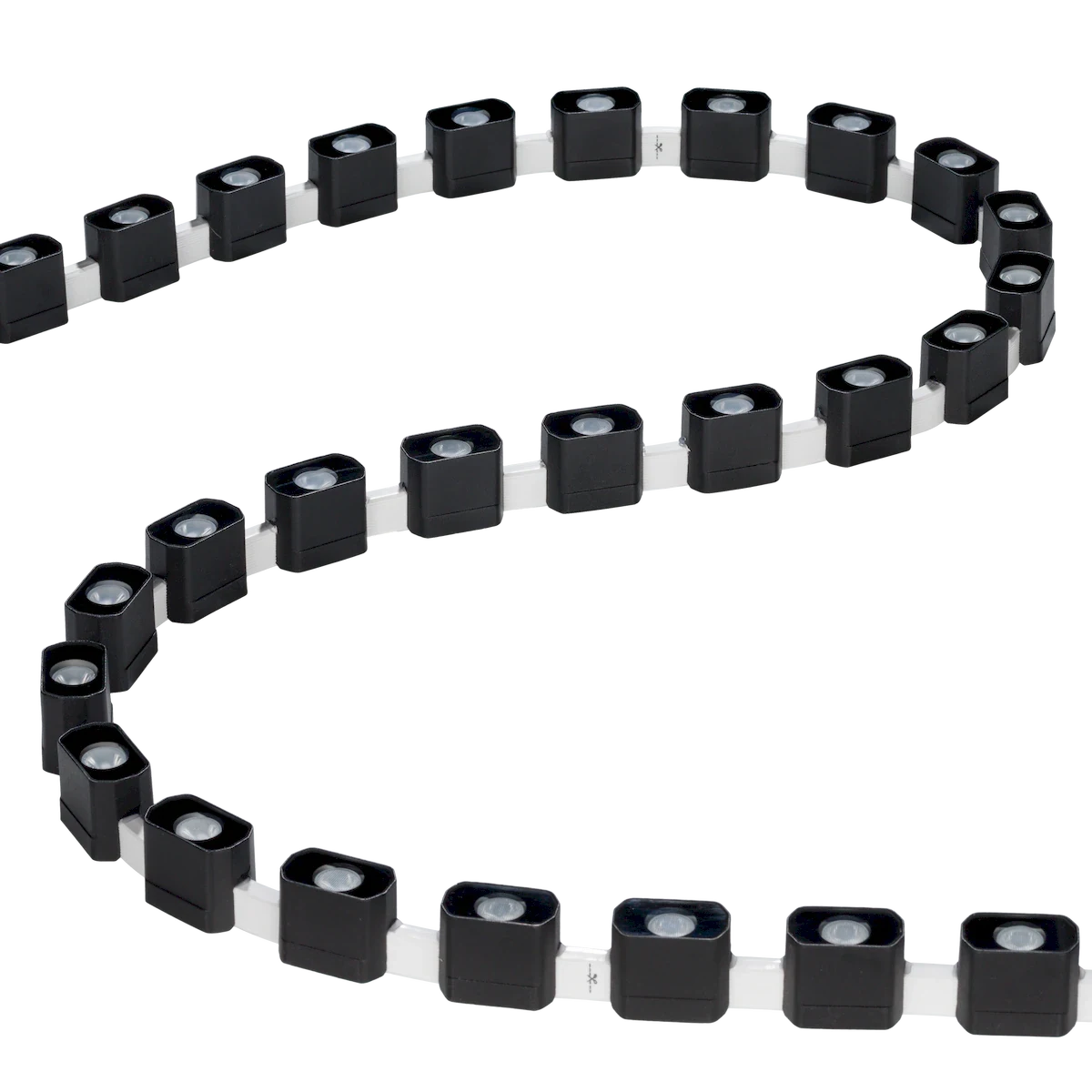

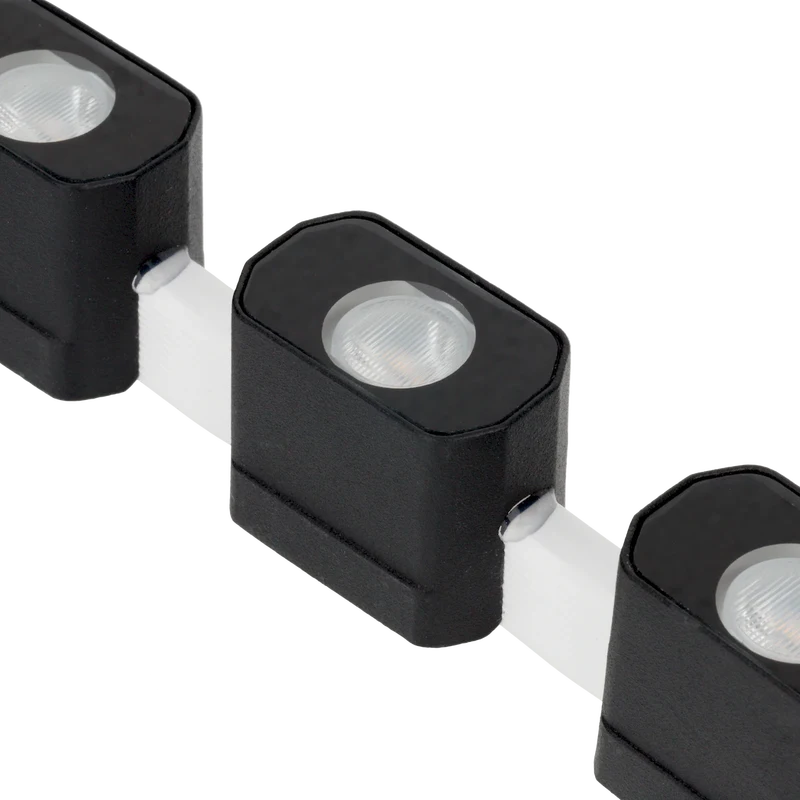

Monarch is a high performance optic based flexible linear light that allows for beam control in wall washing and grazing distributions for limitless design scenarios. Fully encased and rated for outdoor use, Monarch is available in 3000K / 4000K CCT / RGBW with up to 680Lm per foot performance.
- Available in 3000K / 4000K / RGBW color temperatures
- 90+ color rendering index
- Lumen output up to 680Lm per foot
- 20°x45° beam pattern
- Cuttable every 12” with 15.75ft max run
- Features fully encased IP67 rating suitable for outdoor use
- UL Listed for indoor and outdoor use
- 50,000 hours rated life
Performance
Input Voltage
24V DC
CCT
3000K / 4000K / RGBW
Wattage
5.8W/ft
Optics (Degree)
20x45 degrees
CRI
90+
Cut Increment
12 Inch
Max Run
33ft
Rated Life (Hr)
50,000 Hours
Temperature Range
-20°C (-4°F) to 40°C (104°F)
Lumens
680Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | UOM |
|---|---|---|---|---|---|---|---|
| PLX-MNRC65-30K-24V-15 | 24V DC | 3000K | 80 | 11 W/ft | 650 | 15.75 ft | Each |
| PLX-MNRC65-40K-24V-15 | 24V DC | 4000K | 80 | 11 W/ft | 680 | 15.75 ft | Each |
