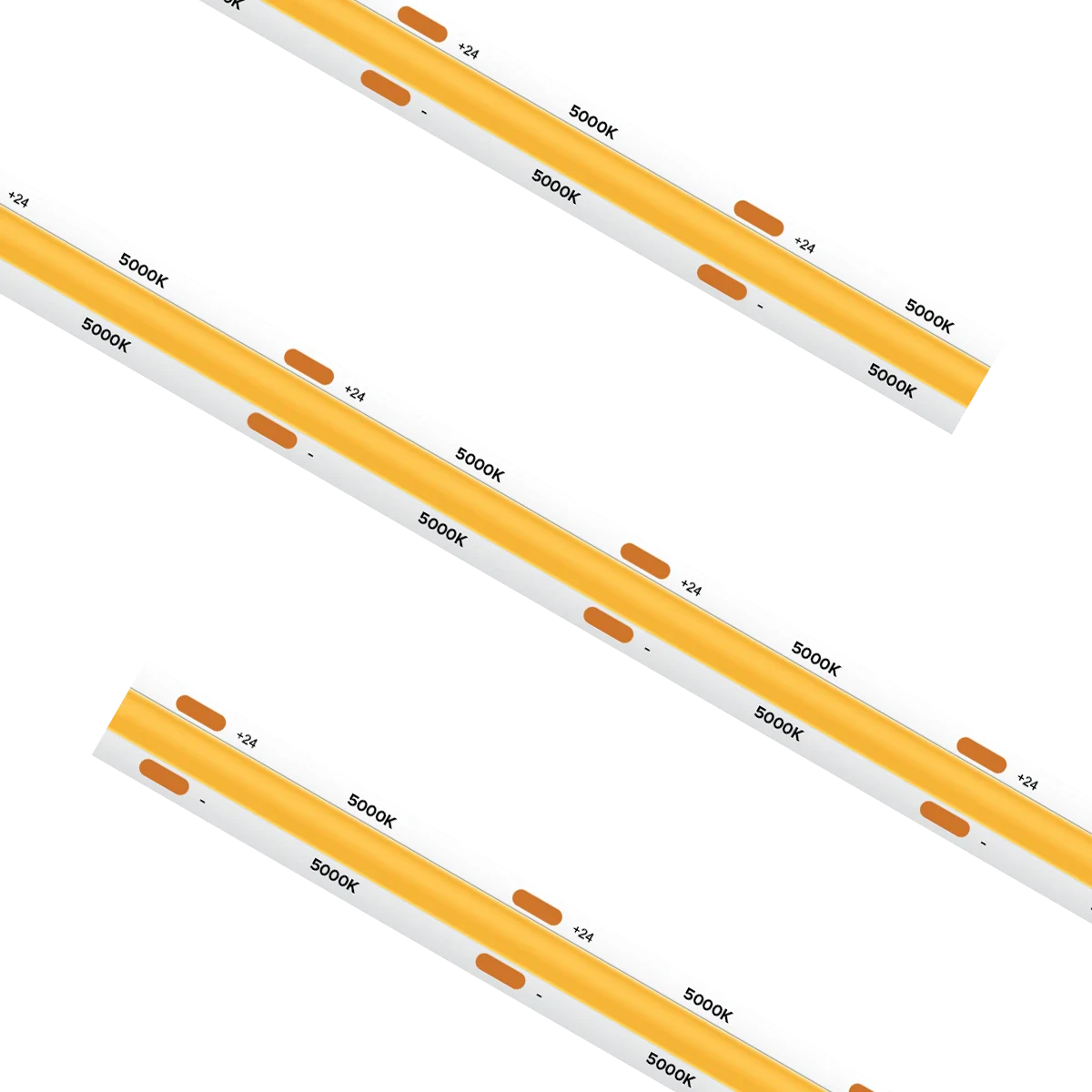

High Output Max Run COB Tape Light
SERIES
C-PLX-HTMR-COB
For large scale projects, the Max Run series provides a more convenient installation by minimizing drivers and connections. Max Run tape is a great tool for lighting coves, corridors, lobbies, and retail spaces featuring a max run length up to 32.8 feet.
- Achieve longer max runs perfect for larger installations while still benefiting from the seamless look of COB
- Excellent color rendering (90+ CRI)
- Up to 280 lumens per foot performance
- Consuming up to 3 watts per foot
- Max run lengths up to 32.8 feet and cuttable every 1.64”
- IP54 rating featuring nano-coating protective layer
- Dimmable (5-100%) with most ELV, TRIAC dimmers
- Indoor dry/damp locations
- 50,000 hours rated life
Performance
Cut Increment
1.64in
Max Run
32.8ft
Rated Life (Hr)
50,000
Temperature Range
-40°C (-40°F) to 60°C (140°F)
Dimming
TRIAC / ELV (5-100%)
Lumens
Up to 280Lm/ft
Certification
Indoor
Y
| Item Number | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|
| PLX-HTMCOB54-27K-24V-65 | 24V DC | 2700K | 3 W/ft | 220 | 32.8 ft | IP54 | Each |
| PLX-HTMCOB54-30K-24V-65 | 24V DC | 3000K | 3 W/ft | 240 | 49.2 ft | IP54 | Each |
| PLX-HTMCOB54-35K-24V-65 | 24V DC | 3500K | 3 W/ft | 250 | 32.8 ft | IP54 | Each |
| PLX-HTMCOB54-40K-24V-65 | 24V DC | 4000K | 3 W/ft | 270 | 32.8 ft | IP54 | Each |
| PLX-HTMCOB54-50K-24V-65 | 24V DC | 5000K | 3 W/ft | 280 | 32.8 ft | IP54 | Each |
