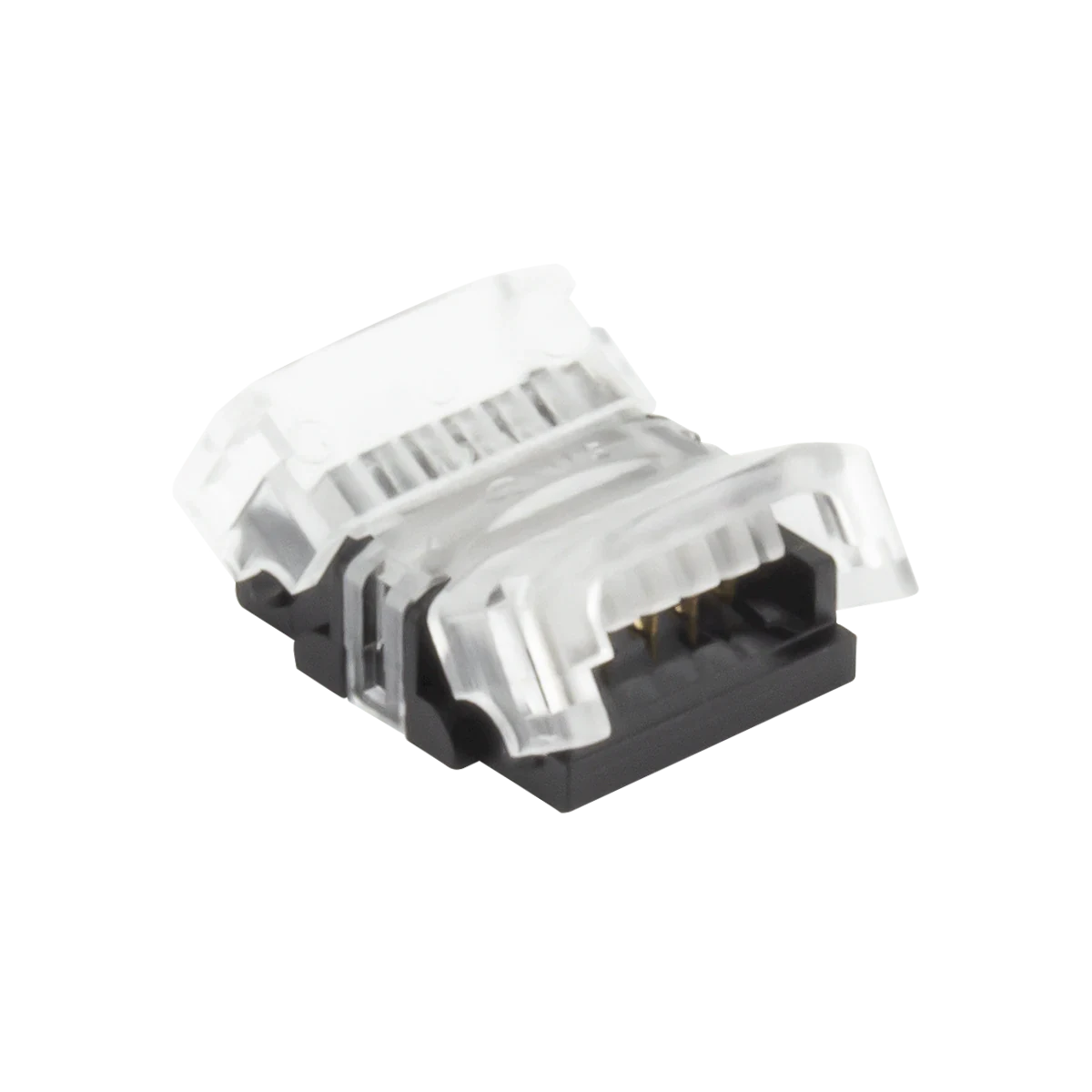

Heavy Duty Snap Connectors
SERIES
C-PLX-HDCON
HD Connectors for Trulux tape light make splicing, jumping or connecting power easy and quick. In just a few simple steps, connect tape light without the need of stripping or soldering wire.
- IP20 rated connector compatible with IP20 and IP54 Trulux tape

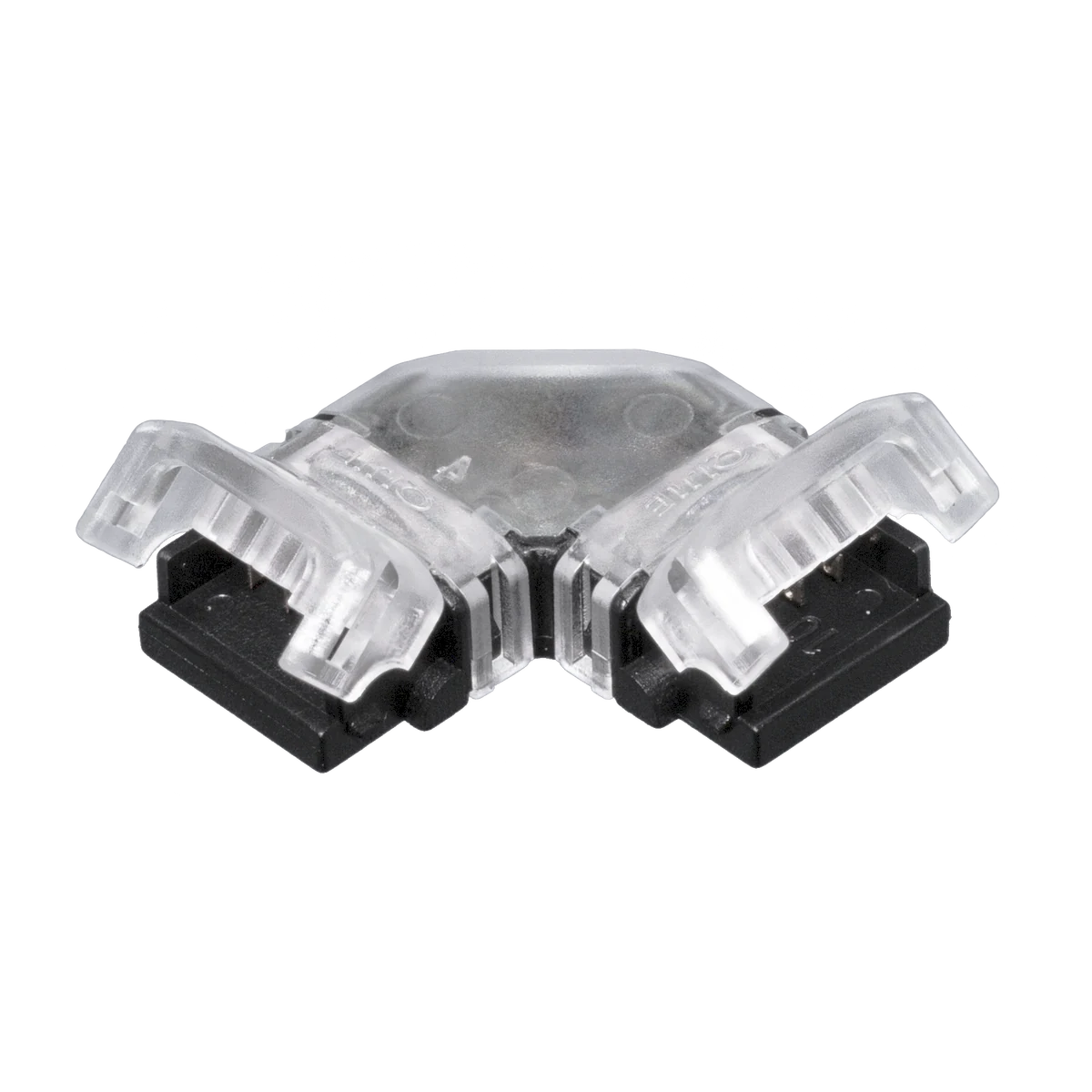

- HD snap connectors availabe in feeds, splices, and jumpers
- Compatible with a variety of Trulux tape light (sold separately)
- Works with 18 to 22 AWG wire (5 wire and 6 wire requires 22 AWG)
- Maximum 4A capacity (3.3A for 6 wire)
| Item Number | Length | Input Voltage | UOM |
|---|---|---|---|

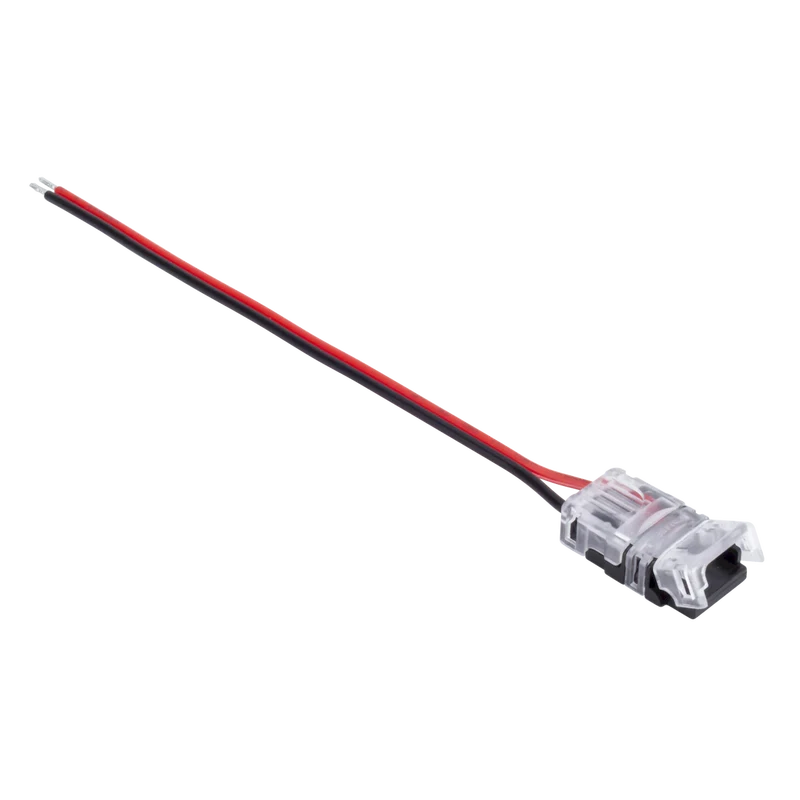

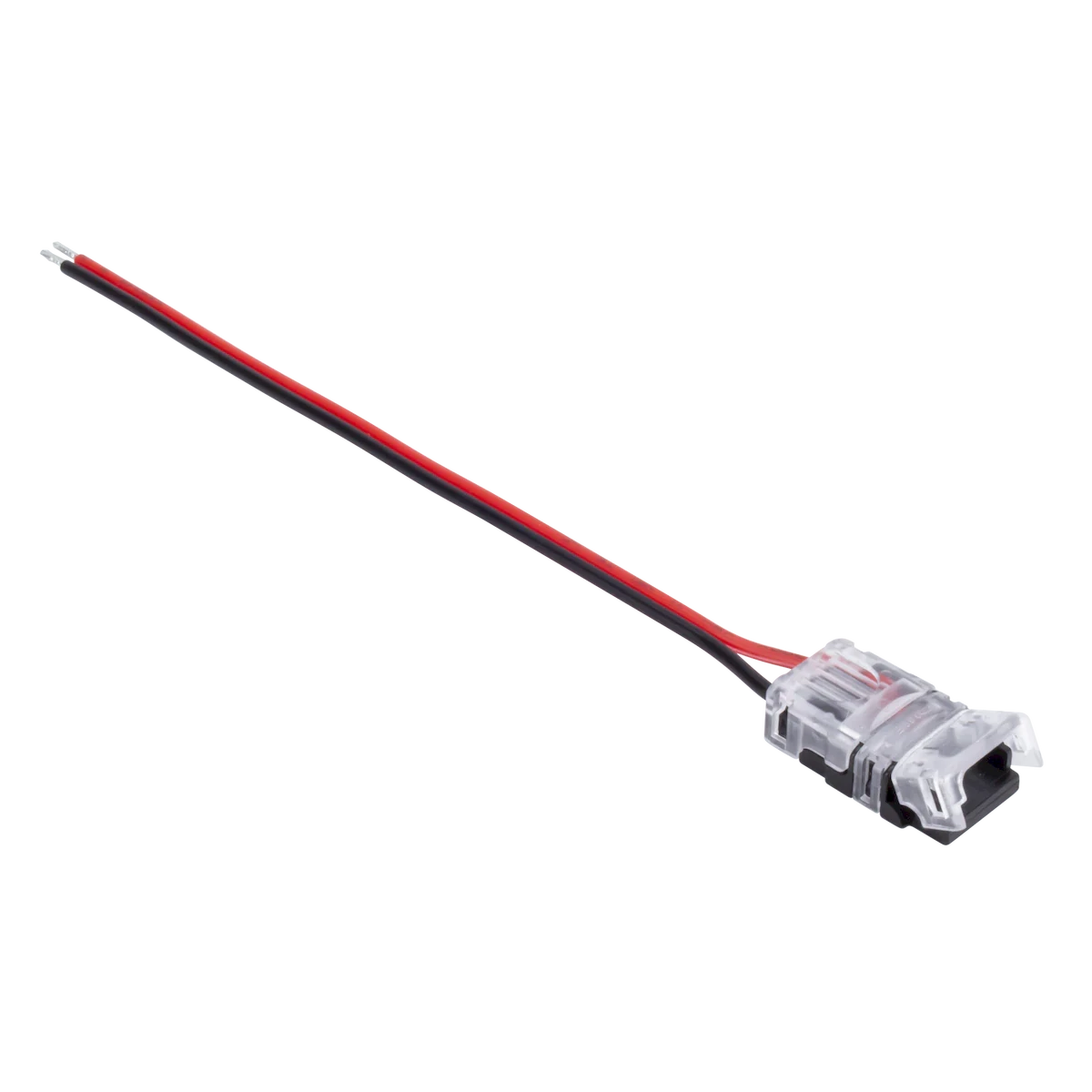

| PLX-TL-HVYDTYACCSRY-SC-PWR-6 | 6 Foot | Each | |
| PLX-TL-HVYDTYACCSRY-SC-PWRDC-6 | 6 Foot | Each | |

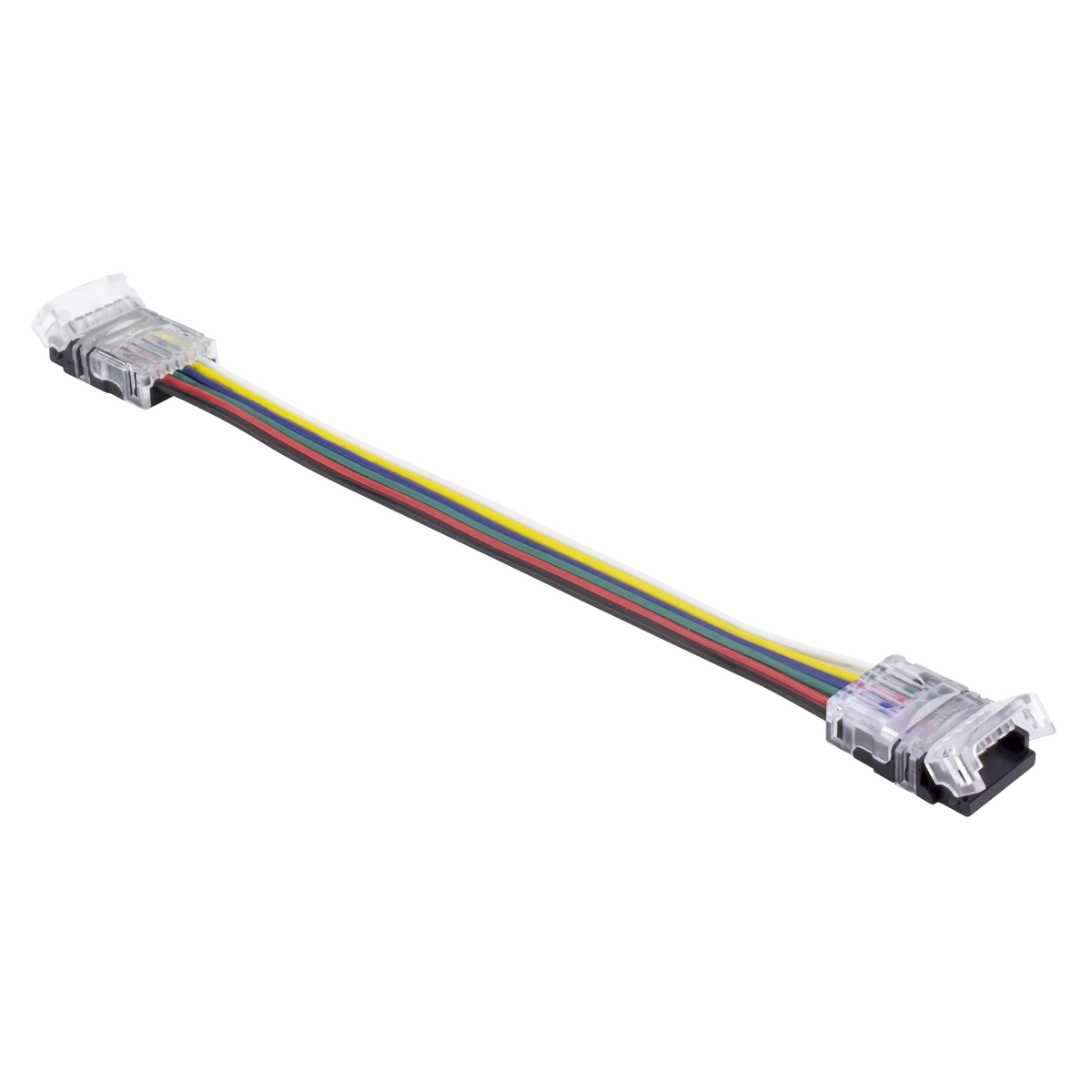

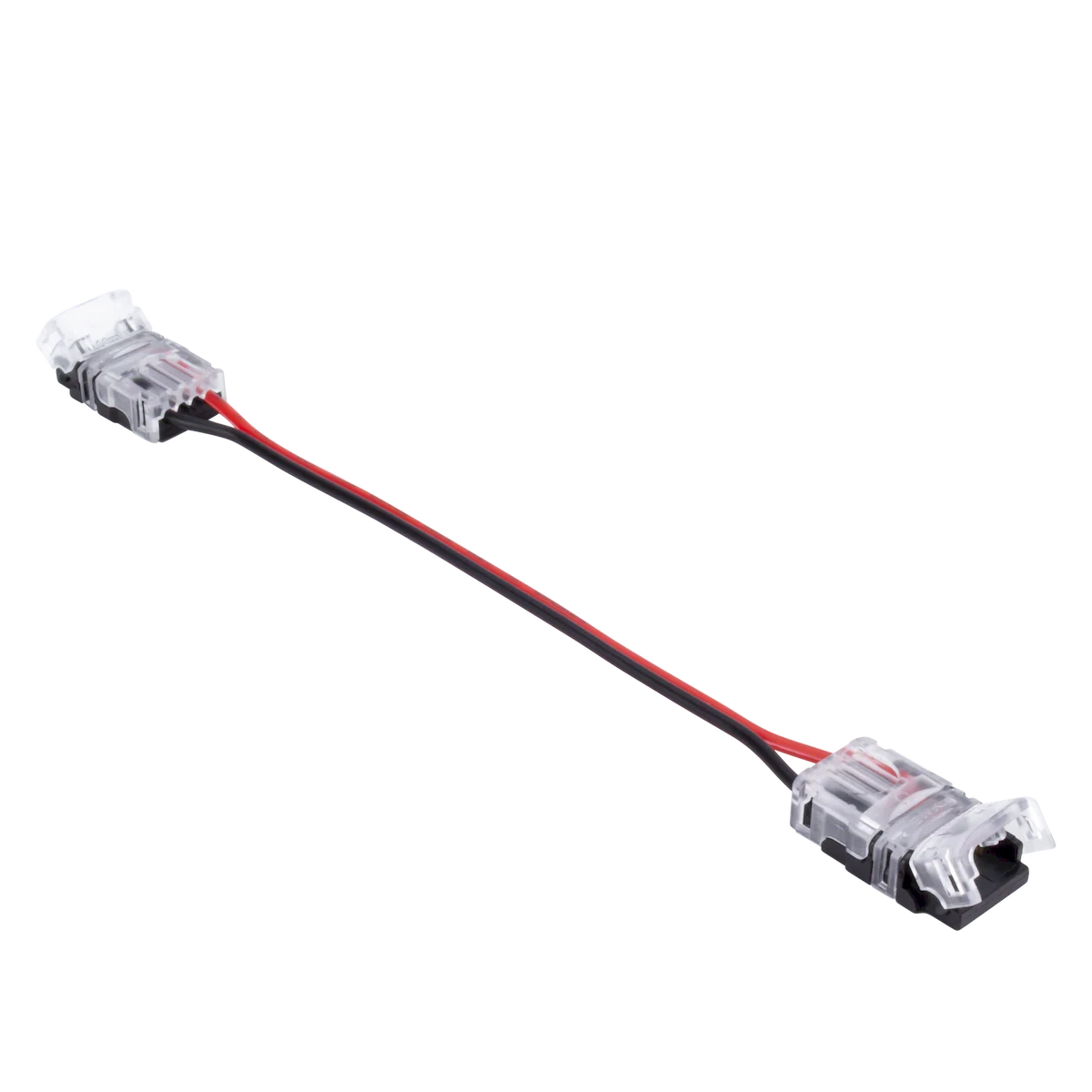

| PLX-TLHD-SC-JUMP-0.5 | 6 Inch | 120V AC | Each |

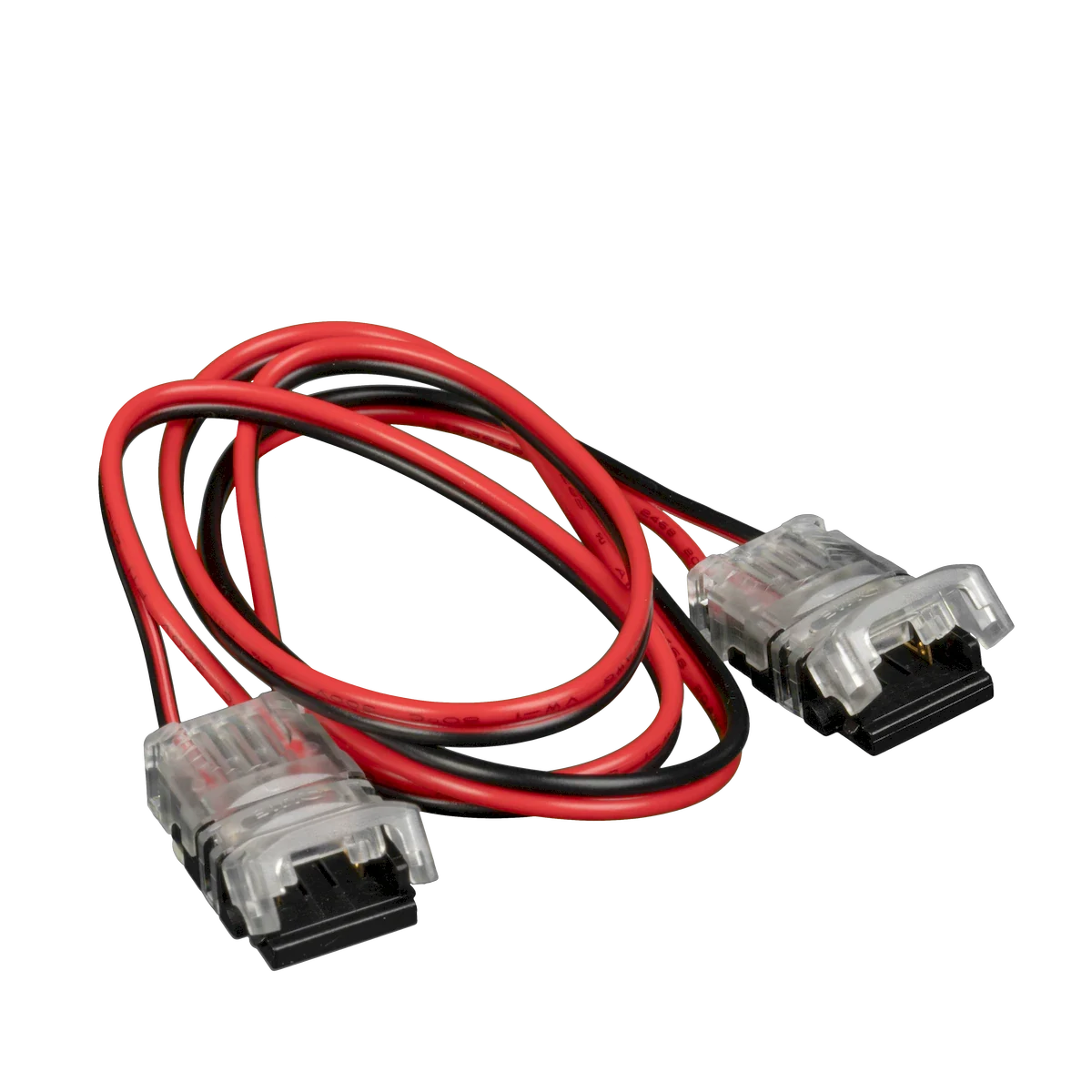

| PLX-TL-HVYDTYACCSRY-SC-JUMP-2 | 2 Foot | Each | |

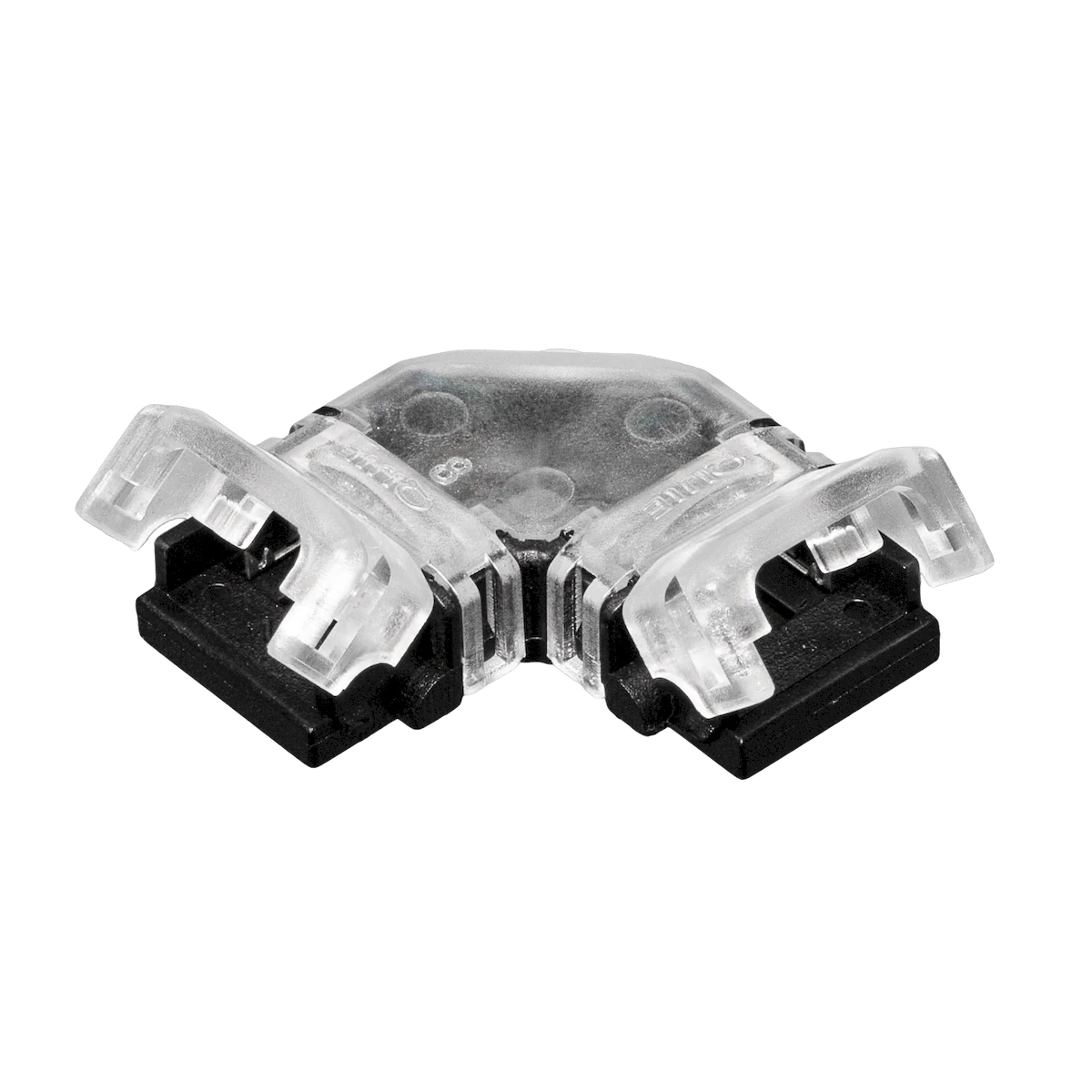

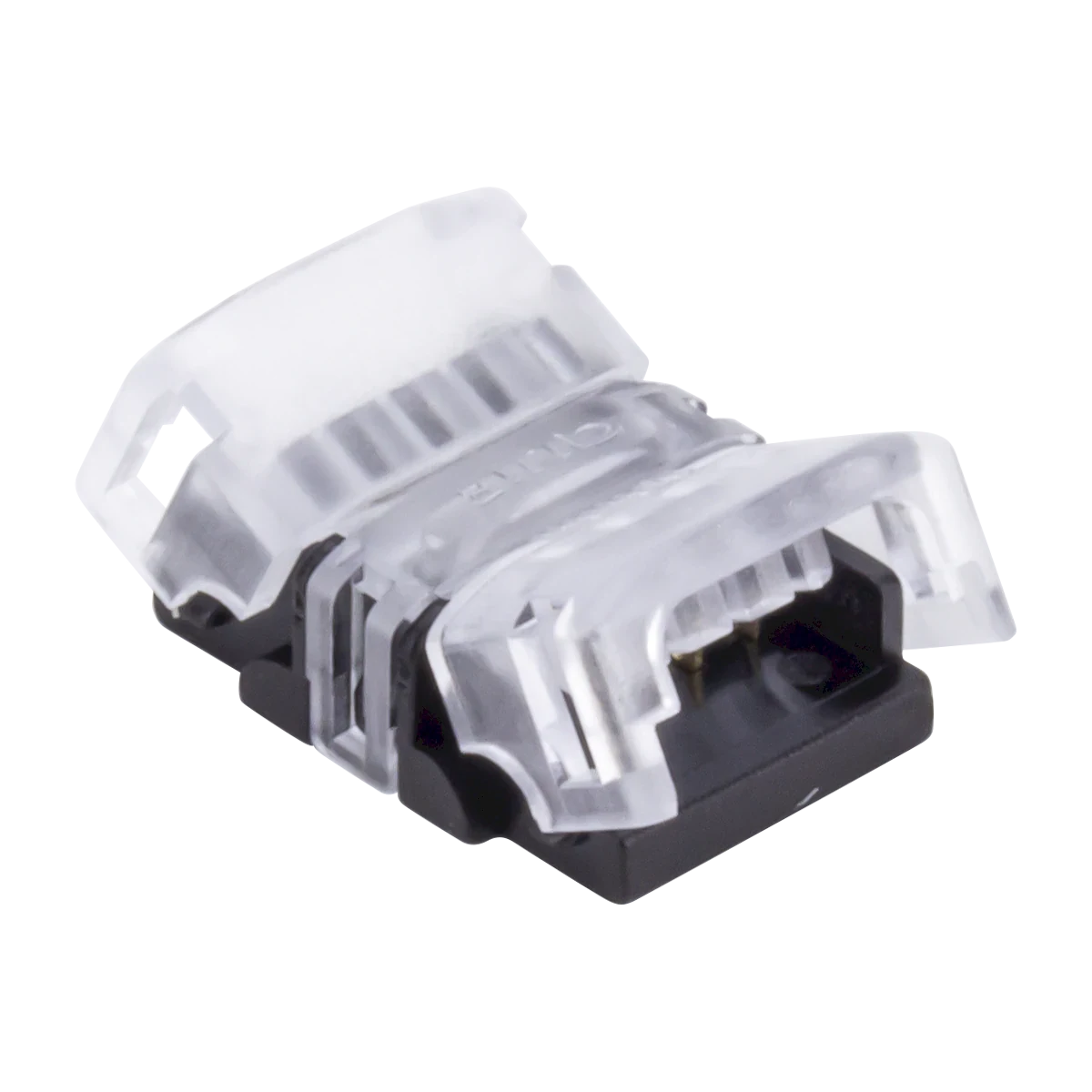

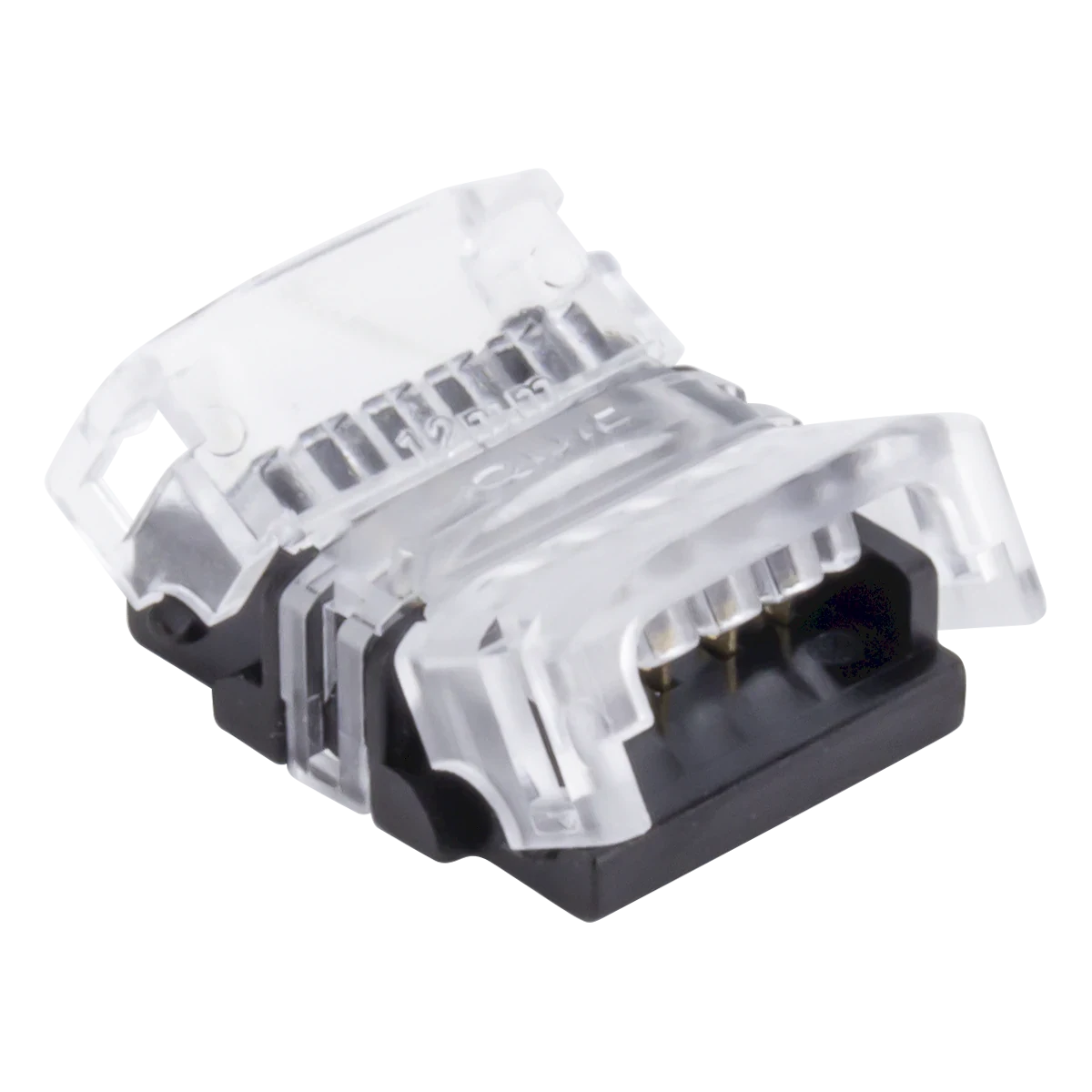

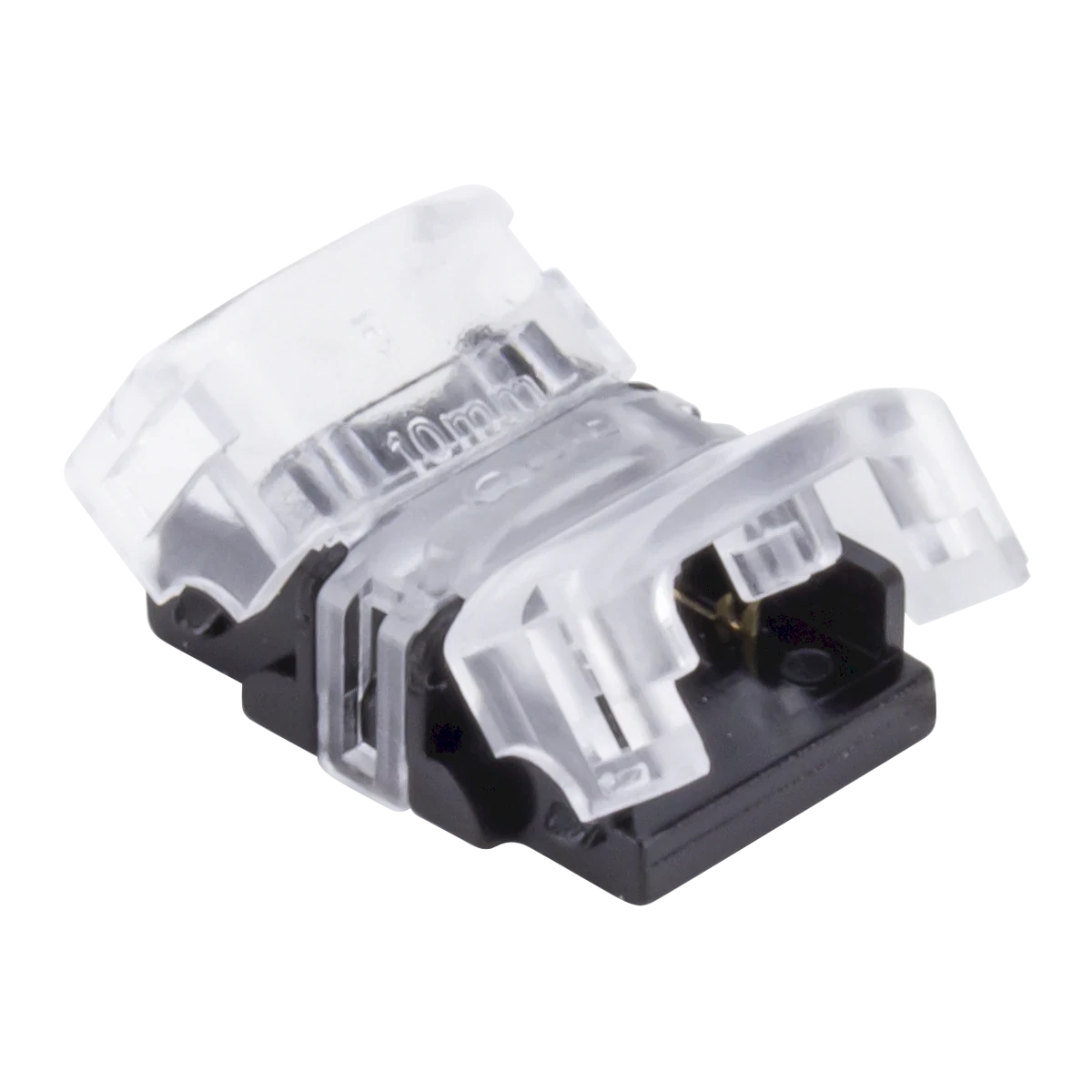

| PLX-TL-HVYDTYACCSRY-SC-SPL | Each | ||
| PLX-TL-HVYDTYACCSRY-SC-CONSNAP | Each | ||

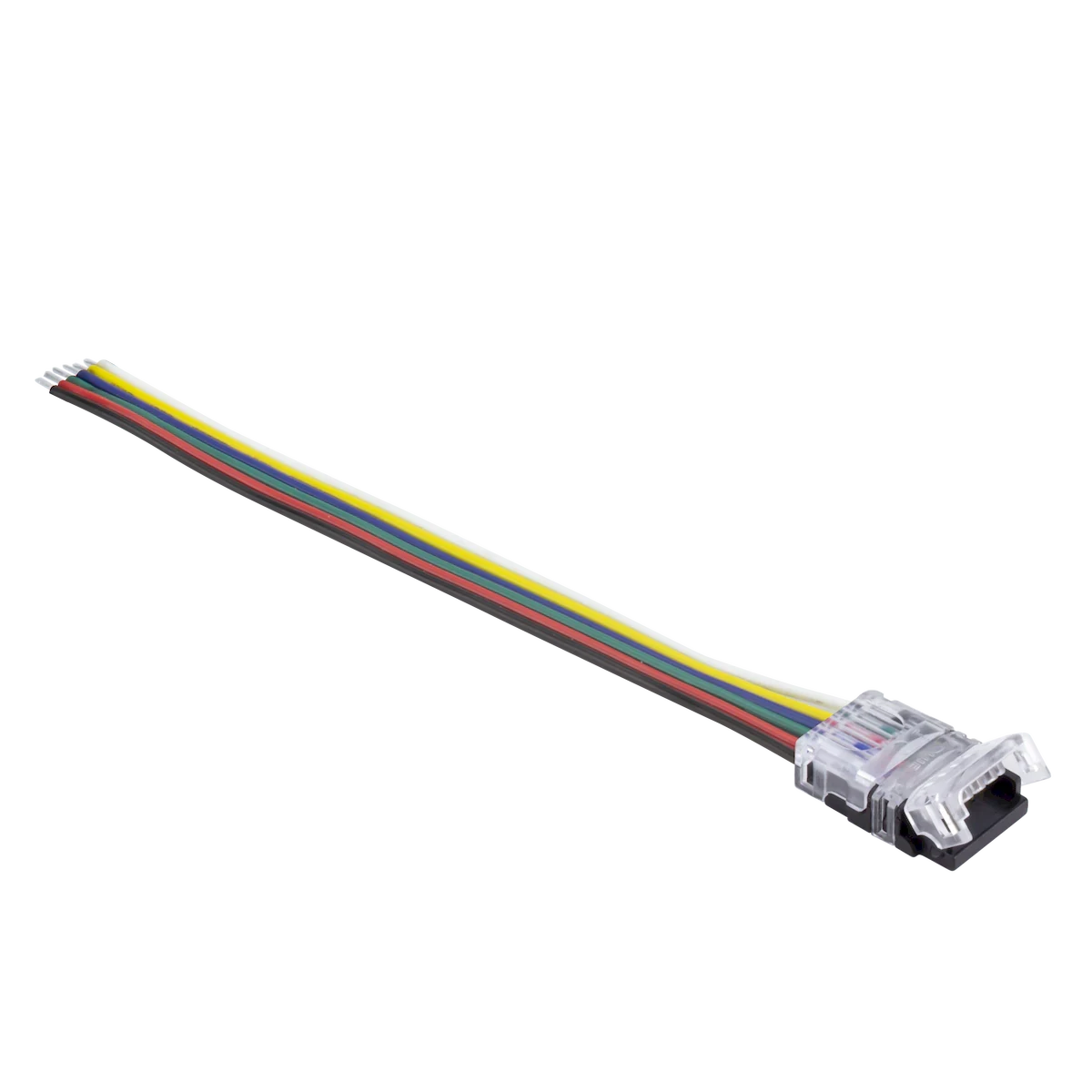

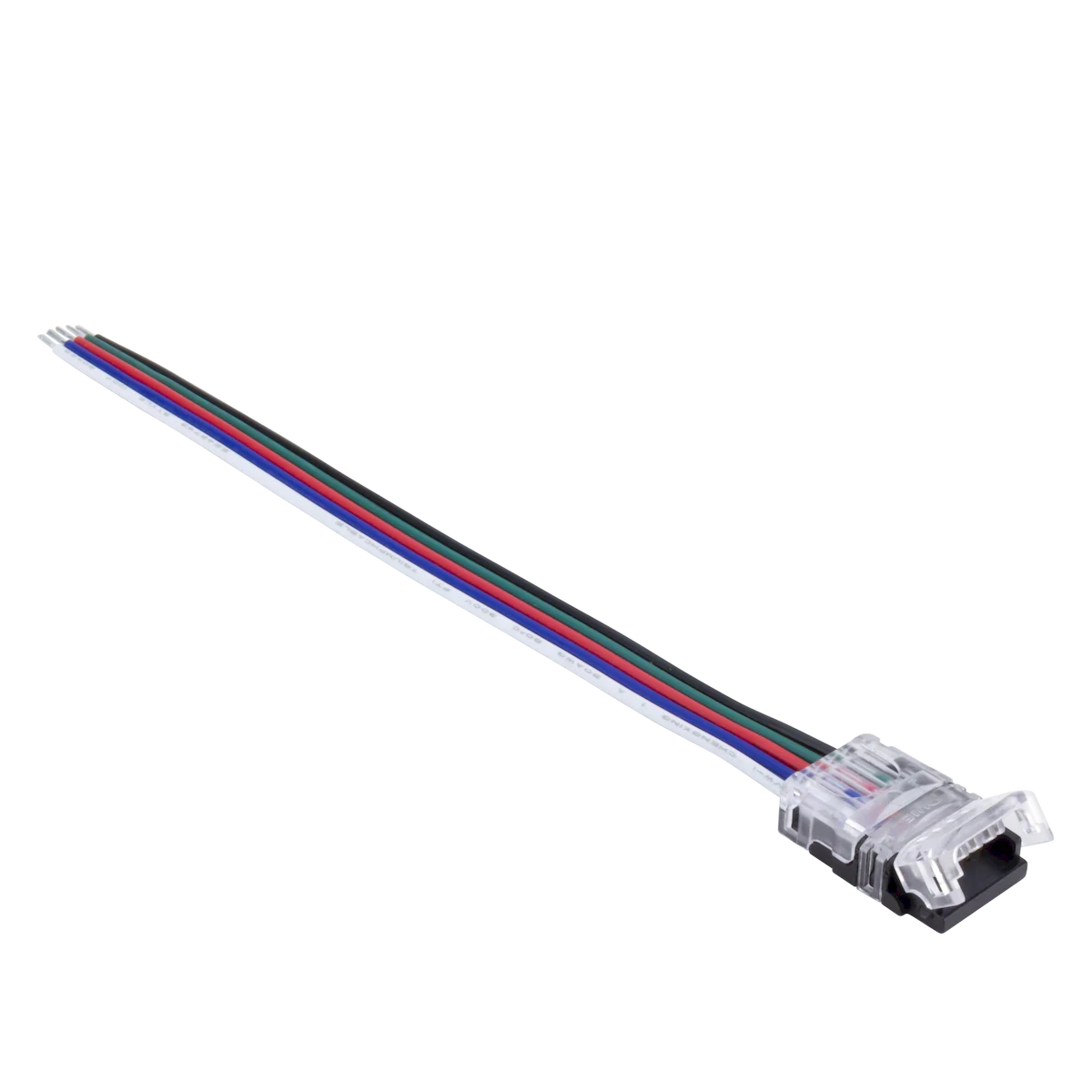

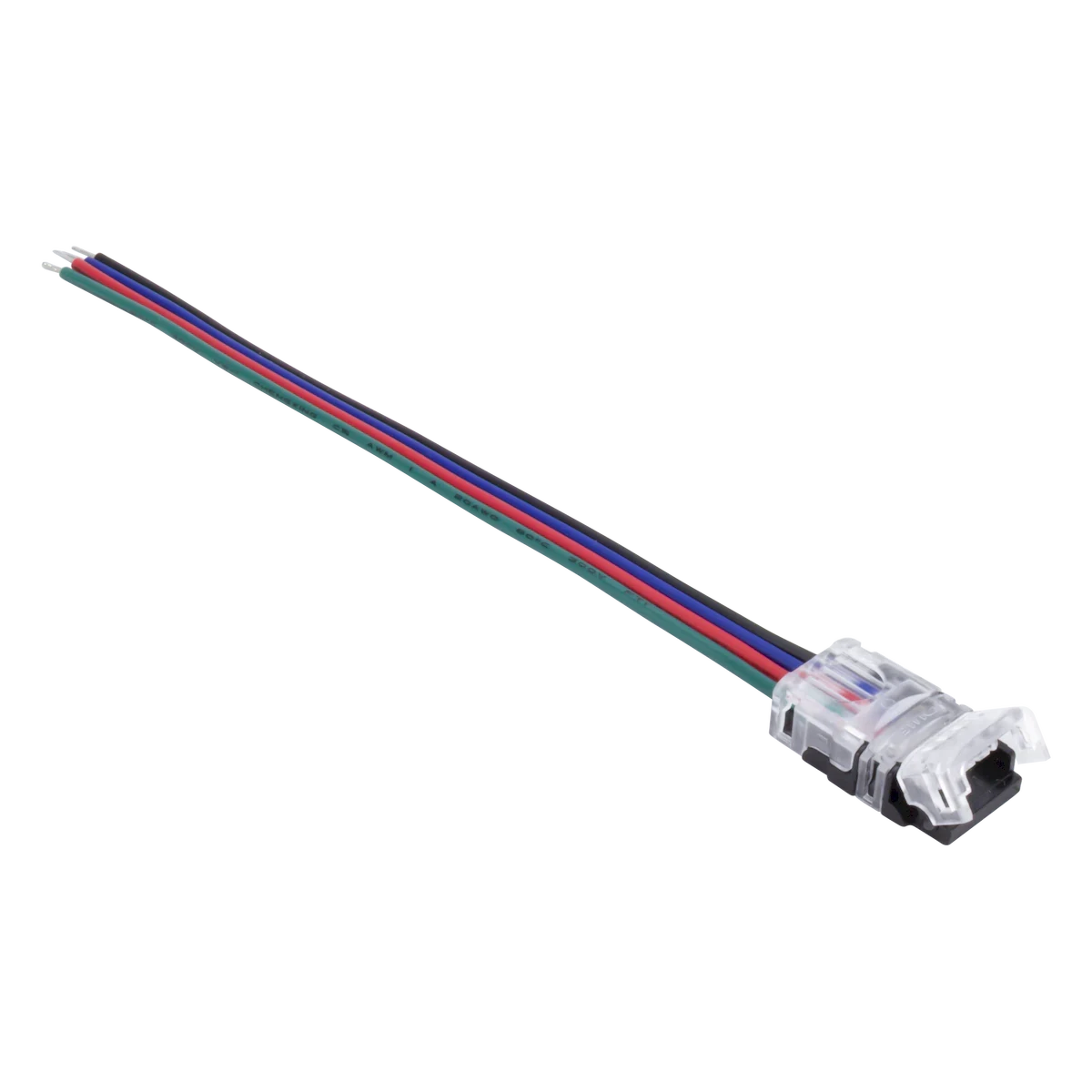

| PLX-TL-HVYDTYACCSRY-RGB-PWR-6 | 6 Foot | Each | |

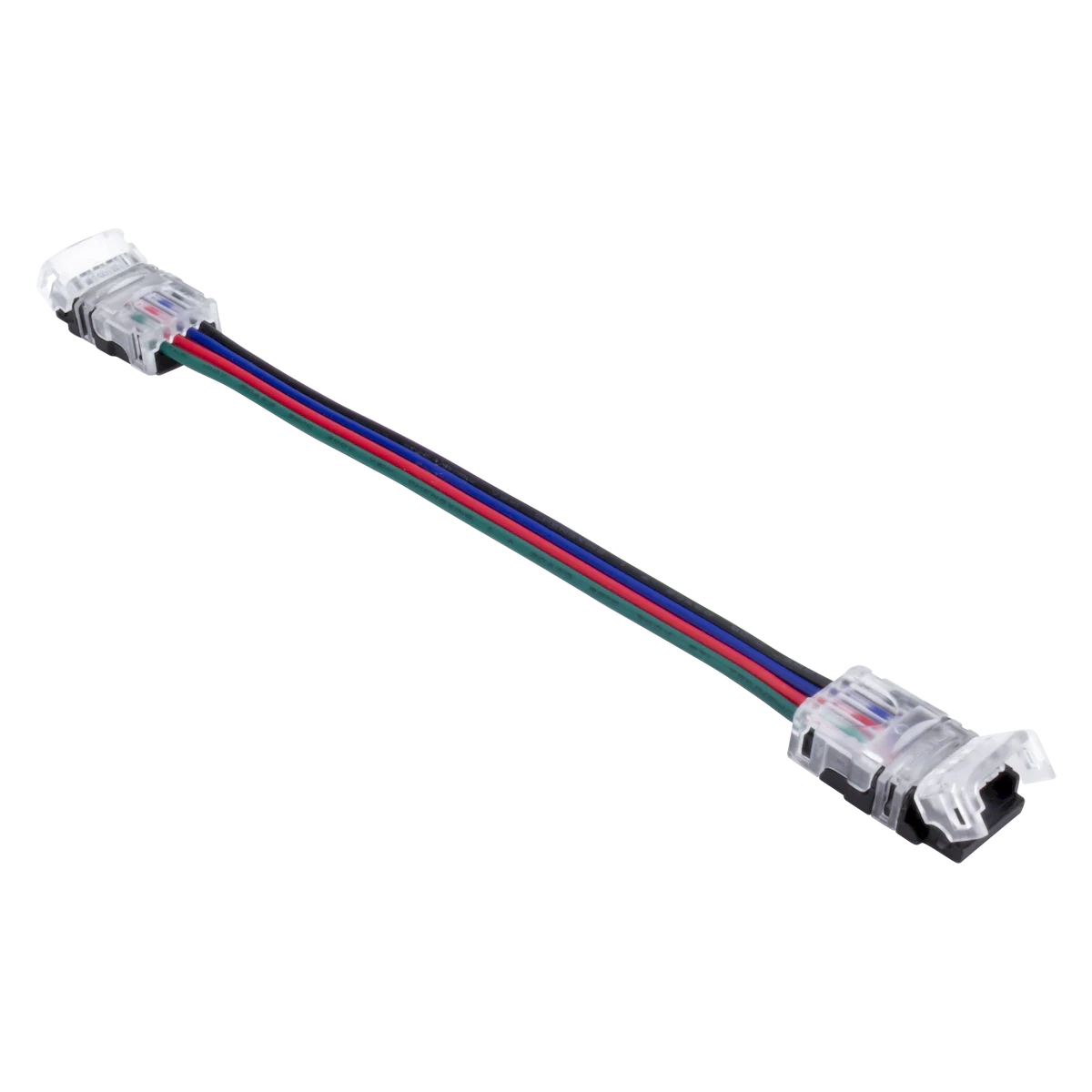

| PLX-TL-HVYDTYACCSRY-RGB-JUMP-0.5 | 6 Inch | Each | |
| PLX-TL-HVYDTYACCSRY-RGB-JUMP-2 | 2 Foot | Each | |
| PLX-TL-HVYDTYACCSRY-RGB-SPL | Each | ||
| PLX-TL-HVYDTYACCSRY-RGB-CONSNAP | Each | ||
| PLX-TL-HVYDTYACCSRY-RGBW-PWR-6 | 6 Foot | Each | |

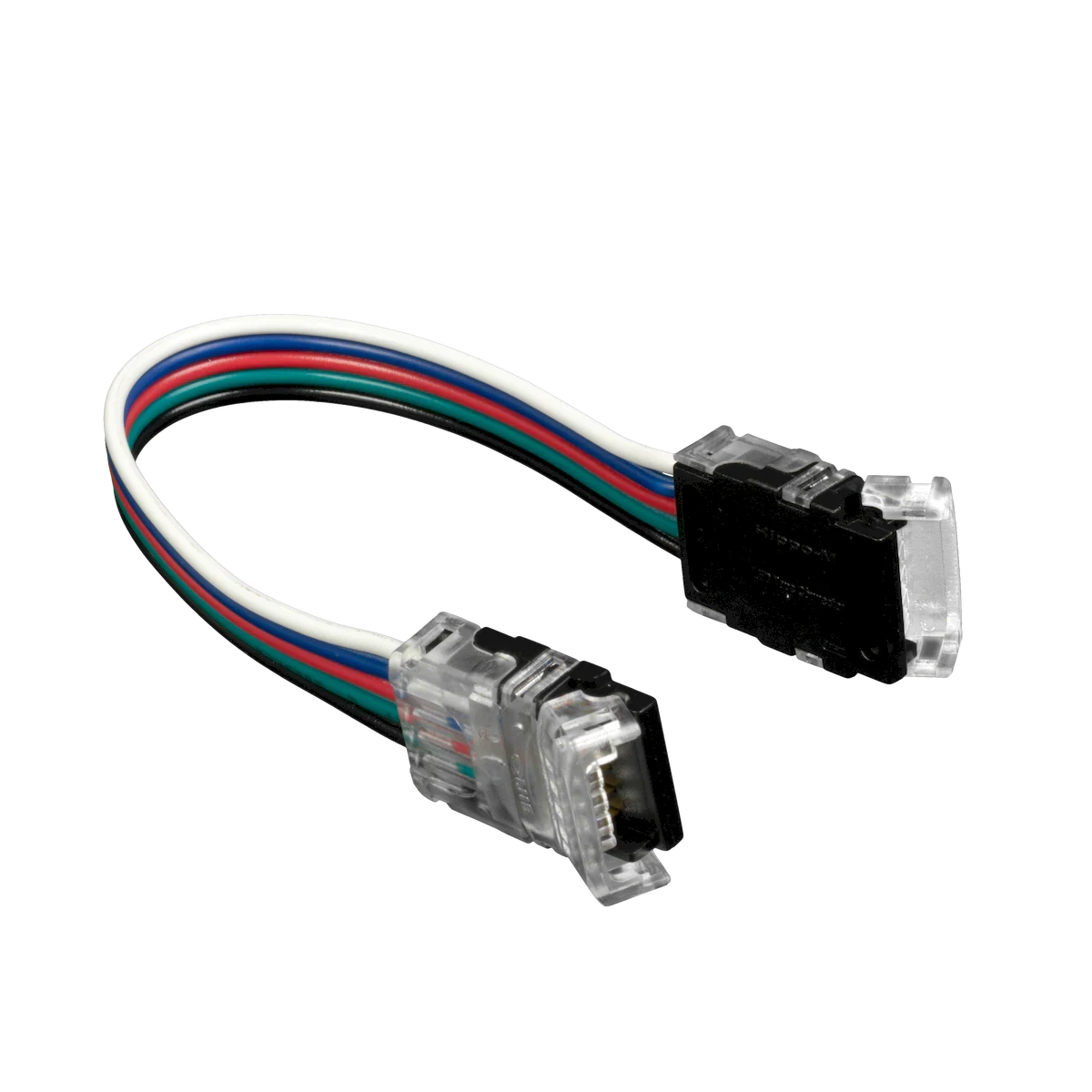

| PLX-TL-HVYDTYACCSRY-RGBW-JUMP-0.5 | 6 Inch | Each | |

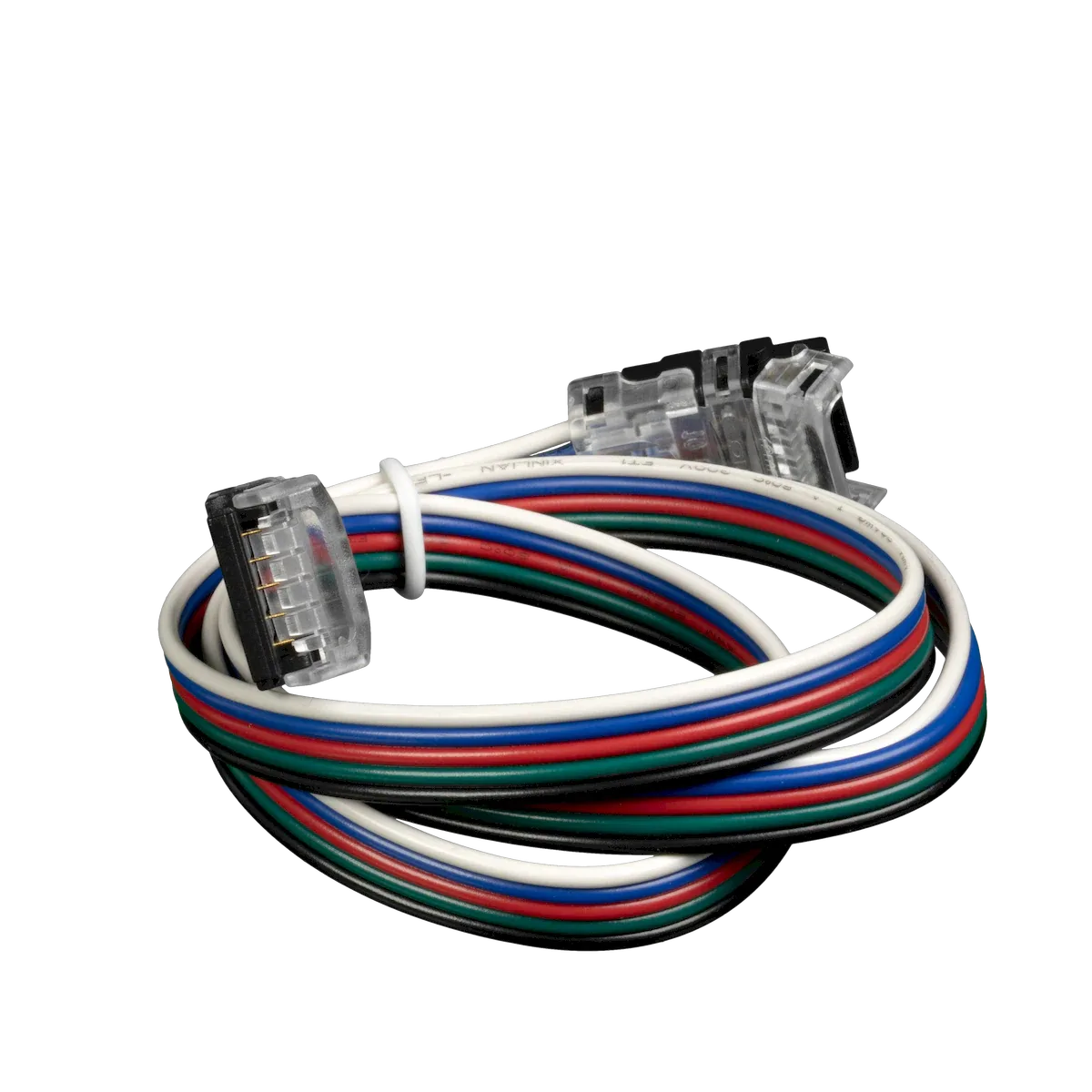

| PLX-TL-HVYDTYACCSRY-RGBW-JUMP-2 | 2 Foot | Each | |
| PLX-TL-HVYDTYACCSRY-RGBW-SPL | Each | ||
| PLX-TL-HVYDTYACCSRY-RGBTW-PWR-6 | 6 Inch | Each | |
| PLX-TL-HVYDTYRGBTW-JUMP-0.5 | 6 Inch | Each | |
| PLX-TL-HVYDTYACCSRY-RGBTW-JUMP-2 | 2 Foot | Each | |
| PLX-TL-HVYDTYACCSRY-RGBTW-SPL | Each |
